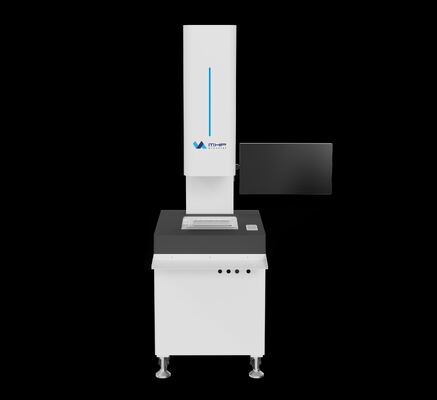

High Definition CCD Flash Measurement Instrument High Precision Fluctuation Resistant
Product Summary
Flash Measurement Instrument - 3D High-Precision Machine with Temperature Fluctuation Resistance Mars Series Vision Measuring Machine The Mars series one-touch measuring instrument embodies the resilience and exploration spirit of its namesake planet. Designed to withstand harsh industrial ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
Mars 190
Trading Properties
MOQ
≥1
unit price
US$18,000.00-22,000.00
payment method
L/C,D/P,T/T,Western Union,Money Gram
Product Details
Highlight:
flash measurement instrument high precision
,temperature resistant flash measurement instrument
,flash measurement machine fluctuation resistance
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Specifications:
640*830*1080
Weight(Kg):
--
Linear Scale Resolution:
0.5um
Lens:
Manual Dented Zoom Lens With Magnification Signal
Measurement Accuracy:
3um
Product Description
Detailed Specifications & Features
Flash Measurement Instrument - 3D High-Precision Machine with Temperature Fluctuation Resistance
Mars Series Vision Measuring Machine
The Mars series one-touch measuring instrument embodies the resilience and exploration spirit of its namesake planet. Designed to withstand harsh industrial environments, this imaging measurement device features a robust marble base and high-precision guide rail construction that maintains measurement accuracy despite workshop vibrations and temperature fluctuations.
Equipped with advanced digital image archiving, ultra-high-definition CCD technology, and optical zoom lenses, the Mars series delivers exceptional clarity for identifying micron-level defects and minute scratches on workpieces. This precision enables manufacturers to transition from experience-based judgment to data-driven decision-making, providing traceable quality data for industrial production.
Technical Specifications
| Item | MARS 100 | MARS 190 |
|---|---|---|
| Dimension (mm) (X/Y/Z) | 540/830/1080 | 640/830/1080 |
| Measuring range (mm) (X/Y/Z) | 200/200/200 | 300/200/200 |
| Measuring accuracy (μm) | 2.5 + L/100 | 2.5 + L/100 |
| Repeatability (μm) | 2.5 | 2.5 |
| Weight (kg) | 140 | 180 |
| CCD | 1.3M pixel digital camera | |
| Lens | Manual dented zoom lens with magnification signal feedback 0.7-4.5X | |
| Magnification | 24.7-160X (Reference value - actual magnification varies with camera and lens combinations) | |
| Field of view | 8.5~1.3mm (Reference value - actual FOV varies with camera and lens combinations) | |
| Working distance (mm) | 80 | |
| Linear scale resolution (μm) | 0.5 | |
| Driving system | X and Y axis manual control, Z axis CNC full closed loop motion control (Including auto focus function) | |
| Illumination | Programmable LED 8 section ring surface light, LED bottom parallel light | |
Product Applications
Aerospace Industry
Automotive Industry
Electronics Industry
About MEAXPERT (MXP)
MEAXPERT (MXP) comprises passionate metrology professionals with over a decade of industry experience. Our mission focuses on developing vision measurement systems that deliver accuracy, reliability, speed, and affordability.
Our Mission
We believe in simplicity and transparency, offering clear pricing and terms for both our vision measurement systems and services. Choosing MEAXPERT means choosing clarity and efficiency without lengthy negotiations.
Commitment to Quality
While perfection may be unattainable, we pursue it relentlessly. Our quality commitment begins with rigorous material inspections before production, continues with stringent process control during manufacturing, and concludes with thorough reliability testing and precise calibration before shipment.
Innovation and Development
We maintain significant investment in technology research and development through dedicated software and hardware teams. Our hardware undergoes continuous improvement via weekly R&D meetings to enhance stability, efficiency, and usability. Our software development focuses on specialized modules tailored to specific industry needs, simplifying vision measurement system applications and addressing industry talent shortages.
