Darco's High Precision 3D Optical Metrology System Gantry Design for Semiconductors

Product Summary

Darco High-Precision 3D Optical Metrology System MXP coordinate measuring machines deliver the precise, rapid measurements essential for quality assurance in demanding industrial applications. Our CMM systems provide accurate 3D measurements for both contact and non-contact inspection needs, ...

Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
DARCO
Trading Properties
MOQ
≥1
unit price
US$51,000.00-87,000.00
payment method
L/C,D/P,T/T,Western Union,Money Gram
Tags:

Bridge Type CMM Machine

Bridge CMM Machine

Bridge Type CMM
Product Details
Highlight:

gantry design optical metrology system

,

semiconductor 3D Optical Metrology System

,

Optical Metrology System for Semiconductors
After-Sales Service: Online Service
Warranty Period: 12 Months
Mode Of Operation: CNC
OEM: Support
Lens: Manual Dented Zoom Lens 0.7-4.5X (Optional Manual
Driving System: X/Y/Z Axis Auto Control
Product Description
Detailed Specifications & Features
Darco High-Precision 3D Optical Metrology System

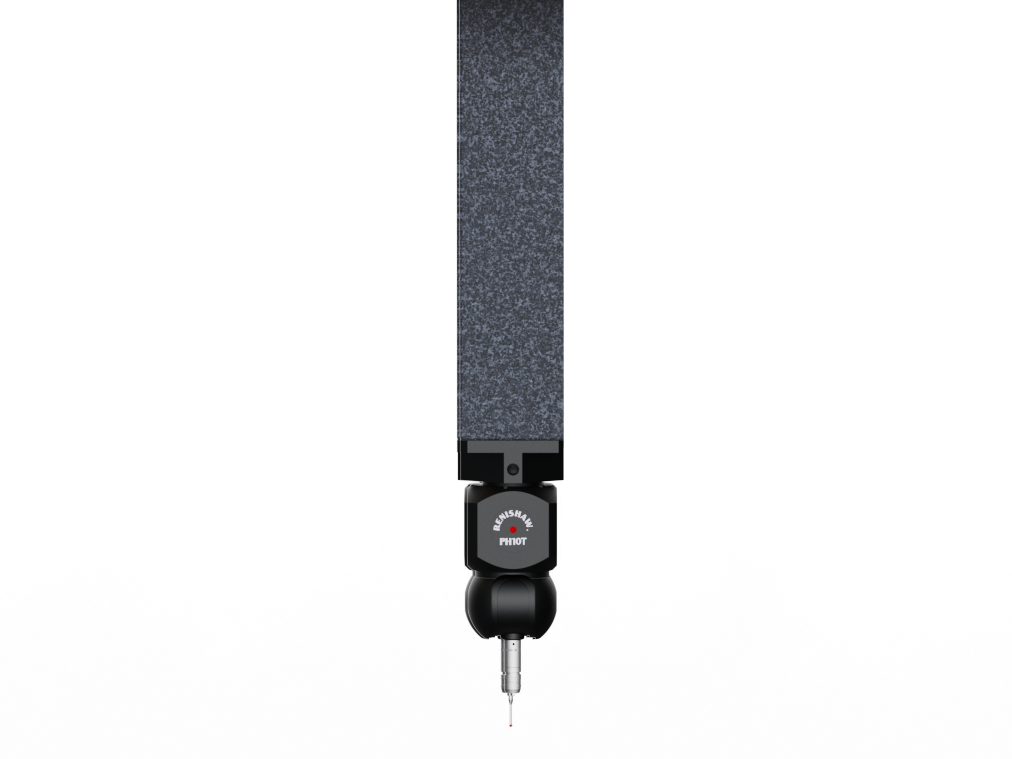

MXP coordinate measuring machines deliver the precise, rapid measurements essential for quality assurance in demanding industrial applications. Our CMM systems provide accurate 3D measurements for both contact and non-contact inspection needs, utilizing advanced probes to collect comprehensive workpiece data. Sophisticated measurement software then analyzes this data, making these systems ideal for automotive, aerospace, and semiconductor industries.
Darco's High Precision 3D Optical Metrology System Gantry Design for Semiconductors 0 Darco's High Precision 3D Optical Metrology System Gantry Design for Semiconductors 1 Darco's High Precision 3D Optical Metrology System Gantry Design for Semiconductors 2
Technical Specifications
Model CARINA URSA DARCO
565 | 686 | 8106 | 10158 | 121510 | 153010 | 8106 | 10158 | 121510
Accuracy PH10M+TP20 MPEe (um): 1.7+L/333
MPEp (um): 2.5		 MPEe (um): 1.8+L/333
MPEp (um): 2.5		 MPEe (um): 1.8+L/333
MPEp (um): 2.7
Accuracy PH10M+SP25 MPEe (um): 1.5+L/333
MPEp (um): 1.5		 MPEe (um): 1.5+L/333
MPEp (um): 1.5		 MPEe (um): 1.9+L/333
MPEp (um): 1.9
Accuracy PH20+TP20 MPEe (um): 1.7+L/333
MPEp (um): 2.5		 MPEe (um): 1.8+L/333
MPEp (um): 2.5		 MPEe (um): 1.8+L/333
MPEp (um): 2.7
Accuracy MH20i MPEe (um): 1.7+L/333
MPEp (um): 2.5		 MPEe (um): 1.8+L/333
MPEp (um): 2.5		 MPEe (um): 1.8+L/333
MPEp (um): 2.7
Accuracy REVO RSP-2 MPEe (um): 1.5+L/333
MPEp (um): 1.5		 MPEe (um): 1.5+L/333
MPEp (um): 1.5		 MPEe (um): 1.9+L/333
MPEp (um): 1.9
Accuracy REVO RSP-3 MPEe (um): 1.5+L/333
MPEp (um): 1.5		 MPEe (um): 1.5+L/333
MPEp (um): 1.5		 MPEe (um): 1.9+L/333
MPEp (um): 1.9
Max part loading 900~1500 2000~3000 1200~3000
Industry Applications
Darco's High Precision 3D Optical Metrology System Gantry Design for Semiconductors 3 Darco's High Precision 3D Optical Metrology System Gantry Design for Semiconductors 4 Darco's High Precision 3D Optical Metrology System Gantry Design for Semiconductors 5
  • Aerospace Industry: Precision measurement of critical components and assemblies
  • Automotive Industry: Quality assurance for manufacturing and assembly processes
  • Electronics Industry: High-accuracy inspection of miniature components and PCBs
Frequently Asked Questions
How much time do you need to prepare the quotation for our order?
Each order has its own unique timeline. Typically, we need approximately 3-4 business days to prepare your quotation.
Are you a manufacturer or a trading company?
We have our own factory, which is an integrated industrial and trading establishment. Our MXP has over 15 years of industry experience and is committed to providing customers with the best solutions and purchasing experience.
Can I customize the logo and packaging?
Yes, we can customize products based on your design and packaging requirements. Please send your detailed requirements to us.
May I have a sample?
Due to the unique nature of products like VMM and CMM, we are unable to provide samples. You can learn more about product details by contacting our sales representative.
About MEAXPERT (MXP)
MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry, each bringing over a decade of experience. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.
Our Mission
At MEAXPERT, we believe in simplicity and transparency. Our goal is to offer clear pricing and terms for both our vision measurement systems and services, eliminating the need for lengthy negotiations. When you choose Meaxpert, you choose clarity and efficiency.
Innovation and Development
We heavily invest in technology research and development, supported by dedicated software and hardware teams. Our hardware is constantly improved through weekly R&D meetings, enhancing stability, efficiency, and ease of use. On the software side, we focus on developing specialized modules tailored to the unique needs of various sub-industries, simplifying vision measurement system applications.
Commitment to Quality
Perfection is our pursuit, even though perfection itself may be unattainable. We pay meticulous attention to every detail, from surface finishing to individual components. Our commitment to quality starts with rigorous material inspections before production, stringent process control during manufacturing, thorough reliability testing, and precise calibration before shipment.
