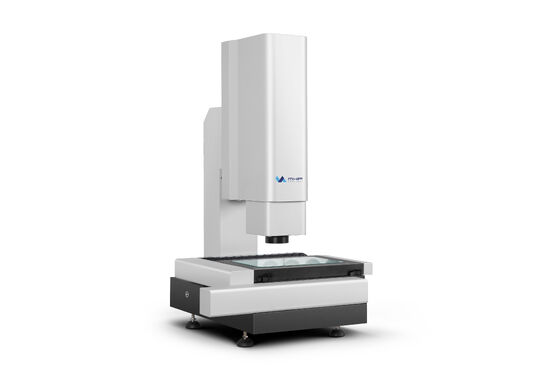

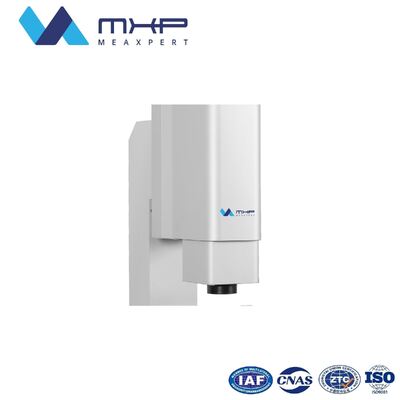

Fully Auto 2D Image Measuring Machine CNC Vision Measuring System High Accuracy
Product Summary
Fully Automatic 2D Image Measuring Machine - Uranus Series The URANUS series CNC automatic Vision Measurement Machine from MEAXPERT delivers exceptional measuring performance with advanced hardware configuration and precision engineering. Advanced Vision Measurement Technology The URANUS series ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
URANUS 322
Trading Properties
MOQ
≥1
unit price
US$8,700.00-9,500.00
payment method
L/C,D/P,Western Union,T/T,Money Gram
Product Details
Highlight:
fully automatic 2D image measuring machine
,high accuracy cnc vision measuring system
,cnc 2D image measuring equipment
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Weight(Kg):
140 180
Measuring Range(Mm)(X/Y/Z):
200/200/200 300/200/200
Lens:
1～10X Automatic Zoom Lens
Measurement Accuracy:
2.5+L/200
Product Description
Detailed Specifications & Features
Fully Automatic 2D Image Measuring Machine - Uranus Series
The URANUS series CNC automatic Vision Measurement Machine from MEAXPERT delivers exceptional measuring performance with advanced hardware configuration and precision engineering.
Advanced Vision Measurement Technology
The URANUS series features high-accuracy components including GIGA high-resolution digital cameras, 3-axis linear scales with 0.0005mm resolution, ensuring stable hardware dynamic performance and superior measuring accuracy.
Technical Specifications
| Item | UR-2 | UR-3 | UR-4 |
|---|---|---|---|
| Dimension (mm) (L/W/H) | 540/830/1080 | 640/830/1080 | 740/980/1080 |
| Measuring range (mm) (X/Y/Z) | 200/200/200 | 300/200/200 | 400/300/200 |
| Measuring accuracy (μm) | 2.5+L/100 | 2.5+L/100 | 2.5+L/100 |
| Repeatability (μm) | 2.5 | 2.5 | 2.5 |
| Weight (kg) | 140 | 180 | 230 |
Core Components
- CCD: 1.3M pixel digital camera
- Lens: Manual zoom objective lens 1-10X (optional electronic magnification signal feedback lens)
- Magnification: 24.7 ~ 160X (Reference value - actual magnification varies with camera and lens combinations)
- Field of view: 8.5 ~ 1.3mm (Reference value - actual FOV varies with camera and lens combinations)
- Working distance: 80mm
- Linear scale resolution: 0.5μm
- Driving system: CNC control, close-loop AC servo driving system, joystick, mouse or keyboard control
- Illumination: Programmable LED 8 section ring surface light, LED bottom parallel light
Industry Applications
The URANUS series vision measuring machines serve critical measurement needs across multiple industries with precision and reliability.
- Aerospace Industry
- Automotive Industry
- Electronics Industry
About MEAXPERT (MXP)
MEAXPERT (MXP) comprises passionate metrology professionals with over a decade of industry experience, dedicated to developing accurate, reliable, fast, and affordable vision measurement systems.
Our Mission
We believe in simplicity and transparency, offering clear pricing and terms for both our vision measurement systems and services. Choosing MEAXPERT means choosing clarity and efficiency without lengthy negotiations.
Innovation and Development
Our substantial investment in technology R&D is supported by dedicated software and hardware teams. Weekly R&D meetings drive continuous hardware improvements for enhanced stability, efficiency, and usability. Our software development focuses on specialized modules tailored to unique sub-industry needs, simplifying vision measurement applications and addressing industry talent shortages.
Commitment to Quality
While perfection may be unattainable, it remains our pursuit. We meticulously attend to every detail from surface finishing to individual components. Our quality commitment begins with rigorous material inspections before production, stringent process control during manufacturing, thorough reliability testing, and precise calibration before shipment.
