Name: Semi Automatic VMM Vision Measuring Machine Easy Use For Precision Manufacturing
Brand: Unimetro Precision Machinery Co., Ltd
SKU: NEPTUNE 432
Price: 2.00 USD
Availability: InStock

Home Products Vision Measuring Machine

Semi Automatic VMM Vision Measuring Machine Easy Use For Precision Manufacturing

Product Details:

Place of Origin:	China
Brand Name:	MEAXPERT
Model Number:	NEPTUNE 432

Payment & Shipping Terms:

Minimum Order Quantity:	≥1
Price:	US$4,500.00-5,000.00
Packaging Details:	Wooden Case
Delivery Time:	30days
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram

Contact Now

Detailed Product Description

After-sales Service:	Online Service	Warranty Period:	12 Months
Mode Of Operation:	CNC	Weight(Kg):	--
Measuring Range(mm)(X/Y/Z):	--	OEM:	--
Lens:	--	Driving System:	CMM
Measurement Accuracy:	VMM
Highlight:	Vision Measuring Machine Semi Automatic , Easy Use Vision Measuring Machine

Factory Price High-Performance Semi-Automatic Visual Measuring Machine

Meaxpert Neptune Series - Advanced vision measurement solutions for precision manufacturing

Semi-Auto Vision Measuring Machine

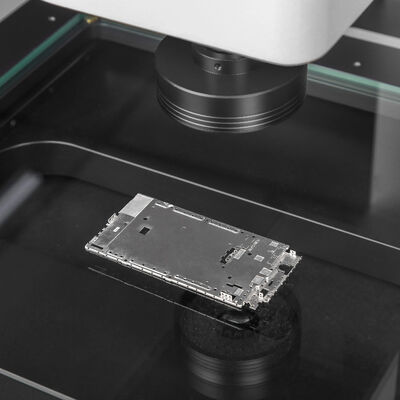

The NEPTUNE series semi-auto vision measurement machine delivers enhanced measuring capabilities and superior user experience compared to standard vision measuring products. Featuring a servo motor in the Z axis with manual pulse generator for precise positioning and adjustment, along with auto focus functionality, this system significantly improves measurement process efficiency and provides exceptional end-user experience.

Technical Specifications

Item	NE-2	NE-3	NE-4
Dimension (mm) (X/Y/Z)	540/550/930	600/670/980	725/855/980
Measuring range (mm) (X/Y/Z)	200/100/150	300/200/200	400/300/200
Measuring accuracy (μm)	2.5 + L/100	2.5 + L/100	2.5 + L/100
Repeatability (μm)	2.5	2.5	2.5
Weight (kg)	150	200	255
CCD	Industrial color CCD camera
Lens	Manual dented zoom lens with magnification signal feedback 0.7-4.5X
Magnification	18-195X (Reference value; actual magnification varies with camera and lens combinations)
Field of view	8.1~1.3mm (Reference value; actual FOV varies with camera and lens combinations)
Working distance (mm)	80
Linear scale resolution (μm)	0.5 (0.1um optional)
Driving system	X and Y axis manual control, Z axis CNC full closed loop motion control (Including auto focus function)
Illumination	Programmable LED 8-zone ring surface light, LED bottom parallel light (optional: 8-zone ring light, coaxial light)

Product Applications

Aerospace Industry
Automotive Industry
Electronics Industry

Frequently Asked Questions

How much time do you need to prepare the quotation for our order?

Each order has its own unique timeline. Typically, we may need approximately 3-4 business days to prepare your quotation.

Are you a manufacturer or a trading company?

We have our own factory, which is an integrated industrial and trading establishment. Our MXP has over 15 years of industry experience and is committed to providing our customers with the best solutions and purchasing experience.

Can I customize the logo and packaging?

Yes, we can customize products based on your design and packaging requirements. Please send your detailed requirements to us.

May I have a sample?

Sorry, dear customer. Due to the unique nature of products like VMM and CMM, we are unable to provide samples. You can further learn about the product details by contacting our sales representative.

How long is your production cycle?

The production cycle for each product is different. If you need further clarification, send me the product link, and I will reply as soon as possible.

Company Profile

Who is MXP?
MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.

At MXP, we pride ourselves on meeting the highest industry standards. Each certification reflects our dedication to excellence in manufacturing, ensuring that our vision measuring machines, cutting tools inspection equipment, instant measurement systems, and accessories consistently meet and exceed customer expectations. Our adherence to these rigorous standards guarantees reliability and superior performance in every product we deliver.

Our Mission
At MEAXPERT, we believe in simplicity and transparency. Our goal is to offer clear pricing and terms for both our vision measurement systems and services, eliminating the need for lengthy negotiations. When you choose Meaxpert, you choose clarity and efficiency.

Commitment to Quality
Perfection is our pursuit, even though perfection itself may be unattainable. We pay meticulous attention to every detail, from surface finishing to individual components. Our commitment to quality starts with rigorous material inspections before production, stringent process control during manufacturing, thorough reliability testing, and precise calibration before shipment.

Innovation and Development
We heavily invest in technology research and development, supported by our dedicated software and hardware teams. Our hardware is constantly improved through weekly R&D meetings, enhancing its stability, efficiency, and ease of use. On the software side, we focus on developing specialized modules tailored to the unique needs of various sub-industries, simplifying vision measurement system applications and addressing the industry's talent shortage.
