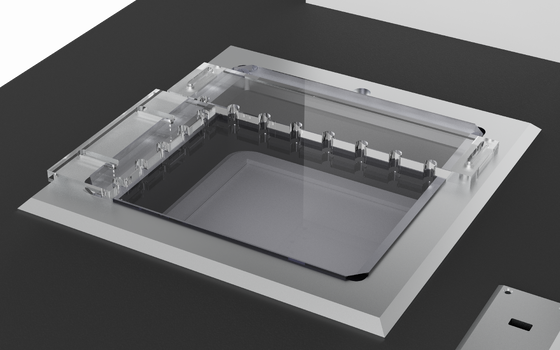

One Touch CNC Vision Measuring Machine With High Precision Guide Rail Design
Product Summary
Mars Video Measuring Machine - CNC Vision Measuring Machine for 2D/3D Integrated Measurement Mars Series Vision Measuring Machine The Mars series one-touch measuring instrument draws inspiration from the planet's harsh environment—dust storms, extreme cold, and high radiation—embodying the spirit of ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
Mars 190
Trading Properties
MOQ
≥1
unit price
US$18,000.00-22,000.00
payment method
L/C,D/P,T/T,Western Union,MoneyGram
Product Details
Highlight:
One Touch CNC Vision Measuring Machine
,Precision Guide Rail Vision Measuring Machine
,Precision CCD Video Measuring Machine
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Specifications:
640*830*1080
Weight(Kg):
--
Linear Scale Resolution:
0.5um
Lens:
Manual Dented Zoom Lens With Magnification Signal
Measurement Accuracy:
3um
Product Description
Detailed Specifications & Features
Mars Video Measuring Machine - CNC Vision Measuring Machine for 2D/3D Integrated Measurement
Mars Series Vision Measuring Machine
The Mars series one-touch measuring instrument draws inspiration from the planet's harsh environment—dust storms, extreme cold, and high radiation—embodying the spirit of tenacious exploration. This resilience aligns perfectly with the demanding reliability requirements of industrial imaging measurement applications.
Featuring a robust marble base and high-precision guide rail design, the Mars series withstands workshop vibrations and temperature fluctuations to maintain exceptional measurement accuracy. Equipped with digital image archiving, ultra-high-definition CCD, and optical zoom lens, the system clearly identifies micron-level defects and minute scratches on workpieces, providing traceable quality data for industrial production.
This advanced system empowers manufacturing operations to transition from "experience-based judgment" to "data-driven decision-making," earning its reputation as the "Mars rover of the industrial world."
Technical Specifications
| Item | MARS 100 | MARS 190 |
|---|---|---|
| Dimension (mm) (X/Y/Z) | 540/830/1080 | 640/830/1080 |
| Measuring range (mm) (X/Y/Z) | 200/200/200 | 300/200/200 |
| Measuring accuracy (μm) | 2.5 + L/100 | 2.5 + L/100 |
| Repeatability (μm) | 2.5 | 2.5 |
| Weight (kg) | 140 | 180 |
Additional Specifications
- CCD: 1.3M pixel digital camera
- Lens: Manual dented zoom lens with magnification signal feedback 0.7-4.5X
- Magnification: 24.7-160X (Reference value - actual magnification varies with camera and lens combinations)
- Field of view: 8.5~1.3mm (Reference value - actual FOV varies with camera and lens combinations)
- Working distance: 80mm
- Linear scale resolution: 0.5μm
- Driving system: X and Y axis manual control, Z axis CNC full closed loop motion control (including auto focus function)
- Illumination: Programmable LED 8 section ring surface light, LED bottom parallel light
Product Applications
- Aerospace Industry
- Automotive Industry
- Electronics Industry
About MEAXPERT (MXP)
Our Company
MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry, each bringing over a decade of experience to the table. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.
Our Mission
At MEAXPERT, we believe in simplicity and transparency. Our goal is to offer clear pricing and terms for both our vision measurement systems and services, eliminating the need for lengthy negotiations. When you choose Meaxpert, you choose clarity and efficiency.
Commitment to Quality
Perfection is our pursuit, even though perfection itself may be unattainable. We pay meticulous attention to every detail, from surface finishing to individual components. Our commitment to quality starts with rigorous material inspections before production, stringent process control during manufacturing, thorough reliability testing, and precise calibration before shipment.
Innovation and Development
We heavily invest in technology research and development, supported by our dedicated software and hardware teams. Our hardware is constantly improved through weekly R&D meetings, enhancing its stability, efficiency, and ease of use. On the software side, we focus on developing specialized modules tailored to the unique needs of various sub-industries, simplifying vision measurement system applications and addressing the industry's talent shortage.
