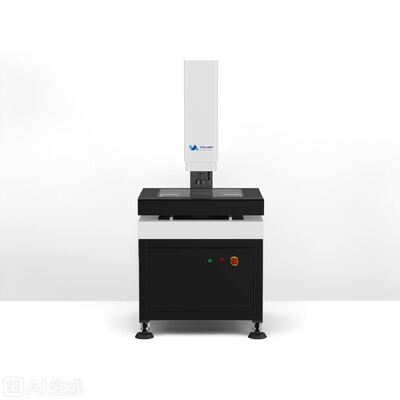

Fully Automatic 3D CNC Vision Measuring Machine for Auto Parts Inspection
Product Summary
CNC Optical Coordinate Measuring Machine (MERCURY Series) High-performance fully automatic vision measuring system for precision auto parts inspection and quality control. Fully Automatic Vision Measuring Machine The Mercury Series represents a high-performance, fully automatic marble-based ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
ME-3
Trading Properties
MOQ
≥1
unit price
US$11,000.00
payment method
L/C,D/P,Western Union,T/T,MoneyGram
Product Details
Highlight:
Fully Automatic Vision Measuring Machine
,High Precision CNC Vision Measuring Machine
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Weight(Kg):
400
CCD:
1.3m Pixel HD Giga Digital Camera (Optional 5m Pix
Lens:
Fully Automatic Zoom Objective 0.7-4.5X
Linear Scale Resolution:
0.5um
Repeatabilty(Um):
2.5um
Product Description
Detailed Specifications & Features
CNC Optical Coordinate Measuring Machine (MERCURY Series)
High-performance fully automatic vision measuring system for precision auto parts inspection and quality control.
Fully Automatic Vision Measuring Machine
The Mercury Series represents a high-performance, fully automatic marble-based coordinate measuring machine with enhanced resolution and accelerated processing speeds. This advanced system enables comprehensive three-axis fully automatic programmable inspection through precise workpiece coordinate system matching and automated measurement execution.
- Memory, learning, and automatic programming capabilities for repetitive workpieces
- Rapid and accurate real-time on-site measurements
- Marble construction providing exceptional stability, durability, and low maintenance
- Optimal balance of precision, efficiency, and long-term reliability
- Core quality control solution for high-volume manufacturing of complex precision components
Technical Specifications
| Item | ME-3 | ME-4 | ME-5 | ME-6 |
|---|---|---|---|---|
| Dimension (mm) (L/W/H) | 650/950/1740 | 730/1070/1740 | 790/1130/1760 | 890/1370/1780 |
| Measuring range (mm) (X/Y/Z) | 300/200/200 | 400/300/200 | 500/400/200 | 600/500/200 |
| Measuring accuracy (μm) | 2 + L/100 | 2 + L/100 | 2.5 + L/100 | 2.5 + L/100 |
| Repeatability (μm) | 2 | 2 | 2.5 | 2.5 |
| Weight (kg) | 400 | 500 | 600 | 700 |
Additional Specifications
- CCD: 1.3M pixel digital camera
- Lens: Auto-zoom Lens 1~10X
- Magnification: 18~195X (varies by camera model)
- Field of view: 8.5 ~ 1.3mm (reference value)
- Working distance: 80mm
- Linear scale resolution: 0.5μm (0.1μm optional)
- Driving system: CNC control with high-precision motor servo drive; Handle, mouse/keyboard control
- Illumination: Programmable LED 8-section ring surface light, LED bottom parallel light
Industry Applications
- Aerospace Industry
- Automotive Industry
- Electronics Industry
About MEAXPERT (MXP)
MEAXPERT (MXP) comprises passionate metrology professionals with over a decade of industry experience, dedicated to developing accurate, reliable, fast, and affordable vision measurement systems.
Our Mission
We believe in simplicity and transparency, offering clear pricing and terms for vision measurement systems and services without lengthy negotiations. Choosing Meaxpert means choosing clarity and efficiency.
Innovation and Development
Substantial investment in technology R&D supported by dedicated software and hardware teams. Continuous hardware improvements through weekly R&D meetings enhance stability, efficiency, and usability. Software development focuses on specialized modules for various sub-industries, simplifying applications and addressing industry talent shortages.
Commitment to Quality
Pursuing perfection through meticulous attention to detail from surface finishing to individual components. Quality commitment includes rigorous material inspections, stringent process control, thorough reliability testing, and precise calibration before shipment.
