VENUS Floor-Mounted Optical Metrology Platform for Large-Area, High-Accuracy Seamless Stitching
Product Summary
VENUS Floor-Mounted Optical Metrology Platform High-precision floor-standing system for automated large-scale stitching measurement of oversized workpieces with seamless data fusion. Advanced Stitching Vision Measurement Technology The VENUS Series utilizes multi-CCD synchronization with dual-lens ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
VENUS
Trading Properties
MOQ
≥1
unit price
US$18,000.00-22,000.00
payment method
L/C,D/P,T/T,Western Union,MoneyGram
Product Details
Highlight:
floor-mounted optical metrology platform
,large-area vision measuring machine
,high-accuracy seamless stitching machine
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Specifications(Mm):
1000 X 1320 X 1790
Weight(Kg):
610
Lens:
Dual Telecentric Large-FOV Optical Lens + 0.7-4.5X Fully Automatic Zoom Lens
Measurement Accuracy:
Large-FOV Measurement: ≤ 3 µm Zoom Lens (High Mag) Measurement: ≤ 2.5 µm Stitched Image Measurement: ≤ 3 µm
Measuring Range(Mm)(X/Y/Z):
600 X 400 X 200
Product Description
Detailed Specifications & Features

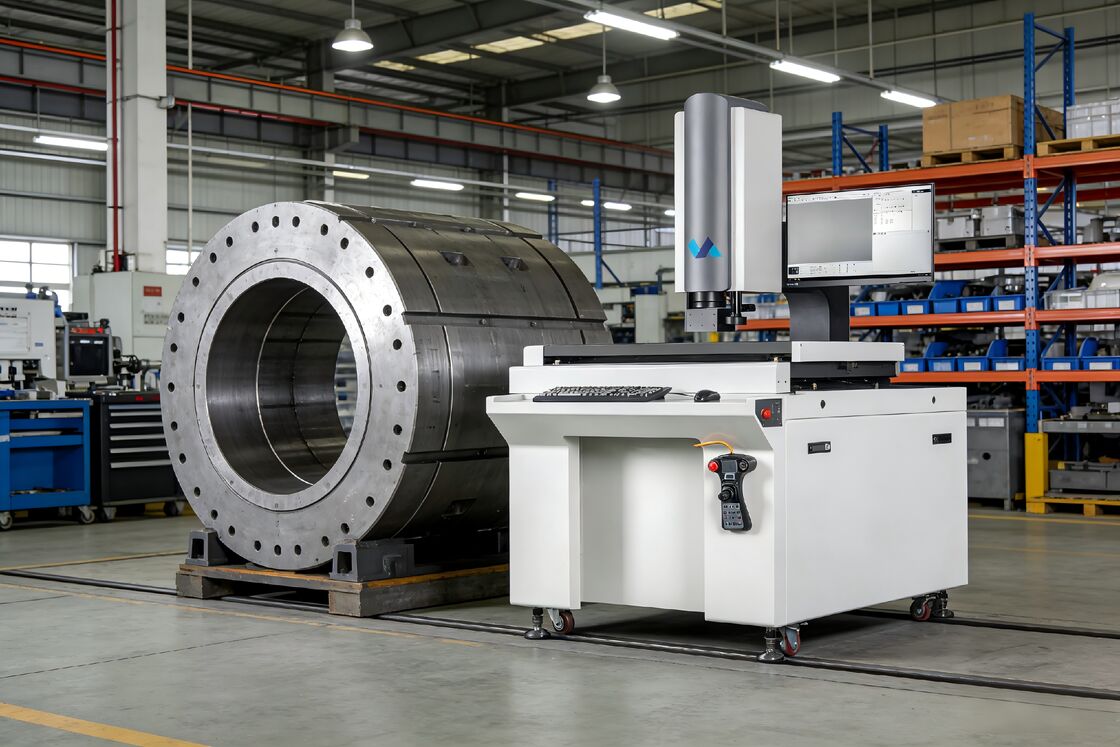

VENUS Floor-Mounted Optical Metrology Platform
High-precision floor-standing system for automated large-scale stitching measurement of oversized workpieces with seamless data fusion.
Advanced Stitching Vision Measurement Technology
The VENUS Series utilizes multi-CCD synchronization with dual-lens configurations to capture and precisely stitch localized images from different workpiece regions. This creates complete, coherent measurement profiles without visible seams, eliminating measurement blind spots common with traditional single-field systems.
Technical Specifications
| Specification | VENUS 500 |
|---|---|
| Measuring Range (X*Y*Z) (mm) | 600 x 400 x 200 |
| Effective Range (X*Y*Z) (mm) | 500 x 400 x 200 |
| Overall Dimensions (X*Y*Z) (mm) | 1000 x 1320 x 1790 |
| Weight (kg) | 610 |
| Stage Movement | Fully automatic |
| Optical Lens Configuration | Dual Telecentric Large-FOV Optical Lens + 0.7-4.5X Fully Automatic Zoom Lens |
| Field of View (FOV) | Large FOV: 4mm x 4mm Auto-Focus Zoom Lens FOV Range: ~0.5mm x 0.5mm to ~1.3mm x 1.3mm |
| Image Sensor | Large-FOV Lens: HIKVISION 20 Megapixel Digital Camera Zoom Lens: HIKVISION 1.3 Megapixel Digital Camera |
| Measurement Accuracy | Large-FOV Measurement: ≤ 3 µm Zoom Lens (High Mag) Measurement: ≤ 2.5 µm Stitched Image Measurement: ≤ 3 µm |
| System Measurement Accuracy | ≤ 3 µm |
| Surface Light Source | For Large-FOV Lens: Coaxial LED Light. Optional: LED Ring Light. For Auto-Focus Zoom Lens: Optional Coaxial Light or 8-Segment LED Ring Light. |
| Contour Light Source | Dome Light / Flat LED Light |
| Software | FlashPro Ultra-High-Speed Inspection Vision Software |
Industry Applications
Aerospace Industry
Automotive Industry
Electronics Industry
About MEAXPERT (MXP)
MEAXPERT (MXP) is a collective of passionate metrology professionals with over a decade of industry experience, dedicated to developing accurate, reliable, fast, and affordable vision measurement systems.
Our Commitment to Simplicity and Transparency
We believe in straightforward business practices with clear pricing and terms for both our vision measurement systems and services.
Innovation and Development
We heavily invest in technology R&D with dedicated software and hardware teams. Our hardware undergoes continuous improvement through weekly R&D meetings, while our software development focuses on specialized modules tailored to unique industry needs.
Quality Commitment
We pursue perfection through meticulous attention to detail, from surface finishing to individual components. Our quality assurance process includes rigorous material inspections, stringent manufacturing controls, thorough reliability testing, and precise calibration before shipment.
