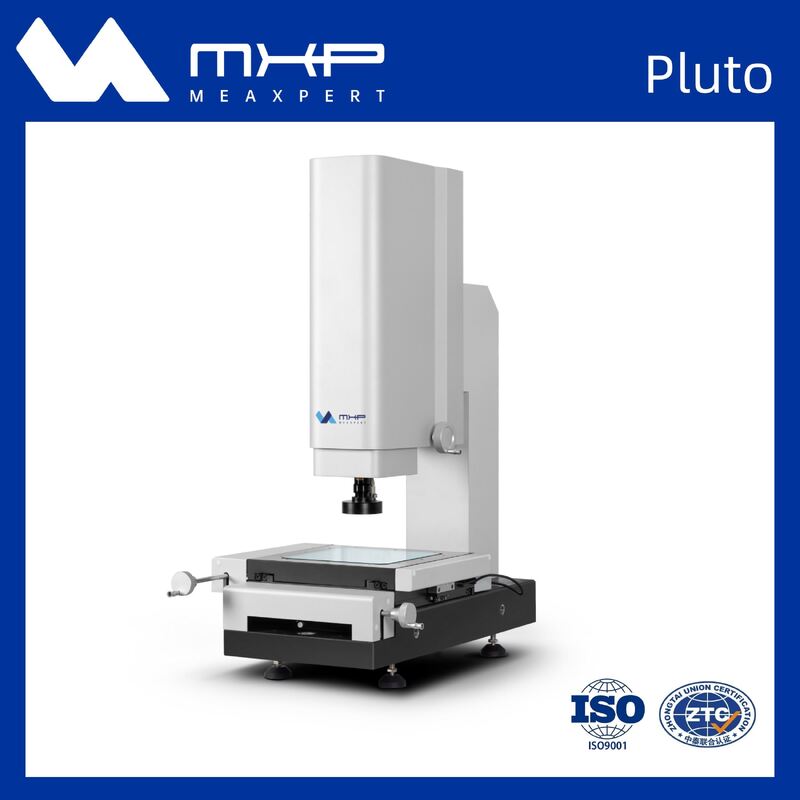

MXP PLUTO Series Manual Vision Measurement System for Factory Applications

Product Details:

Place of Origin:	China
Brand Name:	MEAXPERT
Model Number:	PL-4
Document:	Pluto.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	≥1
Price:	US$4,700.00-5,300.00
Packaging Details:	Wooden Case
Delivery Time:	30days
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram

Contact Now

Detailed Product Description

After-sales Service:	Online Service	Warranty Period:	12 Months
Mode Of Operation:	CNC	Weight(Kg):	255
Measuring Range(mm)(X/Y/Z):	400300200	Linear Scale Resolution:	0.5
Lens:	Manual Dented Zoom Lens 0.7-4.5X (Optional Manual	Measurement Accuracy:	2.5+L/100
Highlight:	MXP PLUTO manual vision measurement system , optical CMM machine for factory applications , PLUTO Series vision measurement system

MXP PLUTO Series Manual Vision Measurement System

Factory-direct CNC 2D visual measurement machine with EXW delivery, designed specifically for workshop environments with exceptional precision and user experience.

Key Features

High accuracy linear guideways for superior dynamic performance
3-axis 0.0005mm high resolution linear transducers
Powerful programmable measuring software
Combined 2D and 3D measuring capabilities in one machine
Automatic calculation of optical lens and touch probe offset
Unified coordinate system for all measurement results
3D drawing output for reverse engineering applications

Technical Specifications

Item	PL-2	PL-3	PL-4
Dimension (mm) (X/Y/Z)	540/540/860	665/670/915	724/855/915
Measuring range (mm) (X/Y/Z)	200/100/150	300/200/200	400/300/200
Measuring accuracy (μm)	2.5 + L/100	2.5 + L/100	2.5 + L/100
Repeatability (μm)	2.5	2.5	2.5
Weight (kg)	150	200	255

Imaging System Specifications

Image and Measuring: 1.3M pixel digital camera
Lens: Manual dented zoom lens 0.7-4.5X
Magnification: 18-195X (Reference value, actual varies with camera/lens combination)
Field of View: 8.1~1.3mm (Reference value, actual varies with camera/lens combination)
Working Distance: 80mm
Linear Scale Resolution: 0.5μm
Driving System: X and Y axis manual control
Illumination: Programmable LED 8 section ring surface light, LED bottom parallel light (Optional coaxial light)

Product Applications

Aerospace Industry

Automotive Industry

Electronics Industry

About MEAXPERT (MXP)

MEAXPERT (MXP) comprises passionate metrology professionals with over a decade of industry experience, dedicated to developing accurate, reliable, fast, and affordable vision measurement systems.

Our Mission

We believe in simplicity and transparency, offering clear pricing and terms for both our vision measurement systems and services to eliminate lengthy negotiations and provide clarity and efficiency.

Innovation and Development

Our dedicated software and hardware teams drive continuous improvement through weekly R&D meetings, enhancing system stability, efficiency, and usability while developing specialized modules for various sub-industries.

Commitment to Quality

We pursue perfection through meticulous attention to detail, from surface finishing to individual components, with rigorous material inspections, stringent process control, thorough reliability testing, and precise calibration before shipment.
