Factory-Ready Manual Vision Measuring Machine – MXP PLUTO Series
Product Summary
Factory-Ready Manual Vision Measuring Machine – MXP PLUTO Series Factory-direct CNC 2D visual measurement machine with EXW delivery. The MXP Pluto Series semi-automatic vision measuring machine delivers exceptional precision and user experience with high-accuracy linear guideways and powerful ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
PL-4
Trading Properties
MOQ
≥1
unit price
US$4,500.00-5,200.00
payment method
L/C,D/P,T/T,Western Union,MoneyGram
Product Details
Highlight:
manual vision measuring machine
,CNC image measuring instrument with warranty
,MXP PLUTO measuring machine
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Weight(Kg):
255
Measuring Range(Mm)(X/Y/Z):
400*300*200
Linear Scale Resolution:
0.5
Lens:
Manual Dented Zoom Lens 0.7-4.5X (Optional Manual
Measurement Accuracy:
2.5+L/100
Product Description
Detailed Specifications & Features
Factory-Ready Manual Vision Measuring Machine – MXP PLUTO Series

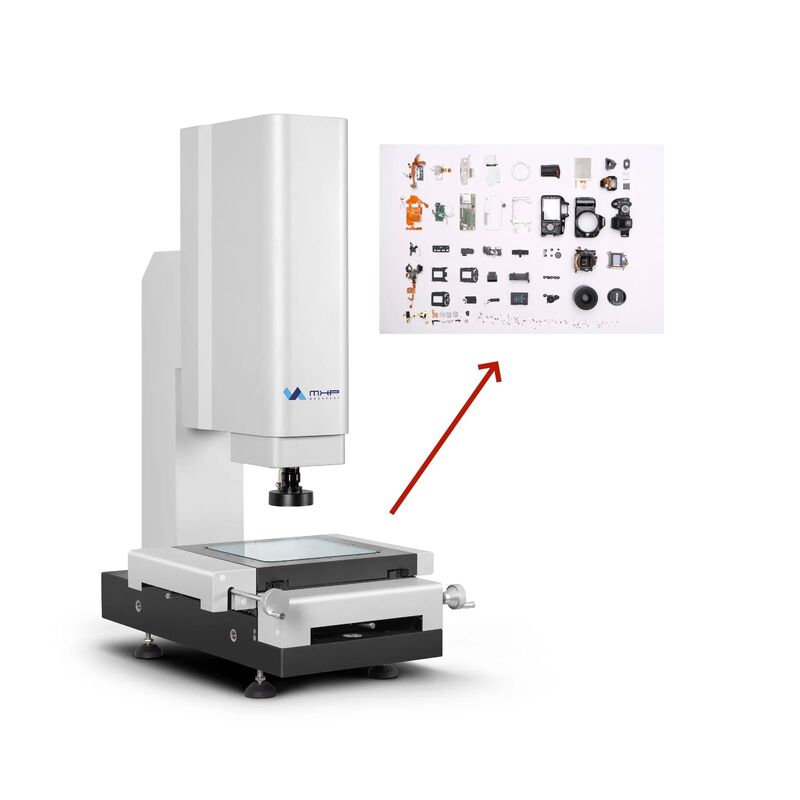

Factory-direct CNC 2D visual measurement machine with EXW delivery. The MXP Pluto Series semi-automatic vision measuring machine delivers exceptional precision and user experience with high-accuracy linear guideways and powerful programmable measuring software, specifically designed for workshop environments.
Key Features
- High accuracy linear guideways for superior dynamic performance
- 3-axis 0.0005mm high resolution linear transducers
- Powerful programmable measuring software
- Combined 2D and 3D measuring capabilities in one machine
- Automatic calculation of optical lens and touch probe offset
- Unified coordinate system for all measurement results
- 3D drawing output for reverse engineering applications
Technical Specifications
| Item | PL-2 | PL-3 | PL-4 |
|---|---|---|---|
| Dimension (mm) (X/Y/Z) | 540/540/860 | 665/670/915 | 724/855/915 |
| Measuring range (mm) (X/Y/Z) | 200/100/150 | 300/200/200 | 400/300/200 |
| Measuring accuracy (μm) | 2.5 + L/100 | 2.5 + L/100 | 2.5 + L/100 |
| Repeatability (μm) | 2.5 | 2.5 | 2.5 |
| Weight (kg) | 150 | 200 | 255 |
Imaging System Specifications
- Image and Measuring: 1.3M pixel digital camera
- Lens: Manual dented zoom lens 0.7-4.5X
- Magnification: 18-195X (Reference value, actual varies with camera/lens combination)
- Field of View: 8.1~1.3mm (Reference value, actual varies with camera/lens combination)
- Working Distance: 80mm
- Linear Scale Resolution: 0.5μm
- Driving System: X and Y axis manual control
- Illumination: Programmable LED 8 section ring surface light, LED bottom parallel light (Optional coaxial light)
Product Applications
Aerospace Industry
Automotive Industry
Electronics Industry
About MEAXPERT (MXP)
MEAXPERT (MXP) comprises passionate metrology professionals with over a decade of industry experience, dedicated to developing accurate, reliable, fast, and affordable vision measurement systems.
Our Mission
We believe in simplicity and transparency, offering clear pricing and terms for both our vision measurement systems and services to eliminate lengthy negotiations and provide clarity and efficiency.
Innovation and Development
Our dedicated software and hardware teams drive continuous improvement through weekly R&D meetings, enhancing system stability, efficiency, and usability while developing specialized modules for various sub-industries.
Commitment to Quality
We pursue perfection through meticulous attention to detail, from surface finishing to individual components, with rigorous material inspections, stringent process control, thorough reliability testing, and precise calibration before shipment.
