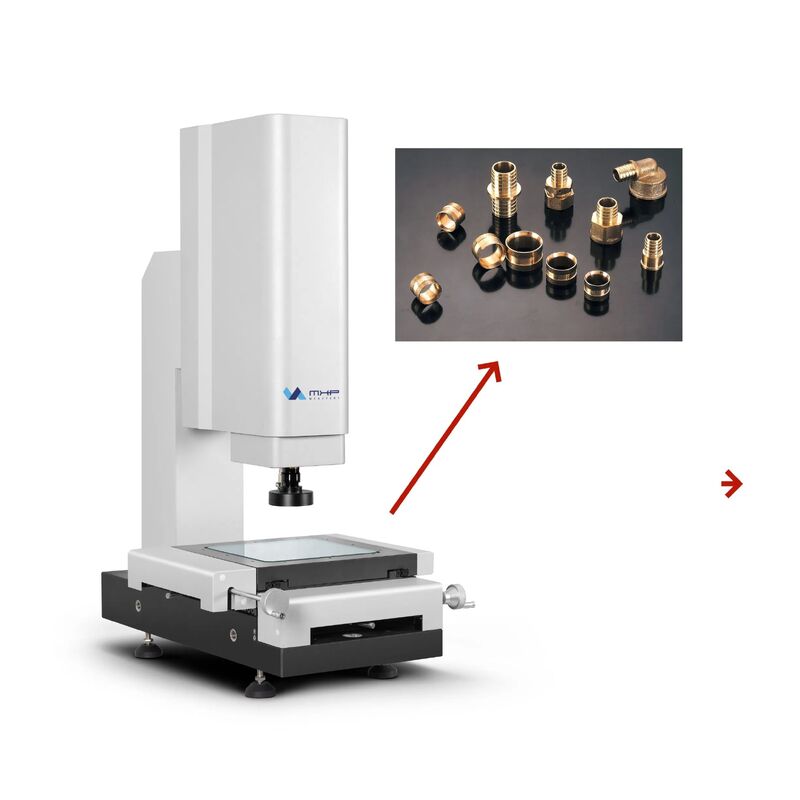

Pluto Series Manual Image Measuring Instrument for High-Precision Metrology
Product Summary
Pluto Series Manual Image Measuring Instrument High-precision metrology system combining 2D and 3D measurement capabilities in a single machine with exceptional dynamic performance. Product Overview The PLUTO Series Semi-Auto Vision Measuring Machine features high-accuracy linear guideways, ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
PL-2
Trading Properties
MOQ
≥1
unit price
US$3,700.00-4,500.00
payment method
Western Union,T/T,D/P,L/C,Money Gram
Product Details
Highlight:
Pluto Series manual image measuring instrument
,high-precision metrology measuring instrument
,image measuring instrument with warranty
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Weight(Kg):
140
Measuring Range(Mm)(X/Y/Z):
200*200*200
Lens:
Manual Dented Zoom Lens 0.7-4.5X (Optional Manual
Linear Scale Resolution:
0.5um
Driving System:
X/Y/Z Axis Manual Control
Product Description
Detailed Specifications & Features
Pluto Series Manual Image Measuring Instrument
High-precision metrology system combining 2D and 3D measurement capabilities in a single machine with exceptional dynamic performance.
Product Overview
The PLUTO Series Semi-Auto Vision Measuring Machine features high-accuracy linear guideways, delivering superior dynamic performance and user experience. Equipped with 3-axis 0.0005mm high-resolution linear transducers and powerful programmable measuring software.
- Combined 2D and 3D measuring functions in one machine
- Software calculates offset between optical lens and touch probe
- All measurements within unified coordinate system
- Measurement results exportable as 3D drawings for reverse engineering
Technical Specifications
| Item | PL-2 | PL-3 | PL-4 |
|---|---|---|---|
| Dimension (mm) (X/Y/Z) | 540/540/860 | 665/670/915 | 724/855/915 |
| Measuring range (mm) (X/Y/Z) | 200/100/150 | 300/200/200 | 400/300/200 |
| Measuring accuracy (μm) | 2.5 + L/100 | 2.5 + L/100 | 2.5 + L/100 |
| Repeatability (μm) | 2.5 | 2.5 | 2.5 |
| Weight (kg) | 150 | 200 | 255 |
Imaging & Optical System
- Image and Measuring: 1.3M pixel digital camera with CCD
- Lens: Manual dented zoom lens 0.7-4.5X
- Magnification: 18-195X (reference value, varies with camera/lens combinations)
- Field of View: 8.1~1.3mm (reference value, varies with camera/lens combinations)
- Working Distance: 80mm
- Linear Scale Resolution: 0.5μm
Control & Illumination
- Driving System: X and Y axis manual control
- Illumination: Programmable LED 8-section ring surface light, LED bottom parallel light
- Optional: Coaxial light available
Industry Applications
- Aerospace Industry
- Automotive Industry
- Electronics Industry
About MEAXPERT (MXP)
MEAXPERT is a collective of passionate metrology professionals with over a decade of industry experience, dedicated to developing accurate, reliable, fast, and affordable vision measurement systems.
Our Mission
We believe in simplicity and transparency, offering clear pricing and terms for both vision measurement systems and services without lengthy negotiations.
Innovation & Development
Substantial investment in technology R&D supported by dedicated software and hardware teams. Weekly R&D meetings drive continuous hardware improvements for enhanced stability, efficiency, and usability. Software development focuses on specialized modules for various sub-industries.
Quality Commitment
Meticulous attention to detail from surface finishing to individual components. Rigorous material inspections, stringent process control, thorough reliability testing, and precise calibration ensure exceptional quality standards.
