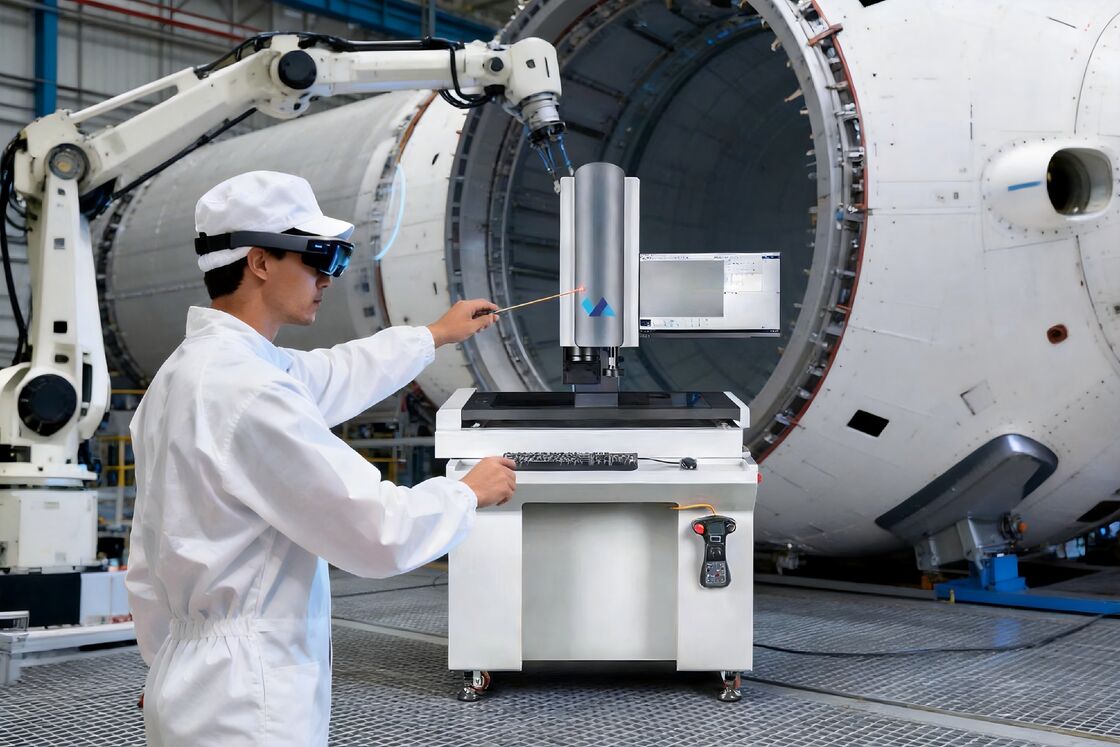

Name: VENUS Floor-Standing System for High-Precision, Large-Scale Seamless Stitching Metrology Applications
Brand: Unimetro Precision Machinery Co., Ltd
SKU: Venus
Availability: InStock

Home Products Image Measuring Instrument

VENUS Floor-Standing System for High-Precision, Large-Scale Seamless Stitching Metrology Applications

Product Details:

Place of Origin:	China
Brand Name:	MEAXPERT
Model Number:	Venus
Document:	Venus series catalog.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	≥1
Price:	US$18,000.00-22,000.00
Packaging Details:	Wooden Case
Delivery Time:	30days
Payment Terms:	L/C,D/P,T/T,Western Union,Money Gram

Contact Now

Detailed Product Description

After-sales Service:	Online Service	Warranty Period:	12 Months
Mode Of Operation:	CNC	Weight(Kg):	610
Measuring Range(mm)(X/Y/Z):	600 X 400 X 200	Lens:	Dual Telecentric Large-FOV Optical Lens + 0.7-4.5X Fully Automatic Zoom Lens
Measurement Accuracy:	Large Field Of View Measurement: ≦ 3um； Small Field Of View Image Measurement: ≦ 2.5um ;Stitched Image Measurement: ≦ 3um
Highlight:	floor-standing image measuring instrument , high-precision metrology system , large-scale seamless stitching instrument

VENUS Floor-Standing System for High-Precision, Large-Scale Seamless Stitching Metrology

Advanced Stitching Vision Technology

Inspired by celestial continuity, our VENUS Series stitching measurement systems bridge measurement gaps with seamless data fusion technology. These systems utilize multi-CCD synchronization to capture and precisely stitch localized images from different workpiece regions, creating complete and coherent profiles for accurate segment-based measurement.

This advanced stitching capability eliminates measurement blind spots common with traditional single-field systems when inspecting large workpieces, ensuring dimensional accuracy across entire surfaces.

Technical Specifications

Model	Venus 500
Measuring Range (XYZ) (mm)	600 x 400 x 200
Effective Range (XYZ) (mm)	500 x 400 x 200
Overall Dimensions (XYZ) (mm)	1000 x 1320 x 1790
Weight (kg)	610
Stage Movement	Fully automatic
Optical Lens Configuration	Dual Telecentric Large-FOV Optical Lens + 0.7-4.5X Fully Automatic Zoom Lens
Field of View (FOV)	Large FOV: 4mm x 4mm Auto-Focus Zoom Lens FOV Range: ~0.5mm x 0.5mm to ~1.3mm x 1.3mm
Image Sensor	Large-FOV Lens: HIKVISION 20 Megapixel Digital Camera Zoom Lens: HIKVISION 1.3 Megapixel Digital Camera
Measurement Accuracy	Large-FOV Measurement: ≤ 3 µm Zoom Lens (High Mag) Measurement: ≤ 2.5 µm Stitched Image Measurement: ≤ 3 µm
System Measurement Accuracy	≤ 3 µm
Surface Light Source	For Large-FOV Lens: Coaxial LED Light. Optional: LED Ring Light. For Auto-Focus Zoom Lens: Optional Coaxial Light or 8-Segment LED Ring Light.
Contour Light Source	Dome Light / Flat LED Light
Software	FlashPro Ultra-High-Speed Inspection Vision Software

Industry Applications

Aerospace Industry

Precision measurement for aircraft components and assemblies

Automotive Industry

Quality control for automotive parts and assemblies

Electronics Industry

High-accuracy inspection of electronic components

About MEAXPERT (MXP)

MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry, each bringing over a decade of experience to the table. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.

Our Mission

We believe in simplicity and transparency, offering clear pricing and terms for both our vision measurement systems and services to eliminate lengthy negotiations.

Innovation and Development

Supported by dedicated software and hardware teams, we continuously improve system stability, efficiency, and ease of use through weekly R&D meetings and specialized module development.

Commitment to Quality

We pursue perfection through meticulous attention to every detail, from rigorous material inspections and stringent process control to thorough reliability testing and precise calibration.
