High-Precision Floor-Standing VENUS Series for Automated Large-Scale Stitching Metrology
Product Summary
High-Precision Floor-Standing VENUS Series for Automated Large-Scale Stitching Metrology The VENUS Series represents a breakthrough in large-scale dimensional metrology, offering high-precision floor-standing stitching measurement systems designed for automated inspection of oversized workpieces. ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
VENUS
Trading Properties
MOQ
≥1
unit price
US$18,000.00-22,000.00
payment method
L/C,D/P,T/T,Western Union,MoneyGram
Product Details
Highlight:
floor-standing vision measuring machine
,automated stitching metrology system
,large-scale precision metrology equipment
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Specifications(Mm):
1000 X 1320 X 1790
Weight(Kg):
610
Lens:
Dual Telecentric Large-FOV Optical Lens + 0.7-4.5X Fully Automatic Zoom Lens
Measurement Accuracy:
Large-FOV Measurement: ≤ 3 µm Zoom Lens (High Mag) Measurement: ≤ 2.5 µm Stitched Image Measurement: ≤ 3 µm
Measuring Range(Mm)(X/Y/Z):
600 X 400 X 200
Product Description
Detailed Specifications & Features
High-Precision Floor-Standing VENUS Series for Automated Large-Scale Stitching Metrology

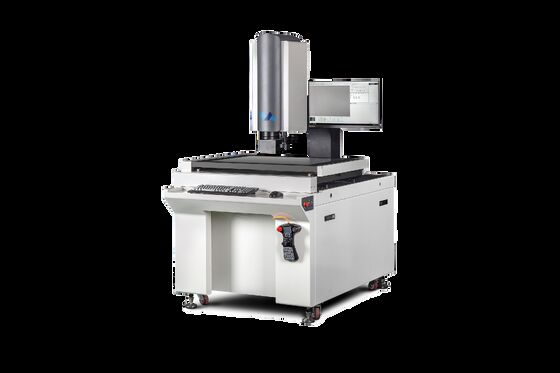

The VENUS Series represents a breakthrough in large-scale dimensional metrology, offering high-precision floor-standing stitching measurement systems designed for automated inspection of oversized workpieces.
Advanced Stitching Vision Measurement Technology
Inspired by celestial continuity, our VENUS Series stitching measurement systems provide uninterrupted data fusion for flawlessly continuous dimensional analysis. These systems utilize multi-CCD synchronization with dual-lens configurations to capture and precisely stitch localized images from different workpiece regions, creating complete and coherent measurement profiles without visible seams.
This advanced stitching capability eliminates measurement blind spots common with traditional single-field systems when inspecting large workpieces, ensuring comprehensive dimensional accuracy.
Technical Specifications
| Specification | VENUS 500 |
|---|---|
| Measuring Range (X*Y*Z) (mm) | 600 x 400 x 200 |
| Effective Range (X*Y*Z) (mm) | 500 x 400 x 200 |
| Overall Dimensions (X*Y*Z) (mm) | 1000 x 1320 x 1790 |
| Weight (kg) | 610 |
| Stage Movement | Fully automatic |
| Optical Lens Configuration | Dual Telecentric Large-FOV Optical Lens + 0.7-4.5X Fully Automatic Zoom Lens |
| Field of View (FOV) | Large FOV: 4mm x 4mm Auto-Focus Zoom Lens FOV Range: ~0.5mm x 0.5mm to ~1.3mm x 1.3mm |
| Image Sensor | Large-FOV Lens: HIKVISION 20 Megapixel Digital Camera Zoom Lens: HIKVISION 1.3 Megapixel Digital Camera |
| Measurement Accuracy | Large-FOV Measurement: ≤ 3 µm Zoom Lens (High Mag) Measurement: ≤ 2.5 µm Stitched Image Measurement: ≤ 3 µm |
| System Measurement Accuracy | ≤ 3 µm |
| Surface Light Source | For Large-FOV Lens: Coaxial LED Light. Optional: LED Ring Light. For Auto-Focus Zoom Lens: Optional Coaxial Light or 8-Segment LED Ring Light. |
| Contour Light Source | Dome Light / Flat LED Light |
| Software | FlashPro Ultra-High-Speed Inspection Vision Software |
Industry Applications
Aerospace Industry
Automotive Industry
Electronics Industry
About MEAXPERT (MXP)
MEAXPERT (MXP) is a collective of passionate metrology professionals with over a decade of industry experience. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.
Our Commitment to Simplicity and Transparency
We believe in straightforward business practices with clear pricing and terms for both our vision measurement systems and services, eliminating the need for lengthy negotiations.
Innovation and Development
We heavily invest in technology R&D with dedicated software and hardware teams. Our hardware undergoes continuous improvement through weekly R&D meetings, enhancing stability, efficiency, and ease of use. Our software development focuses on specialized modules tailored to unique industry needs, simplifying vision measurement applications.
Quality Commitment
We pursue perfection through meticulous attention to detail, from surface finishing to individual components. Our quality assurance process includes rigorous material inspections, stringent manufacturing controls, thorough reliability testing, and precise calibration before shipment.
