VENUS Floor Platform: Advanced Vision-Based Measurement with Large-Field Stitching Capability
Product Summary
VENUS Floor Platform: Advanced Vision-Based Measurement with Large-Field Stitching Capability Advanced Optical Stitching Technology The VENUS Floor-Mounted Optical Stitching System represents the pinnacle of macro-scale measurement and inspection technology. Inspired by celestial continuity, this ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
VENUS
Trading Properties
MOQ
≥1
unit price
US$18,000.00-22,000.00
payment method
L/C,D/P,T/T,Western Union,MoneyGram
Product Details
Highlight:
CNC image measuring instrument with large-field stitching
,VENUS floor platform measurement system
,vision-based CNC measurement instrument
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Weight(Kg):
610
Measuring Range(Mm)(X/Y/Z):
600 X 400 X 200
Lens:
Dual Telecentric Large-FOV Optical Lens + 0.7-4.5X Fully Automatic Zoom Lens
Measurement Accuracy:
Large Field Of View Measurement: ≦ 3um； Small Field Of View Image Measurement: ≦ 2.5um ;Stitched Image Measurement: ≦ 3um
Product Description
Detailed Specifications & Features

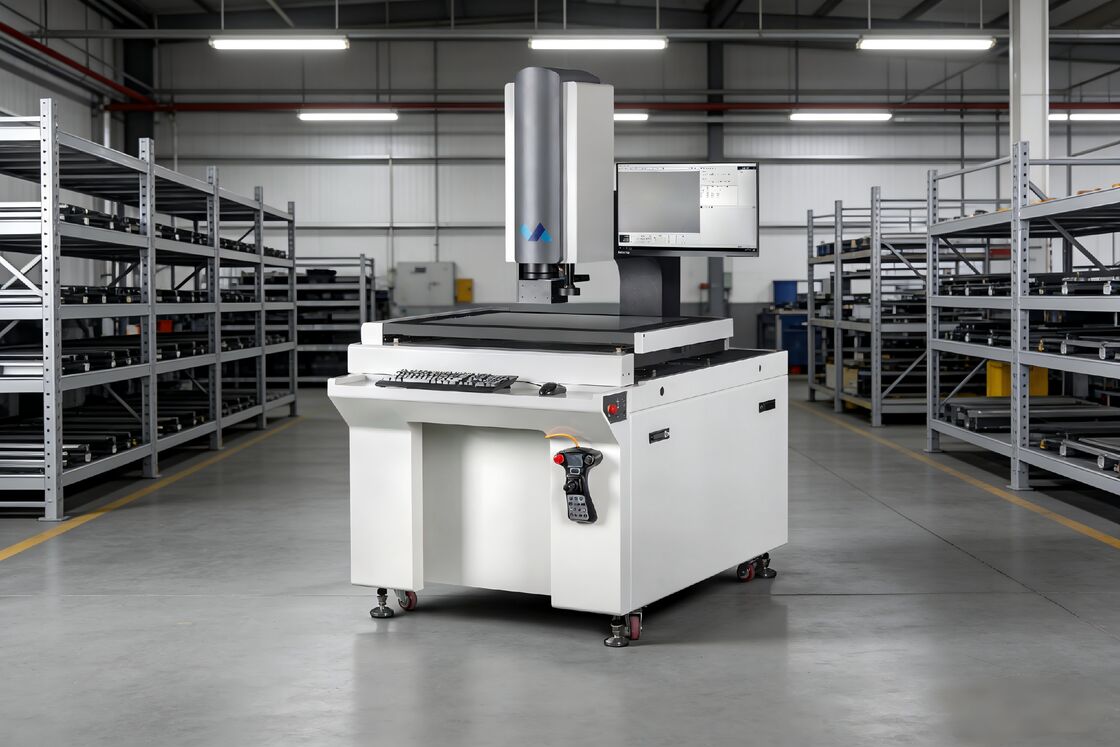

VENUS Floor Platform: Advanced Vision-Based Measurement with Large-Field Stitching Capability
Advanced Optical Stitching Technology
The VENUS Floor-Mounted Optical Stitching System represents the pinnacle of macro-scale measurement and inspection technology. Inspired by celestial continuity, this advanced system utilizes multi-CCD synchronization to capture and precisely stitch localized images from different workpiece regions, creating complete, coherent profiles for accurate segment-based measurement across large surfaces.
This sophisticated stitching capability eliminates measurement blind spots common with traditional single-field systems, ensuring dimensional accuracy across entire workpiece surfaces during large-scale inspection applications.
Technical Specifications
| Model | Venus 500 |
|---|---|
| Measuring Range (X*Y*Z) (mm) | 600 x 400 x 200 |
| Effective Range (X*Y*Z) (mm) | 500 x 400 x 200 |
| Overall Dimensions (X*Y*Z) (mm) | 1000 x 1320 x 1790 |
| Weight (kg) | 610 |
| Stage Movement | Fully automatic |
| Optical Lens Configuration | Dual Telecentric Large-FOV Optical Lens + 0.7-4.5X Fully Automatic Zoom Lens |
| Field of View (FOV) | Large FOV: 4mm x 4mm Auto-Focus Zoom Lens FOV Range: ~0.5mm x 0.5mm to ~1.3mm x 1.3mm |
| Image Sensor | Large-FOV Lens: HIKVISION 20 Megapixel Digital Camera Zoom Lens: HIKVISION 1.3 Megapixel Digital Camera |
| Measurement Accuracy | Large-FOV Measurement: ≤ 3 µm Zoom Lens (High Mag) Measurement: ≤ 2.5 µm Stitched Image Measurement: ≤ 3 µm |
| System Measurement Accuracy | ≤ 3 µm |
| Surface Light Source | For Large-FOV Lens: Coaxial LED Light. Optional: LED Ring Light. For Auto-Focus Zoom Lens: Optional Coaxial Light or 8-Segment LED Ring Light. |
| Contour Light Source | Dome Light / Flat LED Light |
| Software | FlashPro Ultra-High-Speed Inspection Vision Software |
Industry Applications
Aerospace Industry
Precision measurement for aircraft components and assemblies
Automotive Industry
Quality control for automotive parts and assemblies
Electronics Industry
High-accuracy inspection of electronic components
About MEAXPERT (MXP)
Our Expertise
MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry, each bringing over a decade of experience to the table. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.
Our Mission
We believe in simplicity and transparency, offering clear pricing and terms for both our vision measurement systems and services to eliminate lengthy negotiations.
Innovation and Development
Supported by dedicated software and hardware teams, we continuously improve system stability, efficiency, and ease of use through weekly R&D meetings and specialized module development.
Commitment to Quality
We pursue perfection through meticulous attention to every detail, from rigorous material inspections and stringent process control to thorough reliability testing and precise calibration.
