 Ne-3 Precision Optical Measuring Tool for Accurate 2D Dimensional Analysis

Product Summary

NE-3 Precision Optical Measuring Tool High-precision optical video measurement system for accurate 2D dimensional analysis with enhanced measuring capabilities and superior user experience. System Overview The NEPTUNE series semi-auto vision measurement machine delivers enhanced measuring capabiliti...

Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
NE-2
Trading Properties
MOQ
≥1
unit price
US$4,100.00-4,600.00
payment method
L/C,D/P,T/T,Western Union
Tags:

Optical Coordinate Measuring Machine

Optical Coordinate Measuring System

Optical CMM
Product Details
Highlight:

Precision optical measuring tool

,

2D dimensional analysis tool

,

Optical CMM machine with warranty
After-Sales Service: Online Service
Warranty Period: 12 Months
Mode Of Operation: CNC
Weight(Kg): 150
Lens: Manual Dented Zoom Lens With Magnification Signal Feedback 0.7-4.5X
Measuring Range(Mm)(X/Y/Z): 200*200*200
Repeatabilty(Um): 2.5um
Product Description
Detailed Specifications & Features
NE-3 Precision Optical Measuring Tool
High-precision optical video measurement system for accurate 2D dimensional analysis with enhanced measuring capabilities and superior user experience.
 Ne-3 Precision Optical Measuring Tool for Accurate 2D Dimensional Analysis 0  Ne-3 Precision Optical Measuring Tool for Accurate 2D Dimensional Analysis 1  Ne-3 Precision Optical Measuring Tool for Accurate 2D Dimensional Analysis 2
System Overview

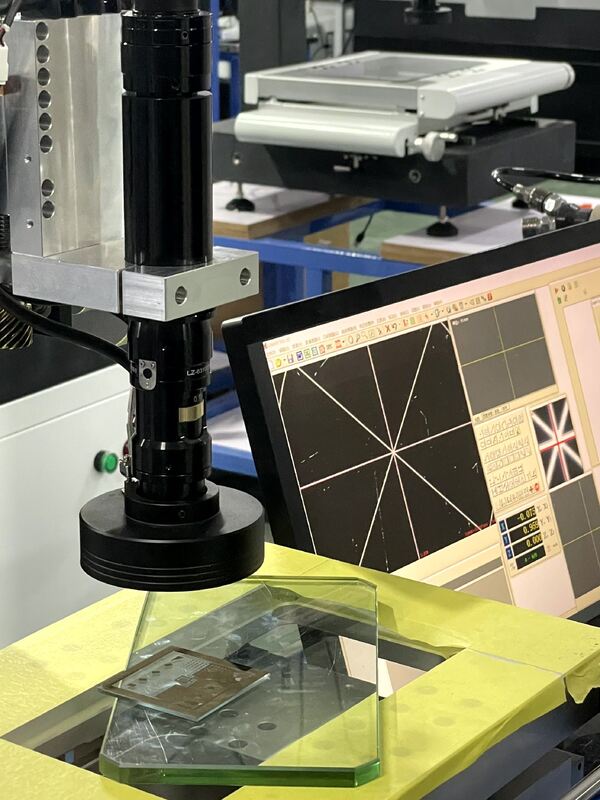

The NEPTUNE series semi-auto vision measurement machine delivers enhanced measuring capabilities and superior user experience compared to standard vision measuring products. Featuring a servo motor in the Z axis with manual pulse generator for precise positioning and adjustment, along with auto focus functionality, this system significantly improves measurement process efficiency and user satisfaction.
Technical Specifications
Item NE-2 NE-3 NE-4
Dimension (mm) (X/Y/Z) 540/550/930 600/670/980 725/855/980
Measuring range (mm) (X/Y/Z) 200/100/150 300/200/200 400/300/200
Measuring accuracy (μm) 2.5 + L/100 2.5 + L/100 2.5 + L/100
Repeatability (μm) 2.5 2.5 2.5
Weight (kg) 150 200 255
CCD
Industrial color CCD camera
Lens
Manual dented zoom lens with magnification signal feedback 0.7-4.5X
Magnification
18-195X (Reference value; actual magnification varies with camera and lens combinations)
Field of view
8.1~1.3mm (Reference value; actual FOV varies with camera and lens combinations)
Working distance
80 mm
Linear scale resolution
0.5 μm (0.1μm optional)
Driving system
X and Y axis manual control, Z axis CNC full closed loop motion control (Including auto focus function)
Illumination
Programmable LED 8-zone ring surface light, LED bottom parallel light (optional: 8-zone ring light, coaxial light)
Industry Applications
 Ne-3 Precision Optical Measuring Tool for Accurate 2D Dimensional Analysis 3  Ne-3 Precision Optical Measuring Tool for Accurate 2D Dimensional Analysis 4  Ne-3 Precision Optical Measuring Tool for Accurate 2D Dimensional Analysis 5
  • Aerospace Industry
  • Automotive Industry
  • Electronics Industry
Frequently Asked Questions
How much time do you need to prepare the quotation for our order?
Each order has its own unique timeline. Typically, we may need approximately 3-4 business days to prepare your quotation.
Are you a manufacturer or a trading company?
We have our own factory, which is an integrated industrial and trading establishment. Our MXP has over 15 years of industry experience and is committed to providing our customers with the best solutions and purchasing experience.
Can I customize the logo and packaging?
Yes, we can customize products based on your design and packaging requirements. Please send your detailed requirements to us.
May I have a sample?
Sorry, dear customer. Due to the unique nature of products like VMM and CMM, we are unable to provide samples. You can further learn about the product details by contacting our sales representative.
How long is your production cycle?
The production cycle for each product is different. If you need further clarification, send me the product link, and I will reply as soon as possible.
About MEAXPERT (MXP)
 Ne-3 Precision Optical Measuring Tool for Accurate 2D Dimensional Analysis 6
MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.
Quality Commitment
At MXP, we pride ourselves on meeting the highest industry standards. Each certification reflects our dedication to excellence in manufacturing, ensuring that our vision measuring machines, cutting tools inspection equipment, instant measurement systems, and accessories consistently meet and exceed customer expectations. Our adherence to these rigorous standards guarantees reliability and superior performance in every product we deliver.
Our Mission
At MEAXPERT, we believe in simplicity and transparency. Our goal is to offer clear pricing and terms for both our vision measurement systems and services, eliminating the need for lengthy negotiations. When you choose Meaxpert, you choose clarity and efficiency.
Commitment to Quality
Perfection is our pursuit, even though perfection itself may be unattainable. We pay meticulous attention to every detail, from surface finishing to individual components. Our commitment to quality starts with rigorous material inspections before production, stringent process control during manufacturing, thorough reliability testing, and precise calibration before shipment.
Innovation and Development
We heavily invest in technology research and development, supported by our dedicated software and hardware teams. Our hardware is constantly improved through weekly R&D meetings, enhancing its stability, efficiency, and ease of use. On the software side, we focus on developing specialized modules tailored to the unique needs of various sub-industries, simplifying vision measurement system applications and addressing the industry's talent shortage.
