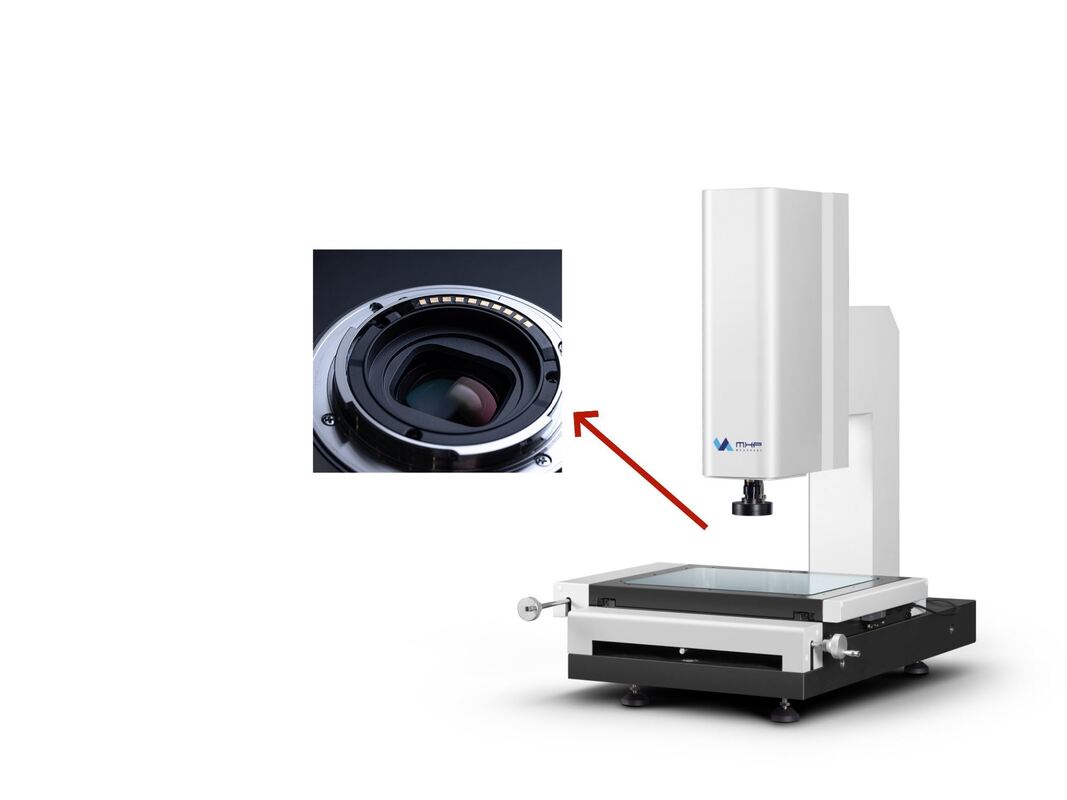

High-Accuracy 2D Vision Measurement Tool with 0.7-4.5X Manual Zoom Lens

The Neptune Series semi-automatic 2D video measuring instrument delivers enhanced measuring capabilities and superior user experience for industrial metrology applications.

The NEPTUNE series semi-auto vision measurement machine provides enhanced measuring functions and superior user experience compared to standard vision measuring products. This series features a servo motor in the Z axis, including a manual pulse generator for fine positioning and adjustment. With the auto focus function, it significantly increases measuring process efficiency and delivers exceptional end user experience.

• CCD: Industrial color CCD camera
• Lens: Manual dented zoom lens with magnification signal feedback 0.7-4.5X
• Magnification: 18-195X (The value is for reference only and the actual magnification will change according to different combinations of camera and lens.)
• Field of view: 8.1~1.3mm (The value is for reference only and the actual FOV will change according to different combinations of camera and lens.)
• Working distance: 80mm
• Linear scale resolution: 0.5μm (0.1μm optional)
• Driving system: X and Y axis manual control, Z axis CNC full closed loop motion control (Including auto focus function)
• Illumination: Programmable LED 8-zone ring surface light, LED bottom parallel light (optional: 8-zone ring light, coaxial light)

• Aerospace Industry
• Automotive Industry
• Electronics Industry

MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.

At MXP, we pride ourselves on meeting the highest industry standards. Each certification reflects our dedication to excellence in manufacturing, ensuring that our vision measuring machines, cutting tools inspection equipment, instant measurement systems, and accessories consistently meet and exceed customer expectations. Our adherence to these rigorous standards guarantees reliability and superior performance in every product we deliver.

At MEAXPERT, we believe in simplicity and transparency. Our goal is to offer clear pricing and terms for both our vision measurement systems and services, eliminating the need for lengthy negotiations. When you choose Meaxpert, you choose clarity and efficiency.

Perfection is our pursuit, even though perfection itself may be unattainable. We pay meticulous attention to every detail, from surface finishing to individual components. Our commitment to quality starts with rigorous material inspections before production, stringent process control during manufacturing, thorough reliability testing, and precise calibration before shipment.

We heavily invest in technology research and development, supported by our dedicated software and hardware teams. Our hardware is constantly improved through weekly R&D meetings, enhancing its stability, efficiency, and ease of use. On the software side, we focus on developing specialized modules tailored to the unique needs of various sub-industries, simplifying vision measurement system applications and addressing the industry's talent shortage.
