Semi-Automatic Optical Vision Measuring Machine with Programmable LED Illumination

Product Summary

Semi-Automatic Optical Vision Measuring Machine with Programmable LED Illumination The Neptune Series semi-automatic vision measuring machine delivers enhanced measuring capabilities and superior user experience compared to standard vision measurement systems. This manual control XY axis vision ...

Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
NE-3
Trading Properties
MOQ
≥1
unit price
US$3900.00-4500.00
payment method
L/C,D/P,T/T,Western Union,Money Gram
Tags:

Video Measuring System

Video Measuring Instrument

Video Measurement System
Product Details
Highlight:

semi-automatic optical measuring machine

,

programmable LED video measuring machine

,

vision measuring machine with LED illumination
After-Sales Service: Online Service
Warranty Period: 12 Months
Mode Of Operation: CNC
Weight(Kg): 200
Repeatabilty(Um): 2.5um
Lens: Manual Dented Zoom Lens With Magnification Signal
CCD: 1.3m Pixel Digital Camera
Product Description
Detailed Specifications & Features
Semi-Automatic Optical Vision Measuring Machine with Programmable LED Illumination
The Neptune Series semi-automatic vision measuring machine delivers enhanced measuring capabilities and superior user experience compared to standard vision measurement systems. This manual control XY axis vision measurement system features CNC auto-focus Z axis and high-precision manual zoom lens for optimal performance.
Key features include servo motor in the Z axis with manual pulse generator for fine positioning and adjustment, plus auto focus function for increased measuring efficiency.
Semi-Automatic Optical Vision Measuring Machine with Programmable LED Illumination 0 Semi-Automatic Optical Vision Measuring Machine with Programmable LED Illumination 1 Semi-Automatic Optical Vision Measuring Machine with Programmable LED Illumination 2
Technical Specifications
Item NE-2 NE-3 NE-4
Dimension (mm) (X/Y/Z) 540/550/930 600/670/980 725/855/980
Measuring range (mm) (X/Y/Z) 200/100/150 300/200/200 400/300/200
Measuring accuracy (μm) 2.5 + L/100 2.5 + L/100 2.5 + L/100
Repeatability (μm) 2.5 2.5 2.5
Weight (kg) 150 200 255
Additional Specifications
  • CCD: Industrial color CCD camera
  • Lens: Manual dented zoom lens with magnification signal feedback 0.7-4.5X
  • Magnification: 18-195X (Reference value - actual magnification varies with camera and lens combinations)
  • Field of view: 8.1~1.3mm (Reference value - actual FOV varies with camera and lens combinations)
  • Working distance: 80mm
  • Linear scale resolution: 0.5μm (0.1μm optional)
  • Driving system: X and Y axis manual control, Z axis CNC full closed loop motion control (including auto focus function)
  • Illumination: Programmable LED 8-zone ring surface light, LED bottom parallel light (optional: 8-zone ring light, coaxial light)
Product Applications

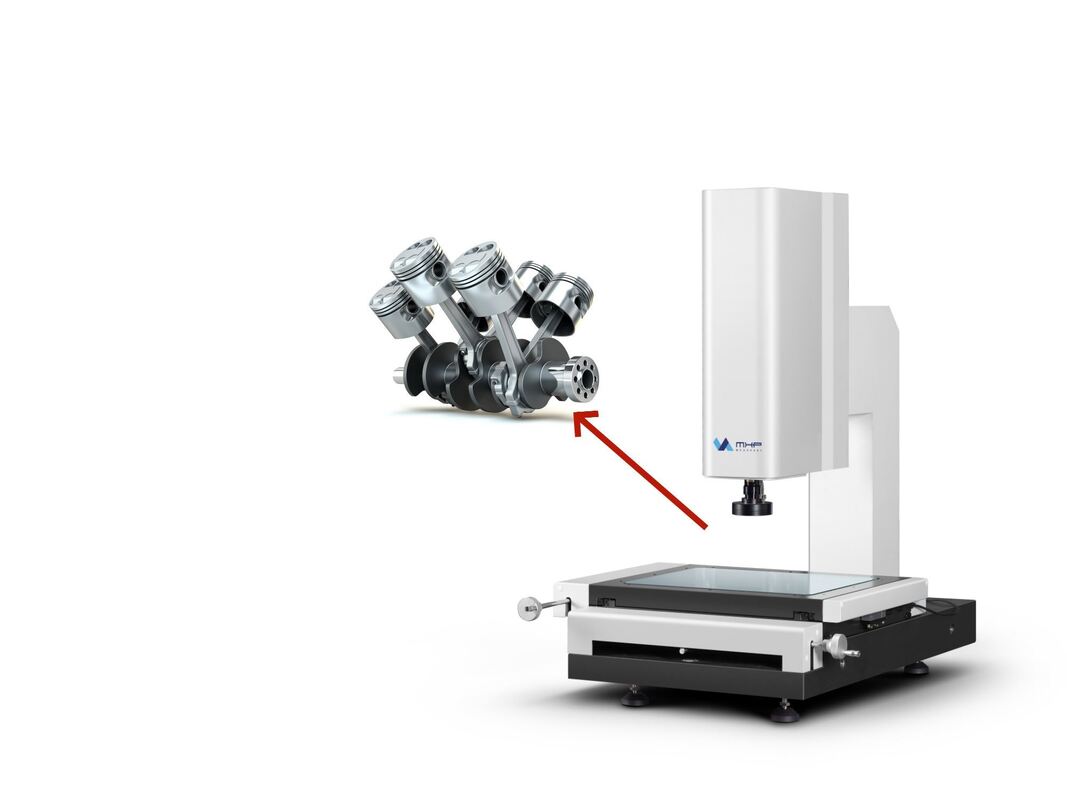

Semi-Automatic Optical Vision Measuring Machine with Programmable LED Illumination 3 Semi-Automatic Optical Vision Measuring Machine with Programmable LED Illumination 4 Semi-Automatic Optical Vision Measuring Machine with Programmable LED Illumination 5
  • Aerospace Industry
  • Automotive Industry
  • Electronics Industry
Frequently Asked Questions
How much time do you need to prepare the quotation for our order?
Each order has its own unique timeline. Typically, we need approximately 3-4 business days to prepare your quotation.
Are you a manufacturer or a trading company?
We have our own factory, which is an integrated industrial and trading establishment. Our MXP has over 15 years of industry experience and is committed to providing customers with the best solutions and purchasing experience.
Can I customize the logo and packaging?
Yes, we can customize products based on your design and packaging requirements. Please send your detailed requirements to us.
May I have a sample?
Due to the unique nature of products like VMM and CMM, we are unable to provide samples. You can learn more about product details by contacting our sales representative.
How long is your production cycle?
The production cycle for each product is different. For specific timing, please send the product link and we will reply as soon as possible.
About MEAXPERT (MXP)
Semi-Automatic Optical Vision Measuring Machine with Programmable LED Illumination 6
Our Mission
MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable. We believe in simplicity and transparency, offering clear pricing and terms for both our vision measurement systems and services.
Commitment to Quality
We pay meticulous attention to every detail, from surface finishing to individual components. Our commitment to quality starts with rigorous material inspections before production, stringent process control during manufacturing, thorough reliability testing, and precise calibration before shipment.
Innovation and Development
We heavily invest in technology research and development, supported by dedicated software and hardware teams. Our hardware is constantly improved through weekly R&D meetings, enhancing stability, efficiency, and ease of use. We focus on developing specialized modules tailored to the unique needs of various sub-industries.
