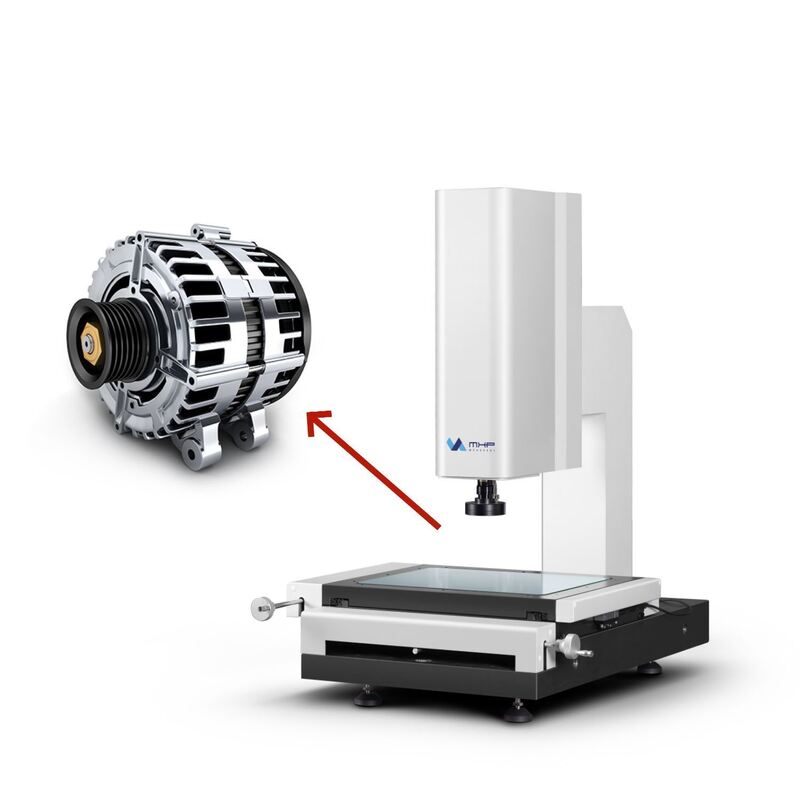

High-Precision Digital Video Measuring Machine with Industrial-Grade Color CCD
Product Summary
High-Precision Digital Video Measuring Machine with Industrial-Grade Color CCD Semi-Automatic 2D Video Measuring Instrument - Neptune Series The NEPTUNE series semi-auto vision measurement machine delivers enhanced measuring capabilities and superior user experience compared to standard vision ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
NE-3
Trading Properties
MOQ
≥1
unit price
US$4,000.00-5,500.00
payment method
L/C,D/P,T/T,Western Union,Money Gram
Product Details
Highlight:
High-Precision Vision Measuring Machine
,Digital Video Measuring Machine with CCD
,Industrial-Grade Color CCD Measuring Machine
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Weight(Kg):
200
Repeatabilty(Um):
2.5um
Lens:
Manual Dented Zoom Lens With Magnification Signal
CCD:
1.3m Pixel Digital Camera
Product Description
Detailed Specifications & Features
High-Precision Digital Video Measuring Machine with Industrial-Grade Color CCD
Semi-Automatic 2D Video Measuring Instrument - Neptune Series
The NEPTUNE series semi-auto vision measurement machine delivers enhanced measuring capabilities and superior user experience compared to standard vision measuring products. This advanced series incorporates a servo motor in the Z axis with manual pulse generator for precise positioning and adjustment. The integrated auto focus function significantly improves measuring process efficiency while providing exceptional operational experience.
Technical Specifications
| Item | NE-2 | NE-3 | NE-4 |
|---|---|---|---|
| Dimension (mm) (X/Y/Z) | 540/550/930 | 600/670/980 | 725/855/980 |
| Measuring range (mm) (X/Y/Z) | 200/100/150 | 300/200/200 | 400/300/200 |
| Measuring accuracy (μm) | 2.5 + L/100 | 2.5 + L/100 | 2.5 + L/100 |
| Repeatability (μm) | 2.5 | 2.5 | 2.5 |
| Weight (kg) | 150 | 200 | 255 |
CCD: Industrial color CCD camera
Lens: Manual dented zoom lens with magnification signal feedback 0.7-4.5X
Magnification: 18-195X (Reference value - actual magnification varies with camera and lens combinations)
Field of view: 8.1~1.3mm (Reference value - actual FOV varies with camera and lens combinations)
Working distance: 80mm
Linear scale resolution: 0.5μm (0.1μm optional)
Driving system: X and Y axis manual control, Z axis CNC full closed loop motion control (Includes auto focus function)
Illumination: Programmable LED 8-zone ring surface light, LED bottom parallel light (Optional: 8-zone ring light, coaxial light)
Product Applications
- Aerospace Industry
- Automotive Industry
- Electronics Industry
Frequently Asked Questions
How much time do you need to prepare the quotation for our order?
Each order has its own unique timeline. Typically, we require approximately 3-4 business days to prepare your quotation.
Each order has its own unique timeline. Typically, we require approximately 3-4 business days to prepare your quotation.
Are you a manufacturer or a trading company?
We operate our own factory as an integrated industrial and trading establishment. MXP brings over 15 years of industry experience and is committed to providing customers with optimal solutions and purchasing experiences.
We operate our own factory as an integrated industrial and trading establishment. MXP brings over 15 years of industry experience and is committed to providing customers with optimal solutions and purchasing experiences.
Can I customize the logo and packaging?
Yes, we offer product customization based on your design and packaging requirements. Please submit your detailed specifications to our team.
Yes, we offer product customization based on your design and packaging requirements. Please submit your detailed specifications to our team.
May I have a sample?
Unfortunately, due to the specialized nature of VMM and CMM products, we cannot provide samples. Contact our sales representatives for comprehensive product details and demonstrations.
Unfortunately, due to the specialized nature of VMM and CMM products, we cannot provide samples. Contact our sales representatives for comprehensive product details and demonstrations.
How long is your production cycle?
Production cycles vary by product. For specific timing information, please share the product link with us for prompt response.
Production cycles vary by product. For specific timing information, please share the product link with us for prompt response.
About MEAXPERT (MXP)
MEAXPERT (MXP) comprises passionate professionals in the Metrology Industry dedicated to developing accurate, reliable, fast, and affordable vision measurement systems.
At MXP, we pride ourselves on meeting the highest industry standards. Our certifications reflect our manufacturing excellence, ensuring that our vision measuring machines, cutting tools inspection equipment, instant measurement systems, and accessories consistently exceed customer expectations through rigorous standards that guarantee reliability and superior performance.
Our Mission
At MEAXPERT, we believe in simplicity and transparency. Our objective is to provide clear pricing and terms for both vision measurement systems and services, eliminating lengthy negotiations. Choosing Meaxpert means choosing clarity and efficiency.
Commitment to Quality
While perfection may be unattainable, it remains our pursuit. We meticulously attend to every detail, from surface finishing to individual components. Our quality commitment begins with rigorous material inspections before production, continues with stringent process control during manufacturing, and concludes with thorough reliability testing and precise calibration before shipment.
Innovation and Development
We heavily invest in technology research and development through dedicated software and hardware teams. Our hardware undergoes continuous improvement via weekly R&D meetings, enhancing stability, efficiency, and usability. On the software side, we develop specialized modules tailored to unique sub-industry needs, simplifying vision measurement system applications while addressing industry talent shortages.
