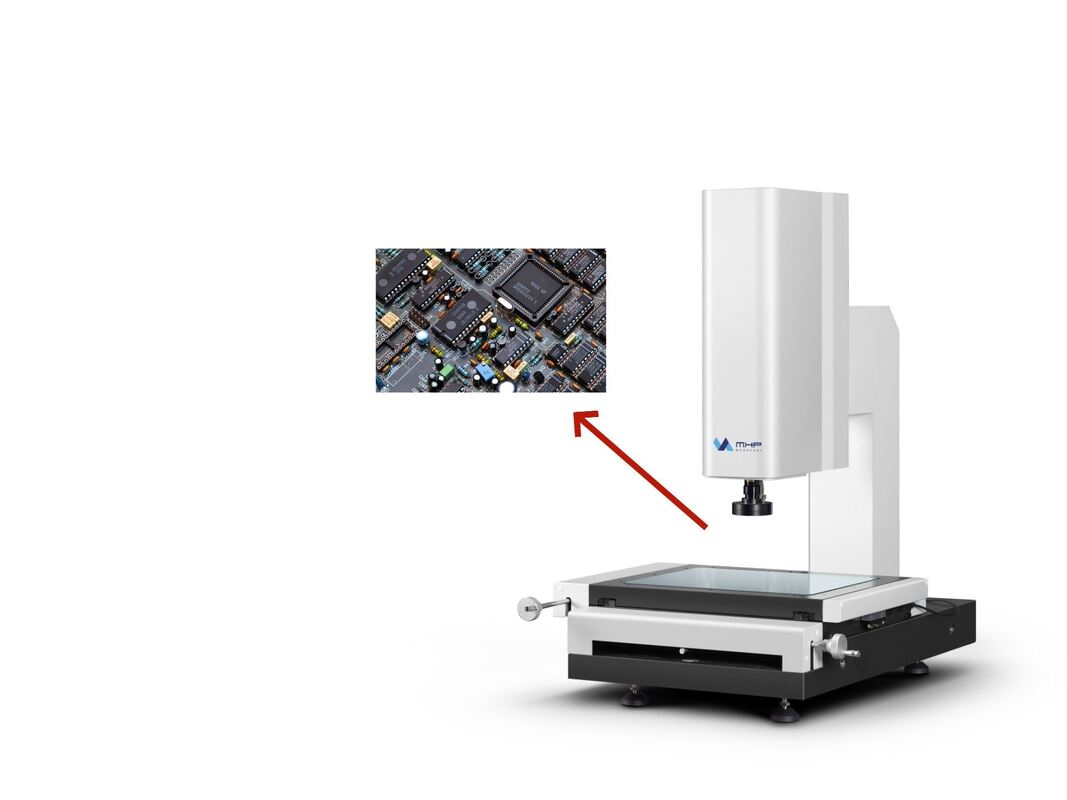

Professional Manual Zoom Video Measurement Machine with High-Resolution CCD
Product Summary
Professional Manual Zoom Video Measurement Machine with High-Resolution CCD Product Overview The NEPTUNE series semi-automatic vision measurement machine delivers enhanced measuring capabilities and superior user experience compared to standard vision measuring products. This series features a servo ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
NE-2
Trading Properties
MOQ
≥1
unit price
US$3,800.00-4,300.00
payment method
L/C,D/P,T/T,Western Union
Product Details
Highlight:
Manual zoom video measurement machine
,High-resolution CCD optical measuring machine
,Professional video measurement machine with zoom
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Weight(Kg):
150
Lens:
Manual Dented Zoom Lens With Magnification Signal Feedback 0.7-4.5X
Measuring Range(Mm)(X/Y/Z):
200*200*200
Repeatabilty(Um):
2.5um
Product Description
Detailed Specifications & Features
Professional Manual Zoom Video Measurement Machine with High-Resolution CCD
Product Overview
The NEPTUNE series semi-automatic vision measurement machine delivers enhanced measuring capabilities and superior user experience compared to standard vision measuring products. This series features a servo motor in the Z axis, complete with a manual pulse generator for precise positioning and adjustments. With the integrated auto focus function, it significantly improves measurement process efficiency and provides exceptional end-user experience.
Technical Specifications
| Item | NE-2 | NE-3 | NE-4 |
|---|---|---|---|
| Dimension (mm) (X/Y/Z) | 540/550/930 | 600/670/980 | 725/855/980 |
| Measuring range (mm) (X/Y/Z) | 200/100/150 | 300/200/200 | 400/300/200 |
| Measuring accuracy (μm) | 2.5 + L/100 | 2.5 + L/100 | 2.5 + L/100 |
| Repeatability (μm) | 2.5 | 2.5 | 2.5 |
| Weight (kg) | 150 | 200 | 255 |
| CCD | Industrial color CCD camera | ||
| Lens | Manual dented zoom lens with magnification signal feedback 0.7-4.5X | ||
| Magnification | 18-195X (Reference value; actual magnification varies with camera and lens combinations) | ||
| Field of view | 8.1~1.3mm (Reference value; actual FOV varies with camera and lens combinations) | ||
| Working distance (mm) | 80 | ||
| Linear scale resolution (μm) | 0.5 (0.1μm optional) | ||
| Driving system | X and Y axis manual control, Z axis CNC full closed loop motion control (Includes auto focus function) | ||
| Illumination | Programmable LED 8-zone ring surface light, LED bottom parallel light (Optional: 8-zone ring light, coaxial light) | ||
Industry Applications
- Aerospace Industry
- Automotive Industry
- Electronics Industry
Frequently Asked Questions
How much time do you need to prepare the quotation for our order?
Each order has its own unique timeline. Typically, we may need approximately 3-4 business days to prepare your quotation.
Are you a manufacturer or a trading company?
We have our own factory, which is an integrated industrial and trading establishment. Our MXP has over 15 years of industry experience and is committed to providing our customers with the best solutions and purchasing experience.
Can I customize the logo and packaging?
Yes, we can customize products based on your design and packaging requirements. Please send your detailed requirements to us.
May I have a sample?
Sorry, dear customer. Due to the unique nature of products like VMM and CMM, we are unable to provide samples. You can further learn about the product details by contacting our sales representative.
How long is your production cycle?
The production cycle for each product is different. If you need further clarification, send me the product link, and I will reply as soon as possible.
