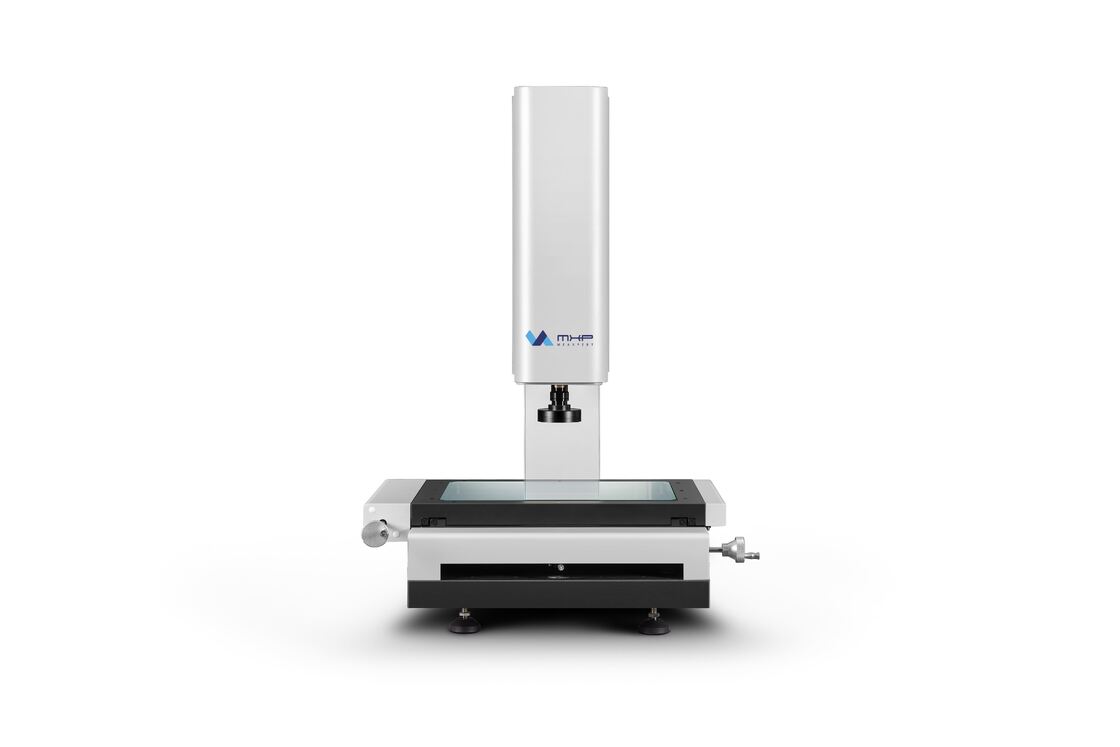

High-Accuracy Laboratory Measurement System Utilizing 1.3MP CCD Camera and Zoom Lens

Product Summary

High-Accuracy Laboratory Measurement System Neptune Series by Meaxpert: Easy-to-Use Semi-Automatic Optical Comparator with High Performance Semi-Auto Vision Measuring Machine The NEPTUNE series semi-auto vision measurement machine provides enhanced measuring functions and superior user experience ...

Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
NE-4
Trading Properties
MOQ
≥1
unit price
US$4,700.00-5,500.00
payment method
L/C,D/P,T/T,Western Union,Wooden Case
Tags:

Optical Coordinate Measuring Machine

Optical Coordinate Measuring System

Optical CMM
Product Details
Highlight:

1.3MP CCD camera measurement system

,

zoom lens optical CMM machine

,

high-accuracy laboratory measurement system
After-Sales Service: Online Service
Warranty Period: 12 Months
Mode Of Operation: CNC
Weight(Kg): 230
CCD: 1.3m Pixel Digital Camera
Lens: Manual Dented Zoom Lens With Magnification Signal
Working Distance: 80mm
Product Description
Detailed Specifications & Features
High-Accuracy Laboratory Measurement System
Neptune Series by Meaxpert: Easy-to-Use Semi-Automatic Optical Comparator with High Performance
High-Accuracy Laboratory Measurement System Utilizing 1.3MP CCD Camera and Zoom Lens 0 High-Accuracy Laboratory Measurement System Utilizing 1.3MP CCD Camera and Zoom Lens 1 High-Accuracy Laboratory Measurement System Utilizing 1.3MP CCD Camera and Zoom Lens 2
Semi-Auto Vision Measuring Machine
The NEPTUNE series semi-auto vision measurement machine provides enhanced measuring functions and superior user experience compared to standard vision measuring products. This series features a servo motor in the Z axis, including a manual pulse generator for fine positioning and adjustment. With the auto focus function, it significantly increases measuring process efficiency and delivers exceptional end user experience.
Technical Specifications
Item NE-2 NE-3 NE-4
Dimension (mm) (X/Y/Z) 540/550/930 600/670/980 725/855/980
Measuring range (mm) (X/Y/Z) 200/100/150 300/200/200 400/300/200
Measuring accuracy (μm) 2.5 + L/100 2.5 + L/100 2.5 + L/100
Repeatability (μm) 2.5 2.5 2.5
Weight (kg) 150 200 255
Additional Specifications
  • CCD: Industrial color CCD camera
  • Lens: Manual dented zoom lens with magnification signal feedback 0.7-4.5X
  • Magnification: 18-195X (Reference value; actual magnification varies with camera and lens combinations)
  • Field of view: 8.1~1.3mm (Reference value; actual FOV varies with camera and lens combinations)
  • Working distance (mm): 80
  • Linear scale resolution (μm): 0.5 (0.1um optional)
  • Driving system: X and Y axis manual control, Z axis CNC full closed loop motion control (Including auto focus function)
  • Illumination: Programmable LED 8-zone ring surface light, LED bottom parallel light (optional: 8-zone ring light, coaxial light)
Product Applications
High-Accuracy Laboratory Measurement System Utilizing 1.3MP CCD Camera and Zoom Lens 3 High-Accuracy Laboratory Measurement System Utilizing 1.3MP CCD Camera and Zoom Lens 4 High-Accuracy Laboratory Measurement System Utilizing 1.3MP CCD Camera and Zoom Lens 5
  • Aerospace Industry
  • Automotive Industry
  • Electronics Industry
Frequently Asked Questions
How much time do you need to prepare the quotation for our order?
Each order has its own unique timeline. Typically, we may need approximately 3-4 business days to prepare your quotation.
Are you a manufacturer or a trading company?
We have our own factory, which is an integrated industrial and trading establishment. Our MXP has over 15 years of industry experience and is committed to providing our customers with the best solutions and purchasing experience.
Can I customize the logo and packaging?
Yes, we can customize products based on your design and packaging requirements. Please send your detailed requirements to us.
May I have a sample?
Sorry, dear customer. Due to the unique nature of products like VMM and CMM, we are unable to provide samples. You can further learn about the product details by contacting our sales representative.
How long is your production cycle?
The production cycle for each product is different. If you need further clarification, send me the product link, and I will reply as soon as possible.
Company Profile
High-Accuracy Laboratory Measurement System Utilizing 1.3MP CCD Camera and Zoom Lens 6
Who is MXP?
MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.
At MXP, we pride ourselves on meeting the highest industry standards. Each certification reflects our dedication to excellence in manufacturing, ensuring that our vision measuring machines, cutting tools inspection equipment, instant measurement systems, and accessories consistently meet and exceed customer expectations. Our adherence to these rigorous standards guarantees reliability and superior performance in every product we deliver.
Our Mission
At MEAXPERT, we believe in simplicity and transparency. Our goal is to offer clear pricing and terms for both our vision measurement systems and services, eliminating the need for lengthy negotiations. When you choose Meaxpert, you choose clarity and efficiency.
Commitment to Quality
Perfection is our pursuit, even though perfection itself may be unattainable. We pay meticulous attention to every detail, from surface finishing to individual components. Our commitment to quality starts with rigorous material inspections before production, stringent process control during manufacturing, thorough reliability testing, and precise calibration before shipment.
Innovation and Development
We heavily invest in technology research and development, supported by our dedicated software and hardware teams. Our hardware is constantly improved through weekly R&D meetings, enhancing its stability, efficiency, and ease of use. On the software side, we focus on developing specialized modules tailored to the unique needs of various sub-industries, simplifying vision measurement system applications and addressing the industry's talent shortage.
