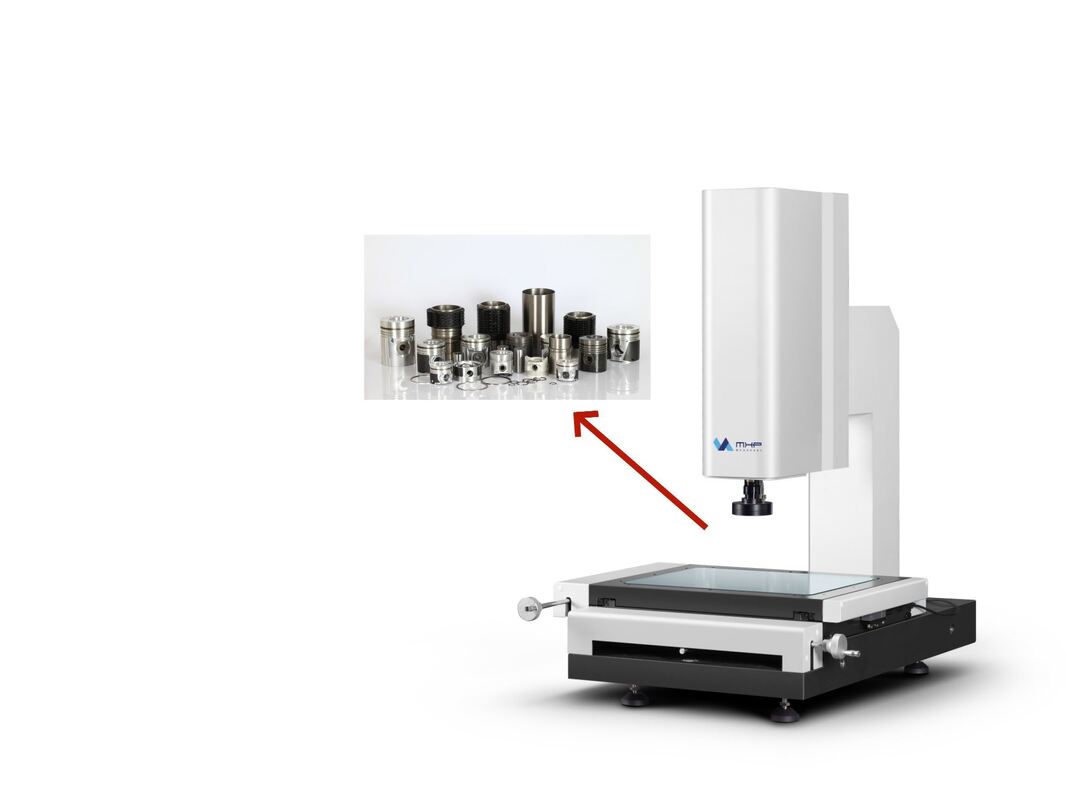

Accurate Industrial Vision Measurement System Featuring 1.3MP CCD Sensor and Zoom Optics
Product Summary
Accurate Industrial Vision Measurement System Ultra-Precision Measurement Tool with 1.3MP Digital Zoom Camera Semi Automatic VMM Vision Measuring Machine Factory Price High-Performance Semi-Automatic Visual Measuring Machine - Meaxpert Neptune Series Enhanced Measuring Capabilities The NEPTUNE ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
NE-4
Trading Properties
MOQ
≥1
unit price
US$4,700.00-5,000.00
payment method
L/C,D/P,T/T,Western Union,MoneyGram
Product Details
Highlight:
industrial vision measurement system with 1.3MP CCD
,optical measuring machine with zoom optics
,precision vision measurement system with warranty
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Weight(Kg):
230
CCD:
1.3m Pixel Digital Camera
Lens:
Manual Dented Zoom Lens With Magnification Signal
Working Distance:
80mm
Product Description
Detailed Specifications & Features
Accurate Industrial Vision Measurement System
Ultra-Precision Measurement Tool with 1.3MP Digital Zoom Camera
Semi Automatic VMM Vision Measuring Machine
Factory Price High-Performance Semi-Automatic Visual Measuring Machine - Meaxpert Neptune Series
Enhanced Measuring Capabilities
The NEPTUNE series semi-auto vision measurement machine delivers enhanced measuring capabilities and superior user experience compared to standard vision measuring products. Featuring a servo motor in the Z axis with manual pulse generator for precise positioning and adjustment, along with auto focus functionality, this system significantly improves measurement process efficiency and provides exceptional end-user experience.
Technical Specifications
| Item | NE-2 | NE-3 | NE-4 |
|---|---|---|---|
| Dimension (mm) (X/Y/Z) | 540/550/930 | 600/670/980 | 725/855/980 |
| Measuring range (mm) (X/Y/Z) | 200/100/150 | 300/200/200 | 400/300/200 |
| Measuring accuracy (μm) | 2.5 + L/100 | 2.5 + L/100 | 2.5 + L/100 |
| Repeatability (μm) | 2.5 | 2.5 | 2.5 |
| Weight (kg) | 150 | 200 | 255 |
System Configuration
- CCD: Industrial color CCD camera
- Lens: Manual dented zoom lens with magnification signal feedback 0.7-4.5X
- Magnification: 18-195X (Reference value, actual magnification varies with camera and lens combinations)
- Field of view: 8.1~1.3mm (Reference value, actual FOV varies with camera and lens combinations)
- Working distance: 80mm
- Linear scale resolution: 0.5μm (0.1μm optional)
- Driving system: X and Y axis manual control, Z axis CNC full closed loop motion control (including auto focus function)
- Illumination: Programmable LED 8-zone ring surface light, LED bottom parallel light (optional: 8-zone ring light, coaxial light)
Product Applications
Aerospace Industry
Automotive Industry
Electronics Industry
Frequently Asked Questions
How much time do you need to prepare the quotation for our order?
Each order has its own unique timeline. Typically, we need approximately 3-4 business days to prepare your quotation.
Are you a manufacturer or a trading company?
We have our own factory, which is an integrated industrial and trading establishment. Our MXP has over 15 years of industry experience and is committed to providing customers with the best solutions and purchasing experience.
Can I customize the logo and packaging?
Yes, we can customize products based on your design and packaging requirements. Please send your detailed requirements to us.
May I have a sample?
Due to the unique nature of products like VMM and CMM, we are unable to provide samples. You can learn about product details by contacting our sales representative.
How long is your production cycle?
The production cycle for each product is different. For specific timelines, please send the product link and we will reply as soon as possible.
Company Profile
Who is MXP?
MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.
MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.
At MXP, we pride ourselves on meeting the highest industry standards. Each certification reflects our dedication to excellence in manufacturing, ensuring that our vision measuring machines, cutting tools inspection equipment, instant measurement systems, and accessories consistently meet and exceed customer expectations.
Our Mission
At MEAXPERT, we believe in simplicity and transparency. Our goal is to offer clear pricing and terms for both our vision measurement systems and services, eliminating the need for lengthy negotiations. When you choose Meaxpert, you choose clarity and efficiency.
Commitment to Quality
Perfection is our pursuit, even though perfection itself may be unattainable. We pay meticulous attention to every detail, from surface finishing to individual components. Our commitment to quality starts with rigorous material inspections before production, stringent process control during manufacturing, thorough reliability testing, and precise calibration before shipment.
Innovation and Development
We heavily invest in technology research and development, supported by our dedicated software and hardware teams. Our hardware is constantly improved through weekly R&D meetings, enhancing its stability, efficiency, and ease of use. On the software side, we focus on developing specialized modules tailored to the unique needs of various sub-industries, simplifying vision measurement system applications.
