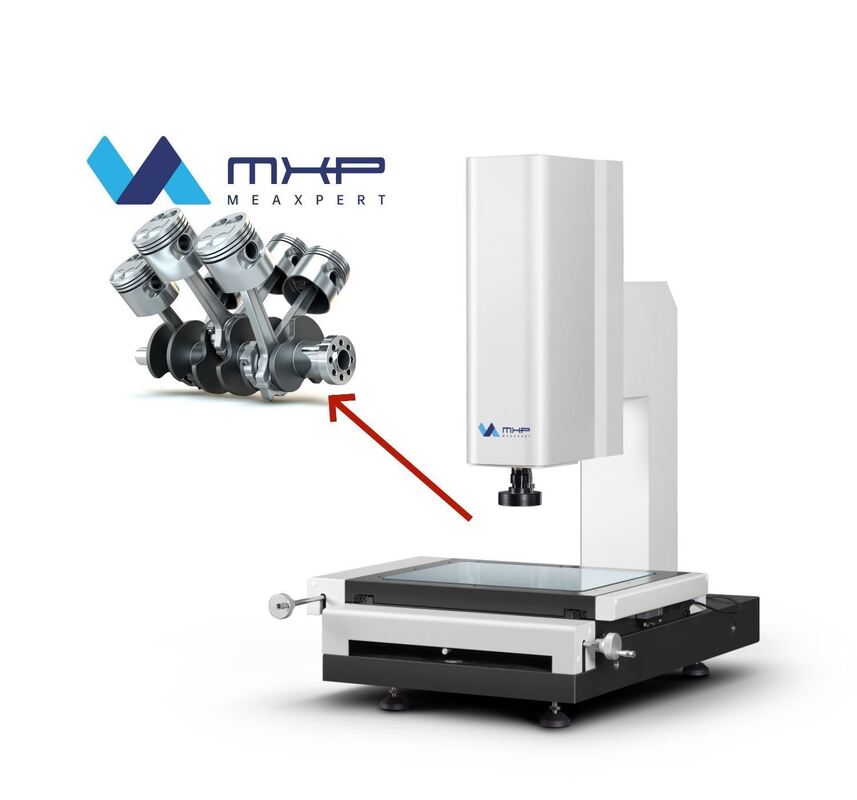

Advanced Vision Measurement System with Precision Zoom Lens and High-Resolution CCD Camera
Product Summary
High-Precision Advanced 1.3MP CCD Video Measurement System with Zoom Lens for Lab QC Factory Price High-Performance Semi-Automatic Visual Measuring Machine Meaxpert Neptune Series - Advanced vision measurement solutions for precision manufacturing Semi-Auto Vision Measuring Machine The NEPTUNE ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
NE-4
Trading Properties
MOQ
≥1
unit price
US$4,800.00-5,500.00
payment method
L/C,D/P,T/T,Western Union,MoneyGram
Product Details
Highlight:
1.3MP CCD video measurement system
,zoom lens vision measuring machine
,lab QC precision measurement system
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Weight(Kg):
230
CCD:
1.3m Pixel Digital Camera
Lens:
Manual Dented Zoom Lens With Magnification Signal
Working Distance:
80mm
Product Description
Detailed Specifications & Features
High-Precision Advanced 1.3MP CCD Video Measurement System with Zoom Lens for Lab QC
Factory Price High-Performance Semi-Automatic Visual Measuring Machine
Meaxpert Neptune Series - Advanced vision measurement solutions for precision manufacturing
Semi-Auto Vision Measuring Machine
The NEPTUNE series semi-auto vision measurement machine delivers enhanced measuring capabilities and superior user experience compared to standard vision measuring products. Featuring a servo motor in the Z axis with manual pulse generator for precise positioning and adjustment, along with auto focus functionality, this system significantly improves measurement process efficiency and provides exceptional end-user experience.
Technical Specifications
| Item | NE-2 | NE-3 | NE-4 |
|---|---|---|---|
| Dimension (mm) (X/Y/Z) | 540/550/930 | 600/670/980 | 725/855/980 |
| Measuring range (mm) (X/Y/Z) | 200/100/150 | 300/200/200 | 400/300/200 |
| Measuring accuracy (μm) | 2.5 + L/100 | 2.5 + L/100 | 2.5 + L/100 |
| Repeatability (μm) | 2.5 | 2.5 | 2.5 |
| Weight (kg) | 150 | 200 | 255 |
CCD
Industrial color CCD camera
Industrial color CCD camera
Lens
Manual dented zoom lens with magnification signal feedback 0.7-4.5X
Manual dented zoom lens with magnification signal feedback 0.7-4.5X
Magnification
18-195X (Reference value; actual magnification varies with camera and lens combinations)
18-195X (Reference value; actual magnification varies with camera and lens combinations)
Field of view
8.1~1.3mm (Reference value; actual FOV varies with camera and lens combinations)
8.1~1.3mm (Reference value; actual FOV varies with camera and lens combinations)
Working distance (mm)
80
80
Linear scale resolution (μm)
0.5 (0.1um optional)
0.5 (0.1um optional)
Driving system
X and Y axis manual control, Z axis CNC full closed loop motion control (Including auto focus function)
X and Y axis manual control, Z axis CNC full closed loop motion control (Including auto focus function)
Illumination
Programmable LED 8-zone ring surface light, LED bottom parallel light (optional: 8-zone ring light, coaxial light)
Programmable LED 8-zone ring surface light, LED bottom parallel light (optional: 8-zone ring light, coaxial light)
Product Applications
- Aerospace Industry
- Automotive Industry
- Electronics Industry
