Industrial Grade Video Measurement System Fully Automatic For Level Measuring
Product Summary
Industrial Grade Video Measurement System Fully automatic vision measuring machine designed for precision level measurement in industrial manufacturing applications. High Precision Mercury Laser Measurement Machine The Mercury Series represents a high-performance, fully automatic coordinate ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
ME-3
Trading Properties
MOQ
≥1
unit price
US$13,000.00-15,000.00
payment method
L/C,D/P,T/T,Western Union,MoneyGram
Product Details
Highlight:
Industrial Grade Video Measurement System
,Video Measurement System Fully Automatic
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Weight(Kg):
400
Lens:
Fully Automatic Zoom Objective 0.7-4.5X
CCD:
1.3m Pixel HD Giga Digital Camera (Optional 5m Pix
Linear Scale Resolution:
0.5um
Repeatabilty(Um):
2.5um
Product Description
Detailed Specifications & Features

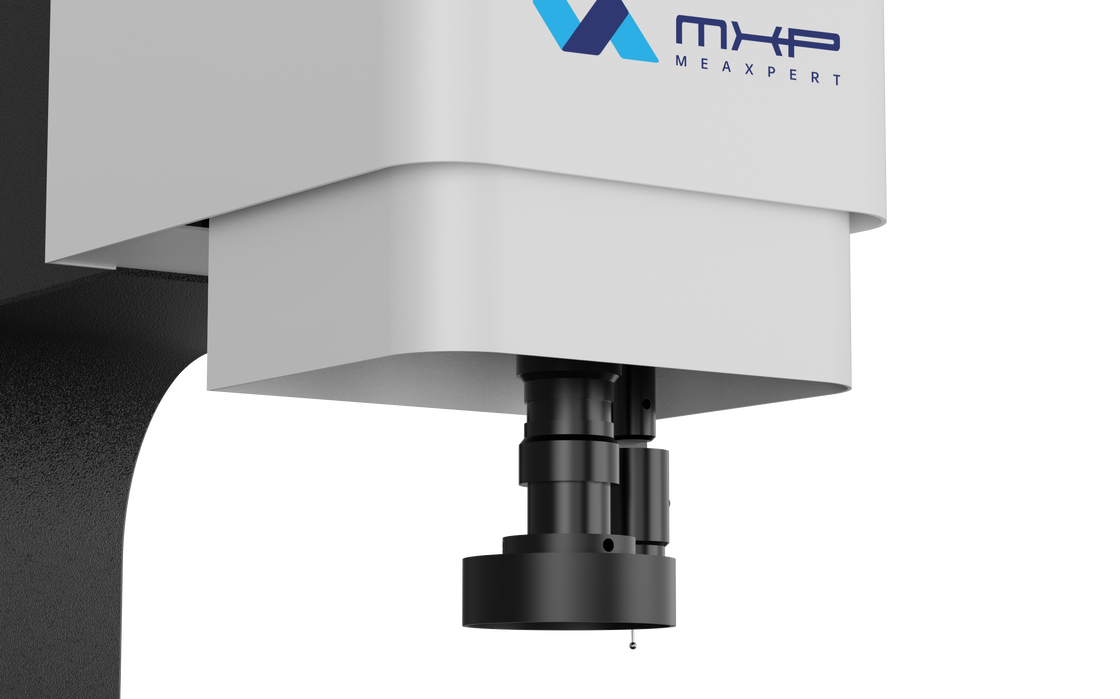

Industrial Grade Video Measurement System
Fully automatic vision measuring machine designed for precision level measurement in industrial manufacturing applications.
High Precision Mercury Laser Measurement Machine
The Mercury Series represents a high-performance, fully automatic coordinate measuring machine built on a stable marble base platform. Engineered with enhanced resolution and accelerated processing speeds, this advanced system enables comprehensive three-axis programmable inspection capabilities.
Through sophisticated programming that matches the workpiece coordinate system, the machine automatically executes measurement procedures. For repetitive workpieces, it provides memory, learning, and automatic programming functions to deliver rapid, accurate real-time on-site measurements.
The marble construction ensures exceptional stability, durability, and minimal maintenance requirements, creating the ideal balance between precision, efficiency, and long-term operational reliability. This system serves as the core quality control solution for manufacturing high volumes of complex, precision components.
Technical Specifications
| Item | ME-3 | ME-4 | ME-5 | ME-6 |
|---|---|---|---|---|
| Dimension (mm) (L/W/H) | 650/950/1740 | 730/1070/1740 | 790/1130/1760 | 890/1370/1780 |
| Measuring range (mm) (X/Y/Z) | 300/200/200 | 400/300/200 | 500/400/200 | 600/500/200 |
| Measuring accuracy (μm) | 2 + L/100 | 2 + L/100 | 2.5 + L/100 | 2.5 + L/100 |
| Repeatability (μm) | 2 | 2 | 2.5 | 2.5 |
| Weight (kg) | 400 | 500 | 600 | 700 |
Optical System Specifications
CCD: 1.3M pixel digital camera
Lens: Auto-zoom Lens 1~10X
Magnification: 18~195X (varies by camera model)
Field of view: 8.5 ~ 1.3mm (reference value)
Working distance: 80mm
Linear scale resolution: 0.5μm (0.1μm optional)
Driving system: CNC control with high-precision motor servo drive; Handle control, mouse/keyboard control
Illumination: Programmable LED 8-section ring surface light, LED bottom parallel light
Industry Applications
- Aerospace Industry: Precision measurement of critical aircraft components and assemblies
- Automotive Industry: Quality control for engine parts, transmission components, and body assemblies
- Electronics Industry: Inspection of circuit boards, connectors, and micro-components
About MEAXPERT (MXP)
Our Expertise
MEAXPERT (MXP) comprises a team of passionate metrology professionals, each bringing over a decade of industry experience. Our mission focuses on developing vision measurement systems that deliver accuracy, reliability, speed, and affordability.
Transparent Approach
We believe in simplicity and transparency throughout our operations. Our goal is to provide clear pricing and straightforward terms for both vision measurement systems and services, eliminating the need for complex negotiations. Choosing MEAXPERT means choosing clarity and efficiency.
Innovation Commitment
We maintain significant investment in technology research and development, supported by dedicated software and hardware teams. Our hardware undergoes continuous improvement through weekly R&D meetings, enhancing stability, efficiency, and user-friendliness. On the software side, we develop specialized modules tailored to the unique requirements of various sub-industries.
Quality Assurance
Perfection drives our pursuit of excellence, even as we acknowledge its elusive nature. We maintain meticulous attention to every detail, from surface finishing to individual components. Our quality commitment begins with rigorous material inspections before production, continues with stringent process control during manufacturing, and concludes with thorough reliability testing and precise calibration before shipment.
