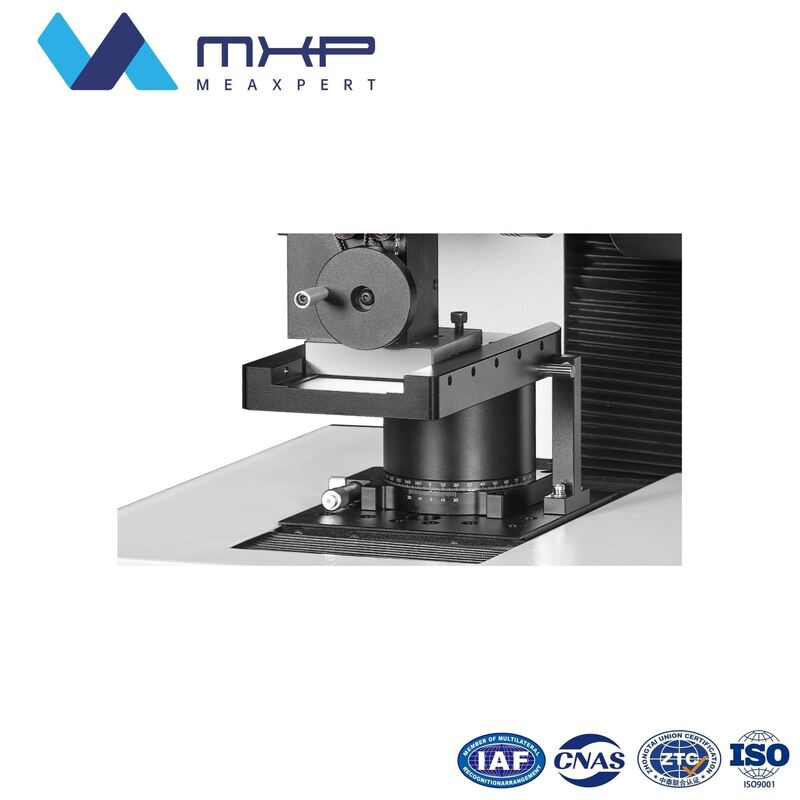

Milling Cutter Tool Inspection Machine Precision Measurement Solution Jupiter Series
Product Summary
Jupiter Series Tool Inspection System with Electronic Zoom Lens Technology The JUPITER600 tool measuring system is a precision measurement solution specifically engineered for measuring various milling cutters, drills, and other cutting tools. Its compact design and robust construction enable ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
J6
Trading Properties
MOQ
≥1
unit price
US$17,000.00-18,000.00
payment method
L/C,D/P,T/T,Western Union,Money Gram
Product Details
Highlight:
Smart tool inspection system with zoom
,Precision Measurement Cutter Tool Inspection Machine
,Milling Cutter Tool Inspection Machine
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Measuring Range(Mm)(X/Y/Z):
80/60/60
Linear Scale Resolution:
0.1
Lens:
Electronic Feedback Signal Zoomlens
Measurement Accuracy:
2.5 + L/100μm,L Is The Measured Length
Product Description
Detailed Specifications & Features
Jupiter Series Tool Inspection System with Electronic Zoom Lens Technology
The JUPITER600 tool measuring system is a precision measurement solution specifically engineered for measuring various milling cutters, drills, and other cutting tools. Its compact design and robust construction enable deployment directly in production environments or quality control laboratories. The system delivers comprehensive and rapid measurement capabilities for both individual element analysis and complex tool geometry assessment.
Technical Specifications
| Specification | JUPITER 600 |
|---|---|
| Measuring range (mm) (X/Y/Z) | 80/60/60 |
| Rotation angle | 0 - 90° |
| Max tool diameter (mm) | 2 - 16 |
| Max tool length (mm) | 0 - 150 |
| Working distance (mm) | 80 |
| Lens | Electronic feedback signal zoom lens |
| CCD | 5M pixel digital camera |
| Linear scale resolution (μm) | 0.1 |
| Magnification | 25.2 - 140X |
| Field of view | 13.5*10 - 2.3*1.6mm |
| Measuring accuracy (μm) (X/Y) | 2.5 + L/100 |
| PC | ALL-IN-ONE PC system, Windows 10 OS, with 24' LCD monitor |
| Illumination | 8 section LED ring light, contour light and flexible auxiliary light, all software control and programmable |
| Input format | DXF |
| Output format | EXCEL, DXF |
Industry Applications
- Aerospace Industry
- Automotive Industry
- Electronics Industry
About MEAXPERT (MXP)
MEAXPERT (MXP) comprises passionate metrology professionals with over a decade of industry experience. Our mission focuses on developing vision measurement systems that deliver accuracy, reliability, speed, and affordability.
Our Mission
We champion simplicity and transparency in all business interactions. Our approach eliminates lengthy negotiations through clear pricing and straightforward terms for both vision measurement systems and support services. Choosing MEAXPERT means selecting clarity and operational efficiency.
Innovation and Development
We maintain substantial investment in technology research and development, supported by dedicated software and hardware engineering teams. Our hardware undergoes continuous improvement through weekly R&D sessions, enhancing stability, efficiency, and user experience. Our software development focuses on specialized modules tailored to specific industry requirements, simplifying vision measurement applications and addressing technical talent shortages.
Commitment to Quality
While perfection remains an ideal, we relentlessly pursue excellence in every aspect of our products. We maintain meticulous attention to detail from surface finishing to individual component selection. Our quality commitment begins with rigorous material inspections, continues through stringent manufacturing process controls, and concludes with comprehensive reliability testing and precise calibration before shipment.
