High Precision Tool Inspection And Measurement Equipment Rapid Robust Construction
Product Summary
High-Precision Tool Inspection & Measurement Equipment: The MXP Jupiter Series Advantage Precision Tool Measuring System The JUPITER600 tool measuring system is a precision measurement solution specifically engineered for measuring various milling cutters, drills, and other cutting tools. Its ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
J6
Trading Properties
MOQ
≥1
unit price
US$17,000.00-18,500.00
payment method
L/C,D/P,T/T,Western Union,Money Gram
Product Details
Highlight:
High Precision Tool Measurement Equipment
,Rapid Tool Inspection And Measurement Equipment
,Robust Construction Tool Inspection Equipment
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Measuring Range(Mm)(X/Y/Z):
80/60/60
Linear Scale Resolution:
0.1
Lens:
Electronic Feedback Signal Zoomlens
Measurement Accuracy:
2.5 + L/100μm,L Is The Measured Length
Product Description
Detailed Specifications & Features
High-Precision Tool Inspection & Measurement Equipment: The MXP Jupiter Series Advantage
Precision Tool Measuring System

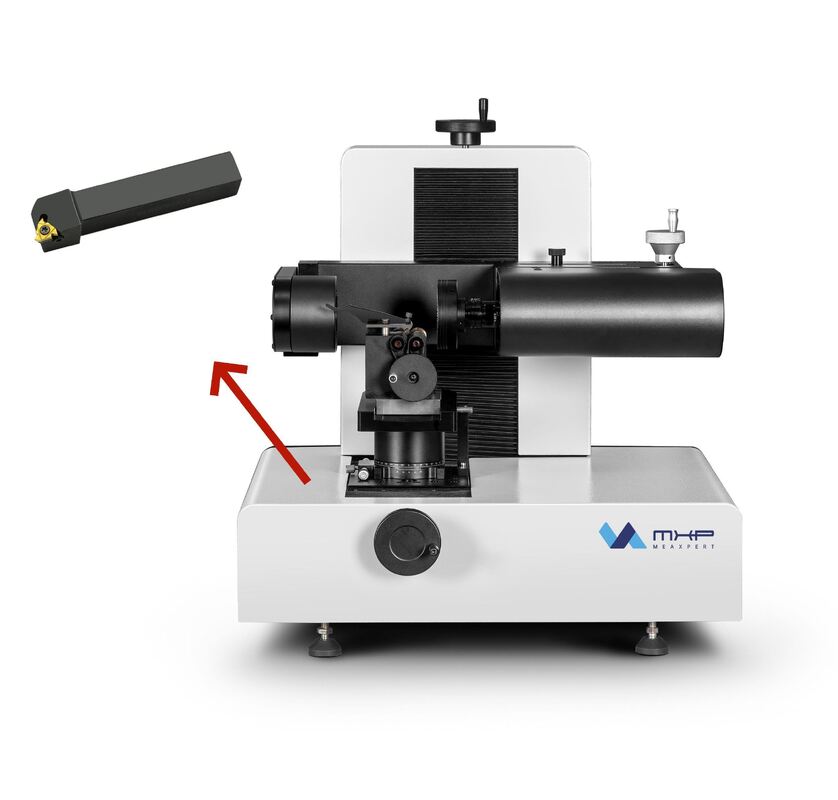

The JUPITER600 tool measuring system is a precision measurement solution specifically engineered for measuring various milling cutters, drills, and other cutting tools. Its compact design and robust construction enable deployment directly in production environments or quality control laboratories. The system delivers comprehensive and rapid measurement capabilities for both individual element analysis—such as external contours and angles—and complete geometric assessment of complex tool curves.
Technical Specifications
| Specification | JUPITER 600 |
|---|---|
| Measuring range (mm) (X/Y/Z) | 80/60/60 |
| Rotation angle | 0 - 90° |
| Max tool diameter (mm) | 2 - 16 |
| Max tool length (mm) | 0 - 150 |
| Working distance (mm) | 80 |
| Lens | Electronic feedback signal zoom lens |
| CCD | 5M pixel digital camera |
| Linear scale resolution (μm) | 0.1 |
| Magnification | 25.2 - 140X |
| Field of view | 13.5*10 - 2.3*1.6mm |
| Measuring accuracy (μm) (X/Y) | 2.5 + L/100 |
| PC | ALL-IN-ONE PC system, Windows 10 OS, with 24' LCD monitor |
| Illumination | 8 section LED ring light, contour light and flexible auxiliary light, all software control and programmable |
| Input format | DXF |
| Output format | EXCEL, DXF |
Industry Applications
- Aerospace Industry
- Automotive Industry
- Electronics Industry
About MEAXPERT (MXP)
Our Expertise
MEAXPERT (MXP) comprises passionate metrology professionals with over a decade of industry experience. Our mission focuses on developing vision measurement systems that deliver accuracy, reliability, speed, and affordability.
Transparent Approach
We believe in simplicity and transparency, offering clear pricing and terms for both our vision measurement systems and services. This eliminates lengthy negotiations and ensures clarity and efficiency for our customers.
Continuous Innovation
Significant investment in technology research and development is supported by dedicated software and hardware teams. Weekly R&D meetings drive continuous hardware improvements for enhanced stability, efficiency, and usability. Our software development focuses on specialized modules tailored to specific industry needs, simplifying vision measurement applications and addressing industry talent shortages.
Quality Commitment
We pursue perfection through meticulous attention to detail—from surface finishing to individual components. Our quality commitment begins with rigorous material inspections, continues with stringent process control during manufacturing, and concludes with thorough reliability testing and precise calibration before shipment.
