High Speed Tool Measuring Machine 0.5μM Resolution Cutting Tool Inspection System
Product Summary
JUPITER600 Tool Measuring Machine Precision measuring system with 0.5μm resolution and zoom lens capability Tool Inspection System Overview The JUPITER600 tool measuring system is a precision measuring system specially designed for measuring various milling cutters, drills and other tools. Its ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
J6
Trading Properties
MOQ
≥1
unit price
US$17,000.00-18,000.00
payment method
L/C,D/P,T/T,Western Union,Money Gram
Product Details
Highlight:
high speed tool measuring machine
,0.5um resolution tool measuring machine
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Measuring Range(Mm)(X/Y/Z):
80/60/60
Linear Scale Resolution:
0.1
Lens:
Electronic Feedback Signal Zoomlens
Measurement Accuracy:
2.5 + L/100μm,L Is The Measured Length
Product Description
Detailed Specifications & Features

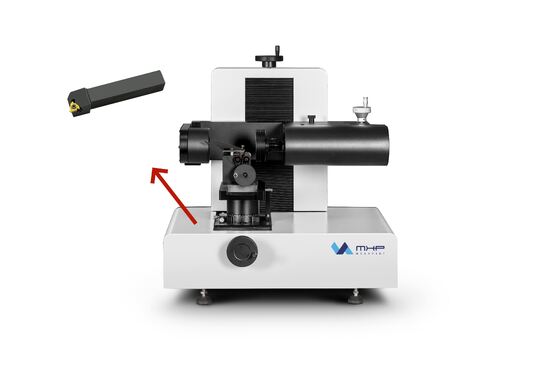

JUPITER600 Tool Measuring Machine
Precision measuring system with 0.5μm resolution and zoom lens capability
Tool Inspection System Overview
The JUPITER600 tool measuring system is a precision measuring system specially designed for measuring various milling cutters, drills and other tools. Its compact design and stable structure allow JUPITER600 to be used directly in the production site or inspection room.
Whether it is the judgment of individual elements, such as external contours or angles, or the global geometric measurement of complex tool curves, JUPITER600 can provide complete and fast measurement functions.
Technical Specifications
| Specification | JUPITER 600 |
|---|---|
| Measuring range (mm) (X/Y/Z) | 80/60/60 |
| Rotation angle | 0 - 90° |
| Max tool diameter (mm) | 2 - 16 |
| Max tool length (mm) | 0 - 150 |
| Working distance (mm) | 80 |
| Lens | Electronic feedback signal zoom lens |
| CCD | 5M pixel digital camera |
| Linear scale resolution (μm) | 0.1 |
| Magnification | 25.2 - 140X |
| Field of view | 13.5*10 - 2.3*1.6mm |
| Measuring accuracy (μm) (X/Y) | 2.5 + L/100 |
| PC | ALL-IN-ONE PC system, Windows 10 OS, with 24' LCD monitor |
| Illumination | 8 section LED ring light, contour light and flexible auxiliary light, all software control and programmable |
| Input format | DXF |
| Output format | EXCEL, DXF |
Industry Applications
- Aerospace Industry
- Automotive Industry
- Electronics Industry
