High Resolution Tool Measurement Device With Electronic Feedback Zoomlens
Product Summary
Advanced Tool Inspection Machine Featuring Electronic Feedback Zoom Lens Precision Tool Measuring System The JUPITER600 tool measuring system is a precision measuring system specially designed for measuring various milling cutters, drills, and other tools. Its compact design and stable structure ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
J6
Trading Properties
MOQ
≥1
unit price
US$17,000.00-18,000.00
payment method
L/C,D/P,T/T,Western Union,Money Gram
Product Details
Highlight:
electronic feedback tool inspection machine
,high resolution tool measurement device
,precision tool inspection equipment
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Measuring Range(Mm)(X/Y/Z):
80/60/60
Linear Scale Resolution:
0.1
Lens:
Electronic Feedback Signal Zoomlens
Measurement Accuracy:
2.5 + L/100μm,L Is The Measured Length
Product Description
Detailed Specifications & Features
Advanced Tool Inspection Machine Featuring Electronic Feedback Zoom Lens
Precision Tool Measuring System

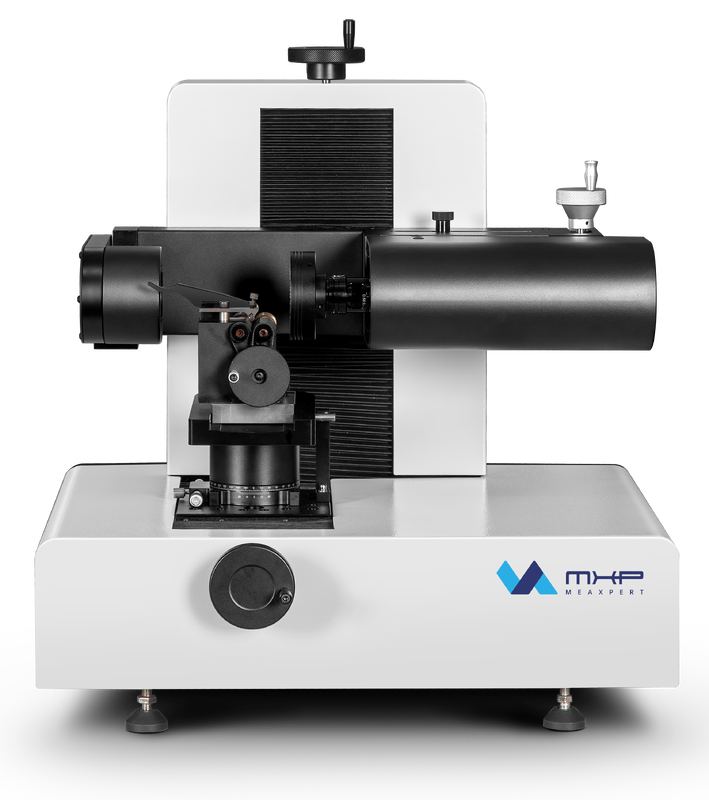

The JUPITER600 tool measuring system is a precision measuring system specially designed for measuring various milling cutters, drills, and other tools. Its compact design and stable structure allow JUPITER600 to be used directly in production sites or inspection rooms.
Whether measuring individual elements such as external contours or angles, or performing global geometric measurements of complex tool curves, JUPITER600 provides complete and fast measurement capabilities.
Technical Specifications
| Item | JUPITER 600 |
|---|---|
| Measuring range (mm) (X/Y/Z) | 80/60/60 |
| Rotation angle | 0 - 90° |
| Max tool diameter (mm) | 2 - 16 |
| Max tool length (mm) | 0 - 150 |
| Working distance (mm) | 80 |
| Lens | Electronic feedback signal zoom lens |
| CCD | 5M pixel digital camera |
| Linear scale resolution (μm) | 0.1 |
| Magnification | 25.2 - 140X |
| Field of view | 13.5*10 - 2.3*1.6mm |
| Measuring accuracy (μm) (X/Y) | 2.5 + L/100 |
| PC | ALL-IN-ONE PC system, Windows 10 OS, with 24' LCD monitor |
| Illumination | 8 section LED ring light, contour light and flexible auxiliary light, all software control and programmable |
| Input format | DXF |
| Output format | EXCEL, DXF |
