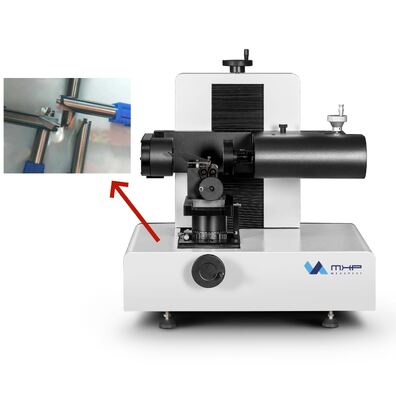

High Precision Tool Measuring Instruments With Advanced Zoom Lens Technology
Product Summary
High-Precision Tool Inspection Machine with Advanced Zoom Lens Technology Tool Inspection System The JUPITER600 tool measuring system is a precision measuring system specially designed for measuring various milling cutters, drills and other tools. Its compact design and stable structure allow ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
J6
Trading Properties
MOQ
≥1
unit price
US$17,000.00-18,000.00
payment method
L/C,D/P,T/T,Western Union,Money Gram
Product Details
Highlight:
High Precision Tool Measuring Instruments
,Tool measuring system with zoom lens
,zoom lens tool measurement system
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Measuring Range(Mm)(X/Y/Z):
80/60/60
Linear Scale Resolution:
0.1
Lens:
Electronic Feedback Signal Zoomlens
Measurement Accuracy:
2.5 + L/100μm,L Is The Measured Length
Product Description
Detailed Specifications & Features
High-Precision Tool Inspection Machine with Advanced Zoom Lens Technology
Tool Inspection System

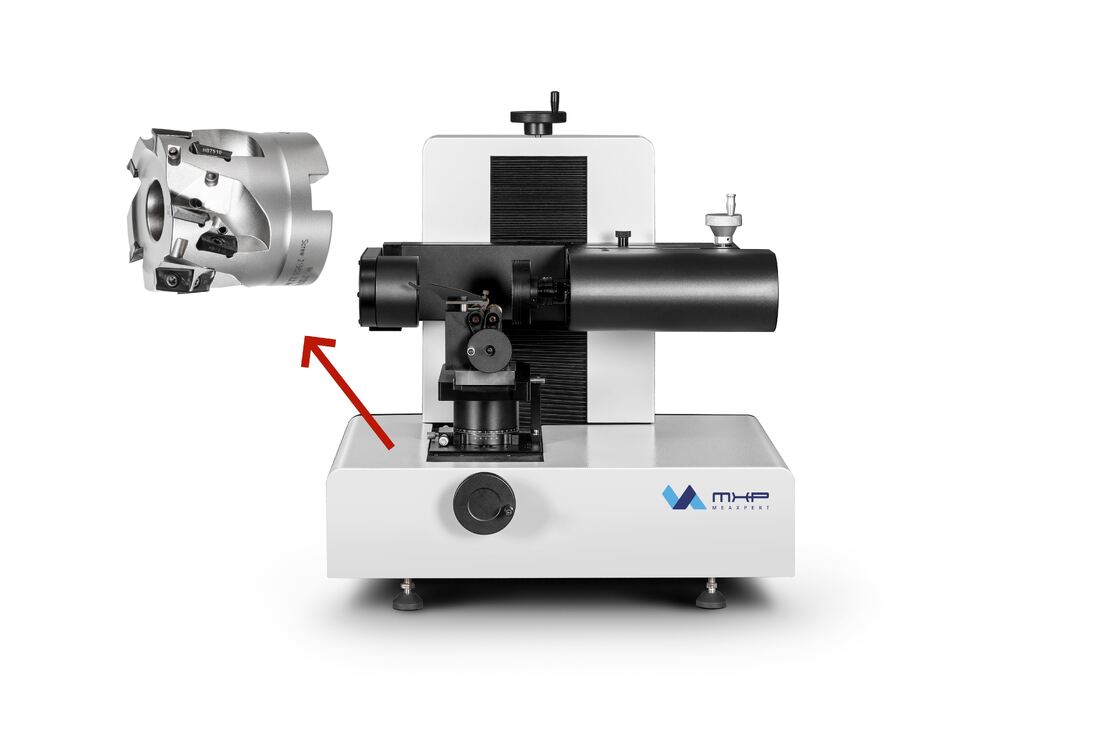

The JUPITER600 tool measuring system is a precision measuring system specially designed for measuring various milling cutters, drills and other tools. Its compact design and stable structure allow JUPITER600 to be used directly in the production site or inspection room. Whether it is the judgment of individual elements, such as external contours or angles, or the global geometric measurement of complex tool curves, JUPITER600 can provide complete and fast measurement functions.
Technical Specifications
| Item | JUPITER 600 |
|---|---|
| Measuring range (mm) (X/Y/Z) | 80/60/60 |
| Rotation angle | 0 - 90° |
| Max tool diameter (mm) | 2 - 16 |
| Max tool length (mm) | 0 - 150 |
| Working distance (mm) | 80 |
| Lens | Electronic feedback signal zoom lens |
| CCD | 5M pixel digital camera |
| Linear scale resolution (μm) | 0.1 |
| Magnification | 25.2 - 140X |
| Field of view | 13.5*10 - 2.3*1.6mm |
| Measuring accuracy (μm) (X/Y) | 2.5 + L/100 |
| PC | ALL-IN-ONE PC system, Windows 10 OS, with 24' LCD monitor |
| Illumination | 8 section LED ring light, contour light and flexible auxiliary light, all software control and programmable |
| Input format | DXF |
| Output format | EXCEL, DXF |
Product Applications
- Aerospace Industry
- Automotive Industry
- Electronics Industry
About MEAXPERT (MXP)
MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry, each bringing over a decade of experience to the table. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.
Our Mission
At MEAXPERT, we believe in simplicity and transparency. Our goal is to offer clear pricing and terms for both our vision measurement systems and services, eliminating the need for lengthy negotiations. When you choose Meaxpert, you choose clarity and efficiency.
Innovation and Development
We heavily invest in technology research and development, supported by our dedicated software and hardware teams. Our hardware is constantly improved through weekly R&D meetings, enhancing its stability, efficiency, and ease of use. On the software side, we focus on developing specialized modules tailored to the unique needs of various sub-industries, simplifying vision measurement system applications and addressing the industry's talent shortage.
Commitment to Quality
Perfection is our pursuit, even though perfection itself may be unattainable. We pay meticulous attention to every detail, from surface finishing to individual components. Our commitment to quality starts with rigorous material inspections before production, stringent process control during manufacturing, thorough reliability testing, and precise calibration before shipment.
