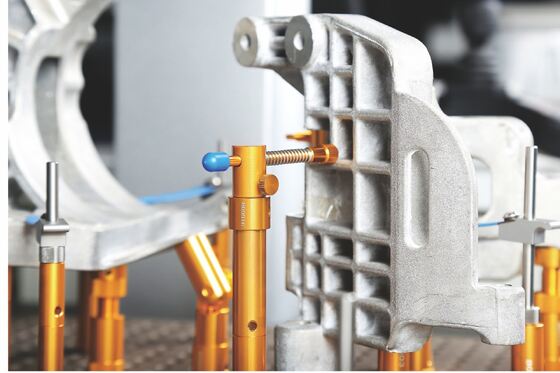

VMM Dedicated Surface Plate Fixture Ensuring Reliable High Precision Parts Holding
Product Summary
Flexible & CNC Fixture Clamps for CMM/VMM Precision Inspection Vision Measurement Machine Fixtures Our VMM fixtures are engineered for precision inspection applications across diverse industries including electronics, aerospace, automotive, plastics, and medical care. Compatible with all sizes and ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
VMM Fixturing Kits 112pcs
Trading Properties
MOQ
≥1
unit price
US$350.00-410.00
payment method
L/C,T/T
Product Details
Highlight:
Parts Holding VMM Plate Fixture
,VMM Dedicated Surface Plate Fixture
After-Sales Service:
Online Service
Color:
Gold
G.W.:
20kg
Packaging:
Aluminum Alloy Box
Other Options:
112
Use:
VMM
Product Description
Detailed Specifications & Features
Flexible & CNC Fixture Clamps for CMM/VMM Precision Inspection
Vision Measurement Machine Fixtures
Our VMM fixtures are engineered for precision inspection applications across diverse industries including electronics, aerospace, automotive, plastics, and medical care. Compatible with all sizes and models of vision measurement machines, these fixtures deliver flexible, repeatable, and standardized measuring processes.
All components are manufactured using precision processes and feature durable anodized coating. Each part includes laser marking for traceability, ensuring consistent component combinations for subsequent inspections. This eliminates variations between different parts or operators while enhancing measuring accuracy and repeatability.
Base Plate Specifications
Available in standard sizes with M4 thread holes:
- 300*200mm
- 400*300mm
- 300*300mm
- 400*400mm
- Custom sizes available
Modular Fixture System
Our comprehensive VMM fixture kit is the result of extensive research into measurement applications and part types. The complete components kit includes supporting, pressing, and holding elements that simplify fixturing without requiring special tools. Users can easily create optimal fixturing solutions for parts of any shape or material.
Product Specifications
| Product Name | Mark | QTY |
|---|---|---|
| Tenshion clamp | 90001 | 4 |
| Short Wire tension clamp | 90002 | 4 |
| Long Wire tension clamp | 90003 | 4 |
| Short tension clamp support | 90004 | 8 |
| Long tension clamp support | 90005 | 3 |
| 6*5mm standoff | 90006 | 3 |
| 6*10mm standoff | 90007 | 6 |
| 6*25mm standoff | 90008 | 6 |
| 9*5mm standoff | 90009 | 3 |
| 9*10mm standoff | 900010 | 6 |
| 9*20mm standoff | 900011 | 6 |
| 9*25mm standoff | 900012 | 6 |
| 12*10mm standoff | 900013 | 6 |
| 12*25mm standoff | 900014 | 6 |
| 6*10mm Flat standoff | 900015 | 4 |
| 9*10mm Flat standoff | 900016 | 4 |
| 12*10mm Flat standoff | 900017 | 4 |
| 9mm adjustable standoff | 900018 | 2 |
| 6mm ball type standoff | 900019 | 2 |
| Muti direction adaptor | 900020 | 2 |
| Tension sopport screw | 900021 | 2 |
| L blcoks | 900022 | 1 |
| Ajustable slide | 900023 | 4 |
| Direction switching block | 900024 | 1 |
| Direction switching block base | 900025 | 1 |
| Tension sopport | 900026 | 1 |
| M4-M8 adaptor | 900027 | 4 |
| Transparent adjustable slide | 900028 | 8 |
| M3 srew driver | 900029 | 1 |
| Components packing | ||
| M4*10 screws (20 pcs) | ||
| Packing Suitcase |
Industry Applications
Aerospace Industry
Automotive Industry
Electronics Industry
About MEAXPERT (MXP)
MEAXPERT (MXP) brings together passionate metrology professionals with over a decade of industry experience. Our mission is to develop vision measurement systems that deliver accuracy, reliability, speed, and affordability.
Our Commitment
We believe in simplicity and transparency, offering clear pricing and terms for both our vision measurement systems and services. When you choose Meaxpert, you choose clarity and efficiency without lengthy negotiations.
Innovation & Development
Through significant investment in technology R&D and dedicated software and hardware teams, we continuously enhance our products. Weekly R&D meetings drive improvements in stability, efficiency, and usability, while specialized software modules address the unique needs of various sub-industries.
Quality Assurance
We pursue perfection through meticulous attention to detail, from surface finishing to individual components. Our quality commitment includes rigorous material inspections, stringent process control, thorough reliability testing, and precise calibration before shipment.
