Alloy Boxed CMM Fixture Kits Two Versions Measurement Equipment Fixturing Components

Product Summary

Product Description Coordinates Measurement Machine Fixtures The CMM fixtures are widely used in varies industries such as electronics, aerospace, automotive, plastic or medical care. It can be introduced to all sizes and models of CMM and VMM. They are the tools which make your measuring process ...

Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
CMM Fixturing Kits 60pcs
Trading Properties
MOQ
≥1
unit price
US$510.00-560.00
payment method
L/C,T/T
Tags:

CMM Fixture Kit

CMM Fixturing Components

CMM Fixture Components
Product Details
Highlight:

Alloy Boxed CMM Fixture Kits

,

Measurement Equipment Fixturing Components
After-Sales Service: Online Service
Specifications: 56*20*36cm
N.W.: 42kg
Packaging: Aluminum Alloy Box
Other Options: 60/108
Use: CMM
Product Description
Detailed Specifications & Features
Product Description
Coordinates Measurement Machine Fixtures

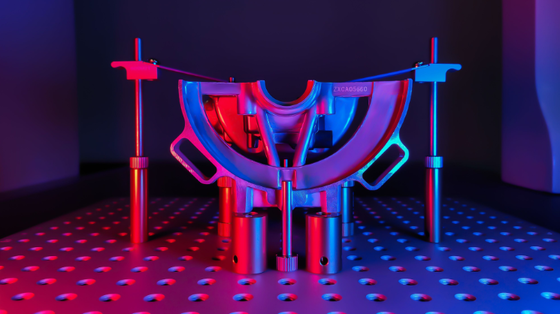

The CMM fixtures are widely used in varies industries such as electronics, aerospace, automotive, plastic or medical care. It can be introduced to all sizes and models of CMM and VMM. They are the tools which make your measuring process flexible, repeatable, and standardized. CMM fixtures system is designed and developed by MXP which means to help CMM users to improve the reproducibility and accuracy of the inspection process by providing quick and repeatable fixturing set-ups for the components.
Alloy Boxed CMM Fixture Kits Two Versions Measurement Equipment Fixturing Components 0
Alloy Boxed CMM Fixture Kits Two Versions Measurement Equipment Fixturing Components 1
Alloy Boxed CMM Fixture Kits Two Versions Measurement Equipment Fixturing Components 2
Plate size
CMM fixtures components
Choosing your fixturing kit
400*300mm, M8 Thread holes
400*400mm, M8 Thread holes
500*500mm, M8 Thread holes
600*600mm, M8 Thread holes
Other customized sizes
The Fixtures components are designed to hold components firmly with the minimum necessary force without any special tools. The reasonable design allows to avoid damage or distortion on the measuring part. With these flexible components users are able to create different type of fixturing combination for varies of parts.
The CMM fixtures are sold as kits to make a easy starting. A kit consists of one base board and a comprehensive set of components.
We are offering different sizes option for the base plates and user should select the suitable one based on the CMM machine size and measuring requirement.
Specification
Product Name
Mark
QTY
12*50mm standoff
80001
6
12*30mm standoff
80002
6
16*50mm standoff
80003
6
16*30mm standoff
80004
6
20*50mm standoff
80005
6
20*30mm standoff
80006
6
12*20mm standoff
80007
6
16*20mm standoff
80008
6
20*20mm standoff
80009
6
Adjustable pivot joint
800012
2
Adjustable jack stand
800013
2
Magnet
800014
4
Pin Standoff
800015
2
Adaptor
800016
6
Baseboard screw
800017
2
Screws
800019
2
Adjustable slide
800020
8
Tension clamp
800021
4
Short tension damp support
800023
2
Long tension clamp support
800024
2
Cone
800025
3
Nylon cone
800026
3
Screwdriver
800027

Product Application
Alloy Boxed CMM Fixture Kits Two Versions Measurement Equipment Fixturing Components 3
Alloy Boxed CMM Fixture Kits Two Versions Measurement Equipment Fixturing Components 4
Alloy Boxed CMM Fixture Kits Two Versions Measurement Equipment Fixturing Components 5
Aerospace Industry
Automotive Industry
Electronics Industry



Company Profile
Who is MEAXPERT (MXP)?
MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry, each bringing over a decade of experience to the table. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.
Our Mission
At MEAXPERT, we believe in simplicity and transparency. Our goal is to offer clear pricing and terms for both our vision measurement systems and services, eliminating the need for lengthy negotiations. When you choose Meaxpert, you choose clarity and efficiency.
Innovation and Development
We heavily invest in technology research and development, supported by our dedicated software and hardware teams. Our hardware is constantly improved through weekly R&D meetings, enhancing its stability, efficiency, and ease of use. On the software side, we focus on developing specialized modules tailored to the unique needs of various sub-industries, simplifying vision measurement system applications and addressing the industry's talent shortage.
Commitment to Quality
Perfection is our pursuit, even though perfection itself may be unattainable. We pay meticulous attention to every detail, from surface finishing to individual components. Our commitment to quality starts with rigorous material inspections before production, stringent process control during manufacturing, thorough reliability testing, and precise calibration before shipment.
