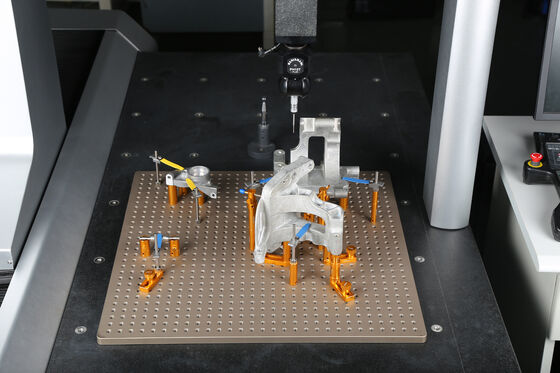

Name: Standard Size CMM Fixture Kits For Electronics Aerospace Automotive Industry
Brand: Unimetro Precision Machinery Co., Ltd
SKU: CMM Fixturing Kits 60pcs
Price: 532.00 USD
Availability: InStock

Home Products CMM Fixture Kits

Standard Size CMM Fixture Kits For Electronics Aerospace Automotive Industry

Product Details:

Place of Origin:	China
Brand Name:	MEAXPERT
Model Number:	CMM Fixturing Kits 60pcs

Payment & Shipping Terms:

Minimum Order Quantity:	≥1
Price:	US$505.00-560.00
Packaging Details:	Aluminum Alloy Box
Delivery Time:	15days
Payment Terms:	L/C,T/T

Contact Now

Detailed Product Description

After-sales Service:	Online Service	Warranty Period:	12 Months
Mode Of Operation:	CNC	Weight(Kg):	--
Measuring Range(mm)(X/Y/Z):	--	OEM:	--
Lens:	--	Driving System:	CMM
Measurement Accuracy:	VMM
Highlight:	Aerospace Industry CMM Fixture Kits , Standard Size CMM Fixture Kits , CMM Fixture Kits For Electronics

Product Description

Coordinates Measurement Machine Fixtures

The CMM fixtures are widely used in varies industries such as electronics, aerospace, automotive, plastic or medical care. It can be introduced to all sizes and models of CMM and VMM. They are the tools which make your measuring process flexible, repeatable, and standardized. CMM fixtures system is designed and developed by MXP which means to help CMM users to improve the reproducibility and accuracy of the inspection process by providing quick and repeatable fixturing set-ups for the components.

Plate size

CMM fixtures components

Choosing your fixturing kit

400*300mm, M8 Thread holes
400*400mm, M8 Thread holes
500*500mm, M8 Thread holes
600*600mm, M8 Thread holes
Other customized sizes

The Fixtures components are designed to hold components firmly with the minimum necessary force without any special tools. The reasonable design allows to avoid damage or distortion on the measuring part. With these flexible components users are able to create different type of fixturing combination for varies of parts.

The CMM fixtures are sold as kits to make a easy starting. A kit consists of one base board and a comprehensive set of components.
We are offering different sizes option for the base plates and user should select the suitable one based on the CMM machine size and measuring requirement.

Specification

Product Name	Mark	QTY
12*50mm standoff	80001	6
12*30mm standoff	80002	6
16*50mm standoff	80003	6
16*30mm standoff	80004	6
20*50mm standoff	80005	6
20*30mm standoff	80006	6
12*20mm standoff	80007	6
16*20mm standoff	80008	6
20*20mm standoff	80009	6
Adjustable pivot joint	800012	2
Adjustable jack stand	800013	2
Magnet	800014	4
Pin Standoff	800015	2
Adaptor	800016	6
Baseboard screw	800017	2
Screws	800019	2
Adjustable slide	800020	8
Tension clamp	800021	4
Short tension damp support	800023	2
Long tension clamp support	800024	2
Cone	800025	3
Nylon cone	800026	3
Screwdriver	800027

Product Application

Aerospace Industry

Automotive Industry

Electronics Industry
