Name: 1.3MP High Def Camera Vision Inspection System Gantry Mounted Vision Measurement Machine
Brand: Unimetro Precision Machinery Co., Ltd
SKU: SATURN 863
Availability: InStock

Home Products Vision Measuring Machine

1.3MP High Def Camera Vision Inspection System Gantry Mounted Vision Measurement Machine

Product Details:

Place of Origin:	China
Brand Name:	MEAXPERT
Model Number:	SATURN 863

Payment & Shipping Terms:

Minimum Order Quantity:	≥1
Price:	US$22,000.00-26,000.00
Packaging Details:	Wooden Case
Delivery Time:	30days
Payment Terms:	L/C,D/P,T/T,Western Union,Money Gram

Contact Now

Detailed Product Description

After-sales Service:	Online Service	Warranty Period:	12 Months
Mode Of Operation:	CNC	Weight(Kg):	--
Measuring Range(mm)(X/Y/Z):	--	OEM:	--
Lens:	--	Driving System:	CMM
Measurement Accuracy:	VMM
Highlight:	Gantry Mounted Vision Measurement Machine , Vision Inspection Equipment With 1.3mp Camera , High Def Camera Vision Inspection System

Product Description

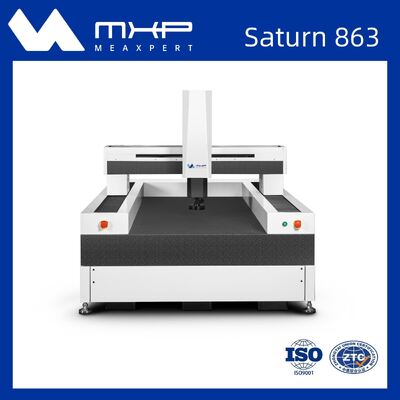

Gantry Type Vision Measuring Machine

MXP's Saturn series of gantry-type, fully automated image measuring instruments combine high accuracy and efficiency for high-speed measurement of the aggregate elements of a wide range of large parts.The Saturn series of products are used in a wide range of industries and materials, such as PCB, automotive, flat glass, LCD modules, solar energy, and more.

Specification

ltem	SATURN 543	SATURN 653	SATURN 863	SATURN 1083
Dimension (mm) (X/Y/Z)	1662/1170/787	1170/1630/1800	1270/1830/1800	1500/2000/1800
Measuring range (mm) (X/Y/Z)	500/400/300	600/500/300	800/600/300	1000/800/300
Measuring accuracy (μm)	3 + L/200	3 + L/200	3 + L/200	3 + L/200
Repeatabilty (μm)	3	3	3	3
Weight (kg)	800	1200	1800	2500
Load (kg)	50	50	50	50
CCD	1.3M pixel digital camera
Lens	Manual dented zoom lens with magnification signal feedback 0.7-4.5X
Magnification	24.7 ~ 160X (The value is for reference only and the actual magnification will change according to different combinations of camera and lens.)
Field of view	8.5 ~ 1.3mm (The value is for reference only and the actual FOV will change according to different combinations of camera and lens.)
Working distance (mm)	80
Linear scale resolution (μm)	0.1
Driving system	X and Y axis manual control, Z axis CNC full closed loop motion control (Including auto focus function)
Illumination	Programmable LED 8 section ring surface light, LED bottom parallel light

Product Application

Aerospace Industry

Automotive Industry

Electronics Industry

Company Profile

Who is MEAXPERT (MXP)?

MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry, each bringing over a decade of experience to the table. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.

Our Mission

At MEAXPERT, we believe in simplicity and transparency. Our goal is to offer clear pricing and terms for both our vision measurement systems and services, eliminating the need for lengthy negotiations. When you choose Meaxpert, you choose clarity and efficiency.

Commitment to Quality

Perfection is our pursuit, even though perfection itself may be unattainable. We pay meticulous attention to every detail, from surface finishing to individual components. Our commitment to quality starts with rigorous material inspections before production, stringent process control during manufacturing, thorough reliability testing, and precise calibration before shipment.

Innovation and Development

We heavily invest in technology research and development, supported by our dedicated software and hardware teams. Our hardware is constantly improved through weekly R&D meetings, enhancing its stability, efficiency, and ease of use. On the software side, we focus on developing specialized modules tailored to the unique needs of various sub-industries, simplifying vision measurement system applications and addressing the industry's talent shortage.
