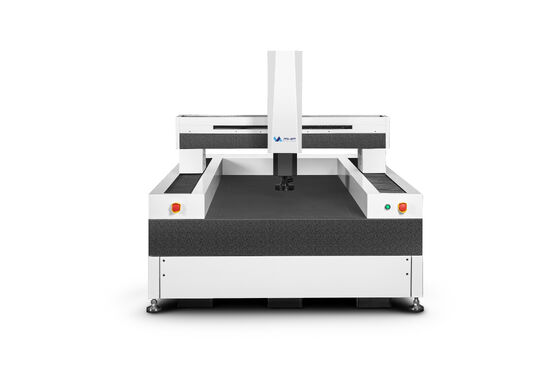

Gantry Style Fully Auto Vision Measurement Instrument With 1.3 Megapixel Resolution
Product Summary
Product Description Gantry Type Vision Measuring Machine MXP's Saturn series of gantry-type, fully automated image measuring instruments combine high accuracy and efficiency for high-speed measurement of the aggregate elements of a wide range of large parts.The Saturn series of products are used in ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
SATURN 863
Trading Properties
MOQ
≥1
unit price
US$22,000.00-26,000.00
payment method
L/C,D/P,Western Union,T/T,Money Gram
Product Details
Highlight:
Gantry style vision measurement instrument
,fully auto vision measurement instrument
,1.3 megapixel resolution measurement system
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Weight(Kg):
--
Measuring Range(Mm)(X/Y/Z):
--
OEM:
--
Lens:
--
Driving System:
CMM
Measurement Accuracy:
VMM
Product Description
Detailed Specifications & Features
Product Description
Gantry Type Vision Measuring Machine
MXP's Saturn series of gantry-type, fully automated image measuring instruments combine high accuracy and efficiency for high-speed measurement of the aggregate elements of a wide range of large parts.The Saturn series of products are used in a wide range of industries and materials, such as PCB, automotive, flat glass, LCD modules, solar energy, and more.
Specification
|
ltem
|
SATURN 543
|
SATURN 653
|
SATURN 863
|
SATURN 1083
|
|
|
Dimension (mm) (X/Y/Z)
|
1662/1170/787
|
1170/1630/1800
|
1270/1830/1800
|
1500/2000/1800
|
|
|
Measuring range (mm) (X/Y/Z)
|
500/400/300
|
600/500/300
|
800/600/300
|
1000/800/300
|
|
|
Measuring accuracy (μm)
|
3 + L/200
|
3 + L/200
|
3 + L/200
|
3 + L/200
|
|
|
Repeatabilty (μm)
|
3
|
3
|
3
|
3
|
|
|
Weight (kg)
|
800
|
1200
|
1800
|
2500
|
|
|
Load (kg)
|
50
|
50
|
50
|
50
|
|
|
CCD
|
1.3M pixel digital camera
|
||||
|
Lens
|
Manual dented zoom lens with magnification signal feedback 0.7-4.5X
|
||||
|
Magnification
|
24.7 ~ 160X (The value is for reference only and the actual magnification will change according to different combinations of camera and lens.)
|
||||
|
Field of view
|
8.5 ~ 1.3mm (The value is for reference only and the actual FOV will change according to different combinations of camera and lens.)
|
||||
|
Working distance (mm)
|
80
|
|
|||
|
Linear scale resolution (μm)
|
0.1
|
|
|||
|
Driving system
|
X and Y axis manual control, Z axis CNC full closed loop motion control (Including auto focus function)
|
|
|||
|
Illumination
|
Programmable LED 8 section ring surface light, LED bottom parallel light
|
|
|||
Product Application
Aerospace Industry
Automotive Industry
Electronics Industry
Company Profile
Who is MEAXPERT (MXP)?
MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry, each bringing over a decade of experience to the table. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.
Our Mission
At MEAXPERT, we believe in simplicity and transparency. Our goal is to offer clear pricing and terms for both our vision measurement systems and services, eliminating the need for lengthy negotiations. When you choose Meaxpert, you choose clarity and efficiency.
Commitment to Quality
Perfection is our pursuit, even though perfection itself may be unattainable. We pay meticulous attention to every detail, from surface finishing to individual components. Our commitment to quality starts with rigorous material inspections before production, stringent process control during manufacturing, thorough reliability testing, and precise calibration before shipment.
Innovation and Development
We heavily invest in technology research and development, supported by our dedicated software and hardware teams. Our hardware is constantly improved through weekly R&D meetings, enhancing its stability, efficiency, and ease of use. On the software side, we focus on developing specialized modules tailored to the unique needs of various sub-industries, simplifying vision measurement system applications and addressing the industry's talent shortage.
