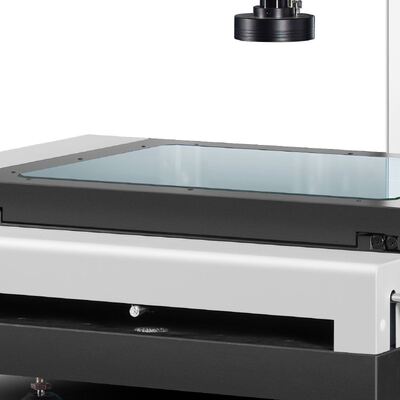

Name: Precision Manual Vision Measuring Machine Floor Type MXP Pluto Series For Industrial
Brand: Unimetro Precision Machinery Co., Ltd
SKU: PLUTO 432
Price: 2.00 USD
Availability: InStock

Home Products Optical CMM Machine

Precision Manual Vision Measuring Machine Floor Type MXP Pluto Series For Industrial

Product Details:

Place of Origin:	China
Brand Name:	MEAXPERT
Model Number:	PLUTO 432

Payment & Shipping Terms:

Minimum Order Quantity:	≥1
Price:	US$4,600.00-5,000.00
Packaging Details:	Wooden Case
Delivery Time:	30days
Payment Terms:	L/C,D/P,T/T,Western Union,Money Gram

Contact Now

Detailed Product Description

After-sales Service:	Online Service	Warranty Period:	12 Months
Mode Of Operation:	CNC	Weight(Kg):	--
Measuring Range(mm)(X/Y/Z):	--	OEM:	--
Lens:	--	Driving System:	CMM
Measurement Accuracy:	VMM
Highlight:	Precision manual vision measuring machine , Floor Type Vision Measuring Machine

Product Description

Semi-auto Vision Measuring Machine

The PLUTO Series is configured with high accuracy linear guide way provides unique dynamic performance and end user experience. 3 axis 0.0005mm high resolution linear transducers, And powerful programmable measuring software. Users can easily achieve 2D and 3D measuring functions in one machine. The software can calculate the offset between the optical lens and touch probe, makes sure that all measuring results are within one coordinates system. The measuring results can be output as 3D drawing for reverse engineering.

Specification

ltem		PL-2	PL-3	PL-4
Dimension (mm) (X/Y/Z)		540/540/860	665/670/915	724/855/915
Measuring range (mm) (X/Y/Z)		200/100/150	300/200/200	400/300/200
Measuring accuracy (μm)		2.5 + L/100	2.5 + L/100	2.5 + L/100
Repeatabilty (μm)		2.5	2.5	2.5
Weight (kg)		150	200	255
lmage and measuring	CCD	1.3M pixel digital camera
	Lens	Manual dented zoom lens 0.7-4.5X
	Magnification	18-195X (The value is for reference only and the actual magnification will change according to different combinations of camera and lens.)
	Field of view	8.1~1.3mm (The value is for reference only and the actual FOV will change according to different combinations of camera and lens.)
	Working distance (mm)	80
Linear scale resolution (μm)		0.5
Driving system		X and Y axis manual control
Illumination		Programmable LED 8 section ring surface light, LED bottom parallel light (Optional coaxial light)

Product Application

Aerospace Industry

Automotive Industry

Electronics Industry

Company Profile

Who is MEAXPERT (MXP)?

MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry, each bringing over a decade of experience to the table. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.

Our Mission

At MEAXPERT, we believe in simplicity and transparency. Our goal is to offer clear pricing and terms for both our vision measurement systems and services, eliminating the need for lengthy negotiations. When you choose Meaxpert, you choose clarity and efficiency.

Innovation and Development

We heavily invest in technology research and development, supported by our dedicated software and hardware teams. Our hardware is constantly improved through weekly R&D meetings, enhancing its stability, efficiency, and ease of use. On the software side, we focus on developing specialized modules tailored to the unique needs of various sub-industries, simplifying vision measurement system applications and addressing the industry's talent shortage.

Commitment to Quality

Perfection is our pursuit, even though perfection itself may be unattainable. We pay meticulous attention to every detail, from surface finishing to individual components. Our commitment to quality starts with rigorous material inspections before production, stringent process control during manufacturing, thorough reliability testing, and precise calibration before shipment.
