High-Precision Measuring Device with Vision Tools for Accurate 2D Results
Product Summary
Product Description Semi-auto Vision Measuring Machine The PLUTO Series is configured with high accuracy linear guide way provides unique dynamic performance and end user experience. 3 axis 0.0005mm high resolution linear transducers, And powerful programmable measuring software. Users can easily ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
PL-2
Trading Properties
MOQ
≥1
unit price
US$3,700.00-4,500.00
payment method
L/C,D/P,T/T,Western Union,Money Gram
Product Details
Highlight:
semi auto vision measuring machine
,dimensional gauging vision measuring machine
,accurate dimensional measurement equipment
After-Sales Service:
Online Service
Mode Of Operation:
CNC
Weight(Kg):
140
Measuring Range(Mm)(X/Y/Z):
200*200*200
Linear Scale Resolution:
0.5um
Lens:
Manual Dented Zoom Lens 0.7-4.5X (Optional Manual
Driving System:
X/Y/Z Axis Manual Control
Product Description
Detailed Specifications & Features
Product Description

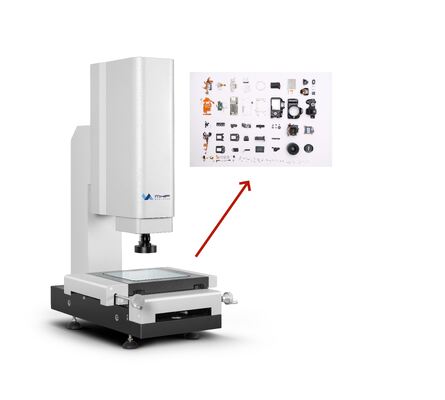

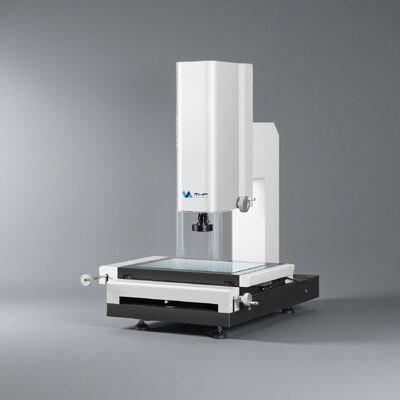

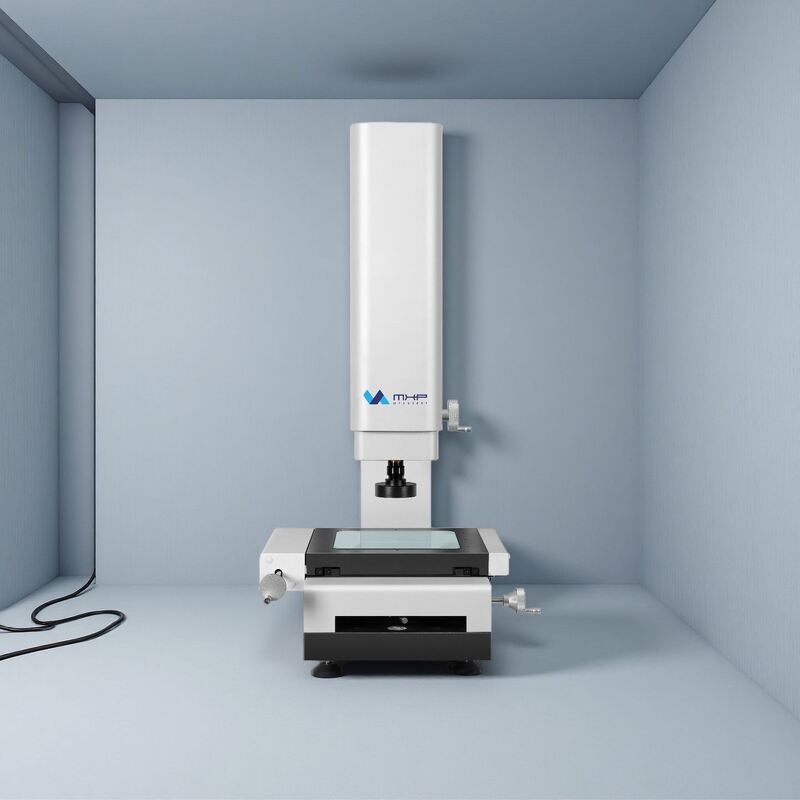

Semi-auto Vision Measuring Machine
The PLUTO Series is configured with high accuracy linear guide way provides unique dynamic performance and end user experience. 3 axis 0.0005mm high resolution linear transducers, And powerful programmable measuring software. Users can easily achieve 2D and 3D measuring functions in one machine. The software can calculate the offset between the optical lens and touch probe, makes sure that all measuring results are within one coordinates system. The measuring results can be output as 3D drawing for reverse engineering.
Specification
|
ltem
|
PL-2
|
PL-3
|
PL-4
|
|
|
Dimension (mm) (X/Y/Z)
|
540/540/860
|
665/670/915
|
724/855/915
|
|
|
Measuring range (mm) (X/Y/Z)
|
200/100/150
|
300/200/200
|
400/300/200
|
|
|
Measuring accuracy (μm)
|
2.5 + L/100
|
2.5 + L/100
|
2.5 + L/100
|
|
|
Repeatabilty (μm)
|
2.5
|
2.5
|
2.5
|
|
|
Weight (kg)
|
150
|
200
|
255
|
|
|
lmage and measuring
|
CCD
|
1.3M pixel digital camera
|
||
|
Lens
|
Manual dented zoom lens 0.7-4.5X
|
|||
|
Magnification
|
18-195X (The value is for reference only and the actual magnification will change according to different combinations of camera and lens.)
|
|||
|
Field of view
|
8.1~1.3mm (The value is for reference only and the actual FOV will change according to different combinations of camera and lens.)
|
|||
|
Working distance (mm)
|
80
|
|||
|
Linear scale resolution (μm)
|
0.5
|
|||
|
Driving system
|
X and Y axis manual control
|
|||
|
Illumination
|
Programmable LED 8 section ring surface light, LED bottom parallel light (Optional coaxial light)
|
|||
Product Application
Aerospace Industry
Automotive Industry
Electronics Industry
