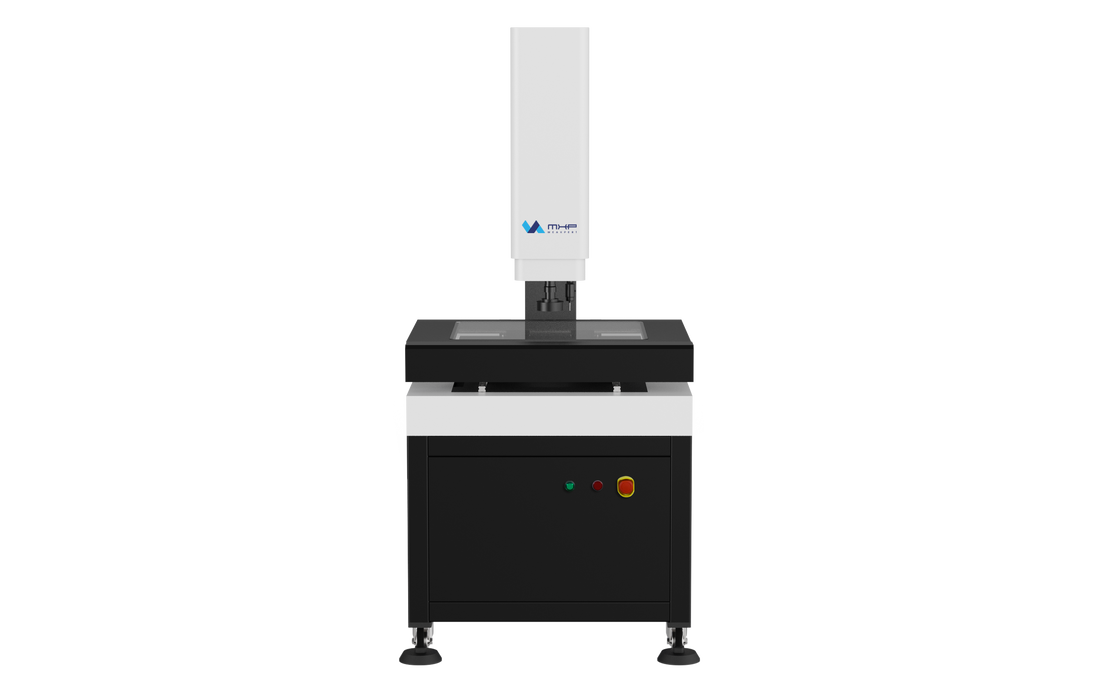

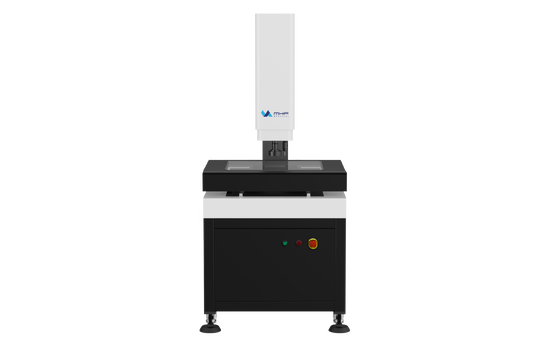

Marble Based CNC Vision Measuring Machine For Plastic Parts Quality Testing
Product Summary
MXP CNC Vision Measuring Machine - Mercury Series High-performance fully automatic vision measuring system designed for precision quality testing of plastic parts and complex components. Product Overview The Mercury Series represents advanced coordinate measuring technology with enhanced resolution ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
ME-3
Trading Properties
MOQ
≥1
unit price
US$11,000.00
payment method
L/C,D/P,T/T,Western Union,Money Gram
Product Details
Highlight:
vision measuring machine for plastic parts
,marble based vision measuring machine
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Weight(Kg):
400
CCD:
1.3m Pixel HD Giga Digital Camera (Optional 5m Pix
Lens:
Fully Automatic Zoom Objective 0.7-4.5X
Linear Scale Resolution:
0.5um
Repeatabilty(Um):
2.5um
Product Description
Detailed Specifications & Features
MXP CNC Vision Measuring Machine - Mercury Series
High-performance fully automatic vision measuring system designed for precision quality testing of plastic parts and complex components.
Product Overview
The Mercury Series represents advanced coordinate measuring technology with enhanced resolution and accelerated processing capabilities. This marble-based system enables comprehensive three-axis programmable inspection for manufacturing environments requiring high-volume precision measurement.
- Fully automatic programmable inspection with three-axis control
- Workpiece coordinate system matching through intuitive programming
- Memory, learning, and automatic programming for repetitive measurements
- Real-time on-site measurement execution with rapid processing
- Marble construction providing exceptional stability and durability
- Optimized for precision, efficiency, and long-term reliability
Technical Specifications
| Item | ME-3 | ME-4 | ME-5 | ME-6 |
|---|---|---|---|---|
| Dimension (mm) L/W/H | 650/950/1740 | 730/1070/1740 | 790/1130/1760 | 890/1370/1780 |
| Measuring Range (mm) X/Y/Z | 300/200/200 | 400/300/200 | 500/400/200 | 600/500/200 |
| Measuring Accuracy (μm) | 2 + L/100 | 2 + L/100 | 2.5 + L/100 | 2.5 + L/100 |
| Repeatability (μm) | 2 | 2 | 2.5 | 2.5 |
| Weight (kg) | 400 | 500 | 600 | 700 |
Optical System Specifications
- CCD: 1.3M pixel digital camera
- Lens: Auto-zoom Lens 1~10X
- Magnification: 18~195X (varies by camera model)
- Field of View: 8.5 ~ 1.3mm (reference value)
- Working Distance: 80mm
- Linear Scale Resolution: 0.5μm (0.1μm optional)
- Driving System: CNC control with high-precision motor servo drive
- Control Options: Handle control, mouse/keyboard control
- Illumination: Programmable LED 8-section ring surface light, LED bottom parallel light
Industry Applications
Aerospace Industry
Automotive Industry
Electronics Industry
About MEAXPERT (MXP)
MEAXPERT (MXP) comprises experienced metrology professionals with over a decade of industry expertise, dedicated to developing accurate, reliable, and affordable vision measurement systems.
Our Mission
We believe in simplicity and transparency, offering clear pricing and terms for both vision measurement systems and services to eliminate lengthy negotiations and ensure efficiency.
Innovation and Development
Through substantial investment in R&D and dedicated software/hardware teams, we continuously enhance system stability, efficiency, and usability while developing specialized modules for diverse industry applications.
Commitment to Quality
We pursue perfection through meticulous attention to detail, from material inspection and process control to rigorous reliability testing and precise calibration before shipment.
