High Precision CNC Video Measuring Machine One Touch with CCD Mxp Mars Series

Product Details:

Place of Origin:	China
Brand Name:	MEAXPERT
Model Number:	Mars 190

Payment & Shipping Terms:

Minimum Order Quantity:	≥1
Price:	US$18,000.00-22,000.00
Packaging Details:	Wooden Case
Delivery Time:	30days
Payment Terms:	L/C,D/P,T/T,Western Union,Money Gram

Contact Now

Detailed Product Description

After-sales Service:	Online Service	Warranty Period:	12 Months
Mode Of Operation:	CNC	Weight(Kg):	--
Measuring Range(mm)(X/Y/Z):	--	OEM:	--
Lens:	--	Driving System:	CMM
Measurement Accuracy:	VMM
Highlight:	One Touch Video Measuring Machine , high precision video measuring instrument , CNC image measuring machine with CCD

Product Description

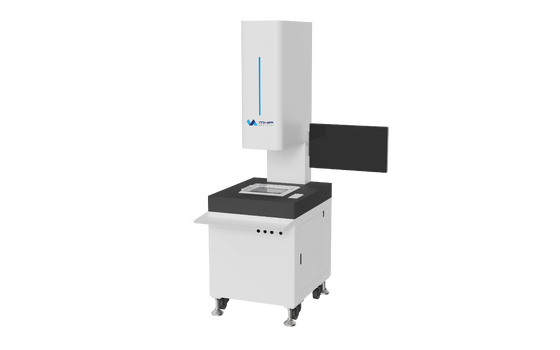

Mars series Vision Measuring Machine

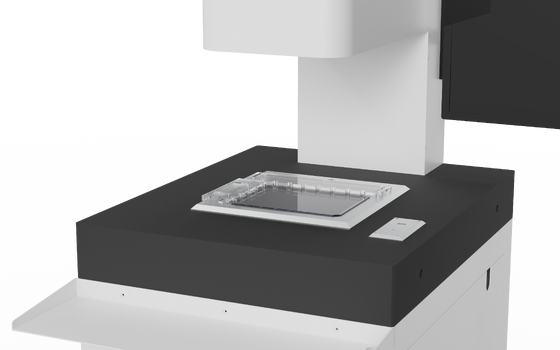

The one-touch measuring instrument is named "Mars" to highlight the planet's harsh environment—dust storms, extreme cold, and high radiation—and its spirit of tenacious exploration. This resilience aligns with the industrial reliability demands of this imaging measuring device. Its marble base and high-precision guide rail design withstand workshop vibrations and temperature fluctuations to maintain measurement accuracy.

Equipped with digital image archiving, an ultra-high-definition CCD, and an optical zoom lens, the device clearly identifies micron-level defects and minute scratches on workpieces—the "microscopic battlefield"—providing traceable quality data for industrial production.It empowers manufacturing to make the shift from "experience-based judgment" to "data-driven decision-making," earning its reputation as the "Mars rover of the industrial world."

Specification

ltem	MARS 100	MARS 190
Dimension (mm) (X/Y/Z)	540/830/1080	640/830/1080
Measuring range (mm) (X/Y/Z)	200/200/200	300/200/200
Measuring accuracy (μm)	2.5 + L/100	2.5 + L/100
Repeatabilty (μm)	2.5	2.5
Weight (kg)	140	180
CCD	1.3M pixel digital camera
Lens	Manual dented zoom lens with magnification signal feedback 0.7-4.5X
Magnification	24.7-160X (The value is for reference only and the actual magnification will change according to different combinations of camera and lens.)
Field of view	8.5~1.3mm (The value is for reference only and the actual FOV will change according to different combinations of camera and lens.)
Working distance (mm)	80
Linear scale resolution (μm)	0.5
Driving system	X and Y axis manual control, Z axis CNC full closed loop motion control (Including auto focus function)

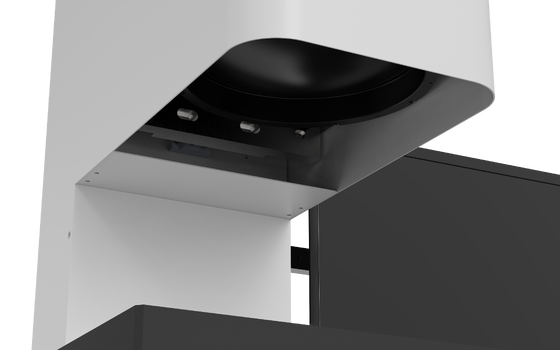

Illumination	Programmable LED 8 section ring surface light, LED bottom parallel light

Product Application

Aerospace Industry

Automotive Industry

Electronics Industry

Company Profile

Who is MEAXPERT (MXP)?

MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry, each bringing over a decade of experience to the table. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.

Our Mission

At MEAXPERT, we believe in simplicity and transparency. Our goal is to offer clear pricing and terms for both our vision measurement systems and services, eliminating the need for lengthy negotiations. When you choose Meaxpert, you choose clarity and efficiency.

Commitment to Quality

Perfection is our pursuit, even though perfection itself may be unattainable. We pay meticulous attention to every detail, from surface finishing to individual components. Our commitment to quality starts with rigorous material inspections before production, stringent process control during manufacturing, thorough reliability testing, and precise calibration before shipment.

Innovation and Development

We heavily invest in technology research and development, supported by our dedicated software and hardware teams. Our hardware is constantly improved through weekly R&D meetings, enhancing its stability, efficiency, and ease of use. On the software side, we focus on developing specialized modules tailored to the unique needs of various sub-industries, simplifying vision measurement system applications and addressing the industry's talent shortage.
