Precision Flexible Fixture Kits CNC Fixture for Measuring Tool Vmm Machine Inspection
Product Summary
Precision Flexible Fixture Kits for CNC & VMM Machine Inspection Product Description Vision Measurement Machine Fixtures The VMM fixtures are widely used in varies industries such as electronics, aerospace, automotive, plastic or medical care. It can be introduced to all sizes and models of VMM. ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
VMM Fixturing Kits 112pcs
Trading Properties
MOQ
≥1
unit price
US$355.00-415.00
payment method
L/C,T/T
Product Details
Highlight:
Vmm Machine Inspection Fixture Kits
,CNC Fixture for Measuring Tool
,Modular Design Fixture Kits
After-Sales Service:
Online Service
Color:
Gold
G.W.:
20kg
Packaging:
Aluminum Alloy Box
Other Options:
112
Use:
VMM
Product Description
Detailed Specifications & Features
Precision Flexible Fixture Kits for CNC & VMM Machine Inspection
Product Description
Vision Measurement Machine Fixtures
The VMM fixtures are widely used in varies industries such as electronics, aerospace, automotive, plastic or medical care. It can be introduced to all sizes and models of VMM. They are the tools which make your measuring process flexible,repeatable, and standardized. All components are made by precision manufacturing process and with anodise coating. Each part is with laser marking coding, so all the combination of the components can be repeatable for the subsequent inspections. Which helps to eliminate the variation of different parts or operators, and increasing the measuring accuracy and repeatability.
Base Plate size
Details Description
Modular Fixtures-VMM
Base Plate Size
300*200mm, M4 Thread holes
300*200mm, M4 Thread holes
400*300mm, M4 Thread holes
300*300mm, M4 Thread holes
400*400mm, M4 Thread holes
Other customized sizes

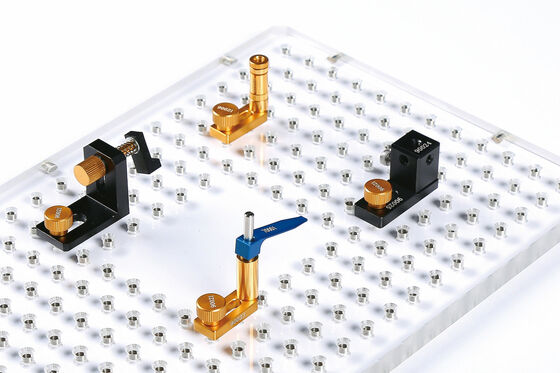

The VMM fixtures are designed as a complete components kit. We have studied most of the VMM measuring application from our experience of VMM users, and have taken reference to different types of parts, to develop the fixtures kit components.
The kit is including supporting, pressing, and holding components, which allow the user to manage the fixturing easily and no special tools as required. Regardless of shapes or materials, user can easily find the fixturing solution during measuring process.
Specification
|
Product Name
|
Mark
|
QTY
|
|
Tenshion clamp
|
90001
|
4
|
|
Short Wire tension clamp
|
90002
|
4
|
|
Long Wire tension clamp
|
90003
|
4
|
|
Short tension clamp support
|
90004
|
8
|
|
Long tension clamp support
|
90005
|
3
|
|
6*5mm standoff
|
90006
|
3
|
|
6*10mm standoff
|
90007
|
6
|
|
6*25mm standoff
|
90008
|
6
|
|
9*5mm standoff
|
90009
|
3
|
|
9*10mm standoff
|
900010
|
6
|
|
9*20mm standoff
|
900011
|
6
|
|
9*25mm standoff
|
900012
|
6
|
|
12*10mm standoff
|
900013
|
6
|
|
12*25mm standoff
|
900014
|
6
|
|
6*10mm Flat standoff
|
900015
|
4
|
|
9*10mm Flat standoff
|
900016
|
4
|
|
12*10mm Flat standoff
|
900017
|
4
|
|
9mm adjustable standoff
|
900018
|
2
|
|
6mm ball type standoff
|
900019
|
2
|
|
Muti direction adaptor
|
900020
|
2
|
|
Tension sopport screw
|
900021
|
2
|
|
L blcoks
|
900022
|
1
|
|
Ajustable slide
|
900023
|
4
|
|
Direction switching block
|
900024
|
1
|
|
Direction switching block base
|
900025
|
1
|
|
Tension sopport
|
900026
|
1
|
|
M4-M8 adaptor
|
900027
|
4
|
|
Transparent adjustable slide
|
900028
|
8
|
|
M3 srew driver
|
900029
|
1
|
|
Components packing
|
|
|
|
M4*10 screws (20 pcs)
|
|
|
|
Packing Suitcase
|
|
|
Product Application
Aerospace Industry
Automotive Industry
Electronics Industry
Company Profile
Who is MEAXPERT (MXP)?
MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry, each bringing over a decade of experience to the table. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.
Our Mission
At MEAXPERT, we believe in simplicity and transparency. Our goal is to offer clear pricing and terms for both our vision measurement systems and services, eliminating the need for lengthy negotiations. When you choose Meaxpert, you choose clarity and efficiency.
Innovation and Development
We heavily invest in technology research and development, supported by our dedicated software and hardware teams. Our hardware is constantly improved through weekly R&D meetings, enhancing its stability, efficiency, and ease of use. On the software side, we focus on developing specialized modules tailored to the unique needs of various sub-industries, simplifying vision measurement system applications and addressing the industry's talent shortage.
Commitment to Quality
Perfection is our pursuit, even though perfection itself may be unattainable. We pay meticulous attention to every detail, from surface finishing to individual components. Our commitment to quality starts with rigorous material inspections before production, stringent process control during manufacturing, thorough reliability testing, and precise calibration before shipment.
