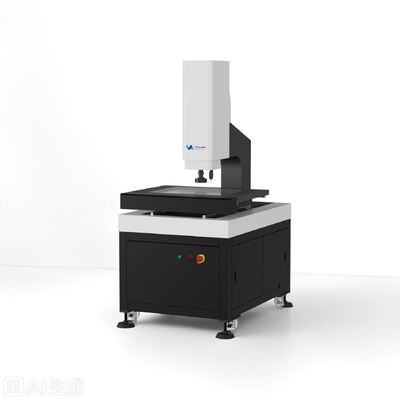

Precision Video Measurement System Fully Automatic For Industrial Level Measuring
Product Summary
High Precision Mercury Laser Measurement Machine Industrial-grade coordinate measuring machine for precision component inspection and quality control. Fully Automatic Vision Measuring Machine The Mercury Series is a high-performance, fully automatic marble-based coordinate measuring machine ...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
ME-3
Trading Properties
MOQ
≥1
unit price
US$13,000.00-15,000.00
payment method
L/C,D/P,T/T,Western Union,MoneyGram
Product Details
Highlight:
Precision Video Measurement System
,CNC control Video Measurement System
,Video Measurement System Fully Automatic
After-Sales Service:
Online Service
Warranty Period:
12 Months
Mode Of Operation:
CNC
Weight(Kg):
400
Lens:
Fully Automatic Zoom Objective 0.7-4.5X
CCD:
1.3m Pixel HD Giga Digital Camera (Optional 5m Pix
Linear Scale Resolution:
0.5um
Repeatabilty(Um):
2.5um
Product Description
Detailed Specifications & Features
High Precision Mercury Laser Measurement Machine
Industrial-grade coordinate measuring machine for precision component inspection and quality control.
Fully Automatic Vision Measuring Machine
The Mercury Series is a high-performance, fully automatic marble-based coordinate measuring machine featuring enhanced resolution and faster processing speeds. This powerful system enables three-axis fully automatic programmable inspection with workpiece coordinate system matching through programming.
- Automatic execution of measurement procedures
- Memory, learning, and automatic programming capabilities for repetitive workpieces
- Rapid and accurate real-time on-site measurements
- Marble construction for exceptional stability, durability, and low maintenance
- Perfect balance of precision, efficiency, and long-term reliability
- Core quality control tool for manufacturing complex precision components
Technical Specifications
| Item | ME-3 | ME-4 | ME-5 | ME-6 |
|---|---|---|---|---|
| Dimension (mm) (L/W/H) | 650/950/1740 | 730/1070/1740 | 790/1130/1760 | 890/1370/1780 |
| Measuring range (mm) (X/Y/Z) | 300/200/200 | 400/300/200 | 500/400/200 | 600/500/200 |
| Measuring accuracy (μm) | 2 + L/100 | 2 + L/100 | 2.5 + L/100 | 2.5 + L/100 |
| Repeatability (μm) | 2 | 2 | 2.5 | 2.5 |
| Weight (kg) | 400 | 500 | 600 | 700 |
Additional Specifications:
CCD: 1.3M pixel digital camera
Lens: Auto-zoom Lens 1~10X
Magnification: 18~195X (varies by camera model)
Field of view: 8.5 ~ 1.3mm (reference value)
Working distance: 80mm
Linear scale resolution: 0.5μm (0.1μm optional)
Driving system: CNC control with high-precision motor servo drive; Handle, mouse/keyboard control
Illumination: Programmable LED 8 section ring surface light, LED bottom parallel light
CCD: 1.3M pixel digital camera
Lens: Auto-zoom Lens 1~10X
Magnification: 18~195X (varies by camera model)
Field of view: 8.5 ~ 1.3mm (reference value)
Working distance: 80mm
Linear scale resolution: 0.5μm (0.1μm optional)
Driving system: CNC control with high-precision motor servo drive; Handle, mouse/keyboard control
Illumination: Programmable LED 8 section ring surface light, LED bottom parallel light
Industry Applications
Aerospace Industry
Precision measurement for aircraft components and assemblies
Precision measurement for aircraft components and assemblies
Automotive Industry
Quality control for automotive parts and manufacturing processes
Quality control for automotive parts and manufacturing processes
Electronics Industry
High-precision inspection of electronic components and PCBs
High-precision inspection of electronic components and PCBs
About MEAXPERT (MXP)
Our Expertise
MEAXPERT (MXP) is a collective of passionate professionals in the Metrology Industry, each bringing over a decade of experience. Our mission is to develop vision measurement systems that are accurate, reliable, fast, and affordable.
Our Mission
We believe in simplicity and transparency, offering clear pricing and terms for both our vision measurement systems and services. When you choose Meaxpert, you choose clarity and efficiency without lengthy negotiations.
Innovation and Development
We heavily invest in technology research and development with dedicated software and hardware teams. Our hardware undergoes continuous improvement through weekly R&D meetings, enhancing stability, efficiency, and ease of use. Our software focuses on specialized modules tailored to unique industry needs.
Commitment to Quality
We pursue perfection through meticulous attention to every detail, from surface finishing to individual components. Our quality commitment includes rigorous material inspections, stringent process control, thorough reliability testing, and precise calibration before shipment.
