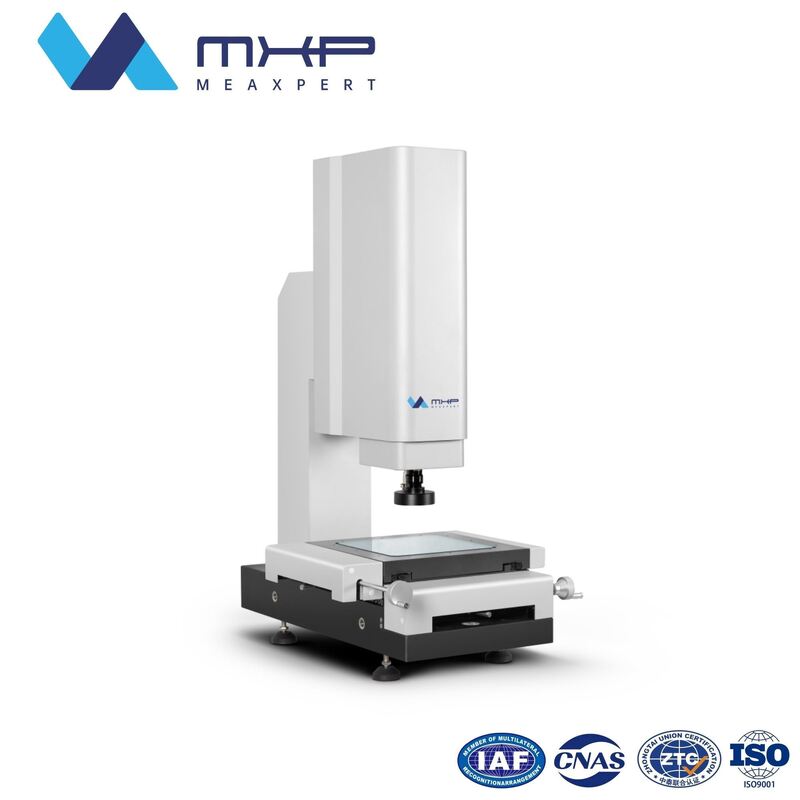

2D Optical Coordinate Measuring Machine For Exact Industrial Dimensional Analysis
Product Summary
Innovative 2D Measurement System For Exact Industrial Dimensional Analysis Semi-auto Vision Measuring Machine PLUTO Series Vision Measuring System The PLUTO Series is engineered with high-accuracy linear guideways that deliver exceptional dynamic performance and user experience. Featuring 3-axis 0...
Basic Properties
country of origin
China
Brand Name
MEAXPERT
PRODUCT MODEL
PL-2
Trading Properties
MOQ
≥1
unit price
US$3,800.00-4,600.00
payment method
Western Union,T/T,D/P,L/C,Money Gram
Product Details
Highlight:
2D measurement system for industrial analysis
,2D Optical Coordinate Measuring Machine
,industrial dimensional analysis system
After-Sales Service:
Online Service
Mode Of Operation:
CNC
Weight(Kg):
140
Measuring Range(Mm)(X/Y/Z):
200*200*200
Linear Scale Resolution:
0.5um
Lens:
Manual Dented Zoom Lens 0.7-4.5X (Optional Manual
Driving System:
X/Y/Z Axis Manual Control
Product Description
Detailed Specifications & Features
Innovative 2D Measurement System For Exact Industrial Dimensional Analysis
Semi-auto Vision Measuring Machine
PLUTO Series Vision Measuring System
The PLUTO Series is engineered with high-accuracy linear guideways that deliver exceptional dynamic performance and user experience. Featuring 3-axis 0.0005mm high-resolution linear transducers and powerful programmable measuring software, this system enables comprehensive 2D and 3D measurement capabilities in a single machine.
- Advanced software calculates offset between optical lens and touch probe
- All measurement results maintained within unified coordinate system
- Measurement outputs convertible to 3D drawings for reverse engineering
Technical Specifications
| Item | PL-2 | PL-3 | PL-4 |
|---|---|---|---|
| Dimension (mm) (X/Y/Z) | 540/540/860 | 665/670/915 | 724/855/915 |
| Measuring range (mm) (X/Y/Z) | 200/100/150 | 300/200/200 | 400/300/200 |
| Measuring accuracy (μm) | 2.5 + L/100 | 2.5 + L/100 | 2.5 + L/100 |
| Repeatability (μm) | 2.5 | 2.5 | 2.5 |
| Weight (kg) | 150 | 200 | 255 |
Imaging & Measurement System
- Image and measuring: CCD with 1.3M pixel digital camera
- Lens: Manual dented zoom lens 0.7-4.5X
- Magnification: 18-195X (reference value, actual varies with camera/lens combination)
- Field of view: 8.1~1.3mm (reference value, actual varies with camera/lens combination)
- Working distance: 80mm
- Linear scale resolution: 0.5μm
- Driving system: X and Y axis manual control
- Illumination: Programmable LED 8-section ring surface light, LED bottom parallel light (Optional coaxial light)
Industry Applications
Aerospace Industry
Automotive Industry
Electronics Industry
About MEAXPERT (MXP)
MEAXPERT (MXP) comprises passionate metrology professionals with over a decade of industry experience. Our mission focuses on developing vision measurement systems that deliver accuracy, reliability, speed, and affordability.
Our Mission
We champion simplicity and transparency, offering clear pricing and terms for both our vision measurement systems and services. Choosing MEAXPERT means selecting clarity and operational efficiency without lengthy negotiations.
Innovation and Development
Our substantial investment in technology R&D is supported by dedicated software and hardware teams. Through weekly R&D meetings, we continuously enhance hardware stability, efficiency, and usability. Our software development focuses on specialized modules tailored to unique sub-industry requirements, simplifying vision measurement applications and addressing industry talent shortages.
Commitment to Quality
While perfection may be unattainable, we relentlessly pursue it. We meticulously attend to every detail—from surface finishing to individual components. Our quality commitment begins with rigorous material inspections before production, continues with stringent process control during manufacturing, and concludes with thorough reliability testing and precise calibration before shipment.
