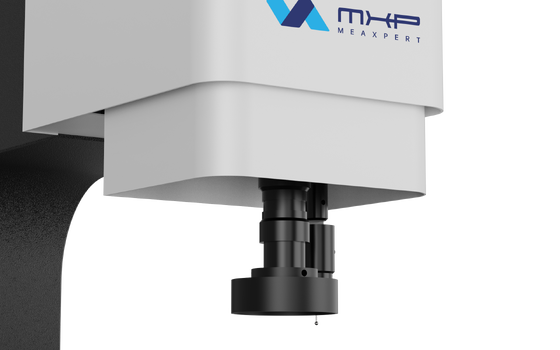

CNC Optical Coordinate Measuring Machine (MERCURY Series) for Auto Parts Inspection
Fully Automatic Vision Measuring Machine
The Mercury Series is a high-performance, fully automatic marble-based coordinate measuring machine featuring enhanced resolution and faster processing speeds. This powerful system enables three-axis fully automatic programmable inspection with automatic coordinate system matching and measurement execution.
For repetitive workpieces, the system offers memory, learning, and automatic programming capabilities to rapidly complete real-time on-site measurements with exceptional accuracy. The marble construction provides outstanding stability, durability, and low maintenance costs, perfectly balancing precision, efficiency, and long-term reliability.
This machine serves as the core quality control tool for manufacturing large volumes of complex, precision components across various industries.
Technical Specifications
| Item |
ME-3 |
ME-4 |
ME-5 |
ME-6 |
| Dimension (mm) (L/W/H) |
650/950/1740 |
730/1070/1740 |
790/1130/1760 |
890/1370/1780 |
| Measuring range (mm) (X/Y/Z) |
300/200/200 |
400/300/200 |
500/400/200 |
600/500/200 |
| Measuring accuracy (μm) |
2 + L/100 |
2 + L/100 |
2.5 + L/100 |
2.5 + L/100 |
| Repeatability (μm) |
2 |
2 |
2.5 |
2.5 |
| Weight (kg) |
400 |
500 |
600 |
700 |
Optical System Specifications
- CCD: 1.3M pixel digital camera
- Lens: Auto-zoom Lens 1~10X
- Magnification: 18~195X (varies by camera model; actual magnification subject to measured data)
- Field of view: 8.5 ~ 1.3mm (reference value; actual FOV varies with camera and lens combinations)
- Working distance: 80mm
- Linear scale resolution: 0.5μm (0.1μm optional)
Control & Illumination System
- Driving system: CNC control with high-precision motor servo drive; Handle control, mouse/keyboard control
- Illumination: Programmable LED 8-section ring surface light, LED bottom parallel light
Product Applications
Aerospace Industry
Automotive Industry
Electronics Industry
